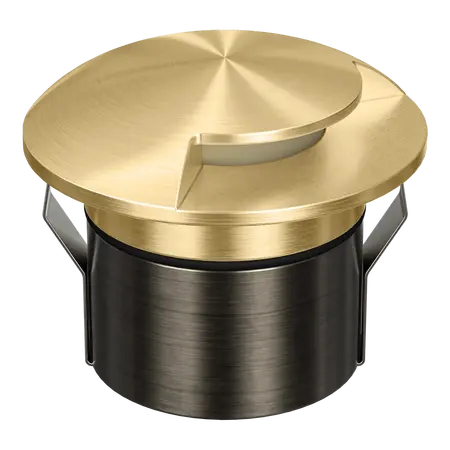

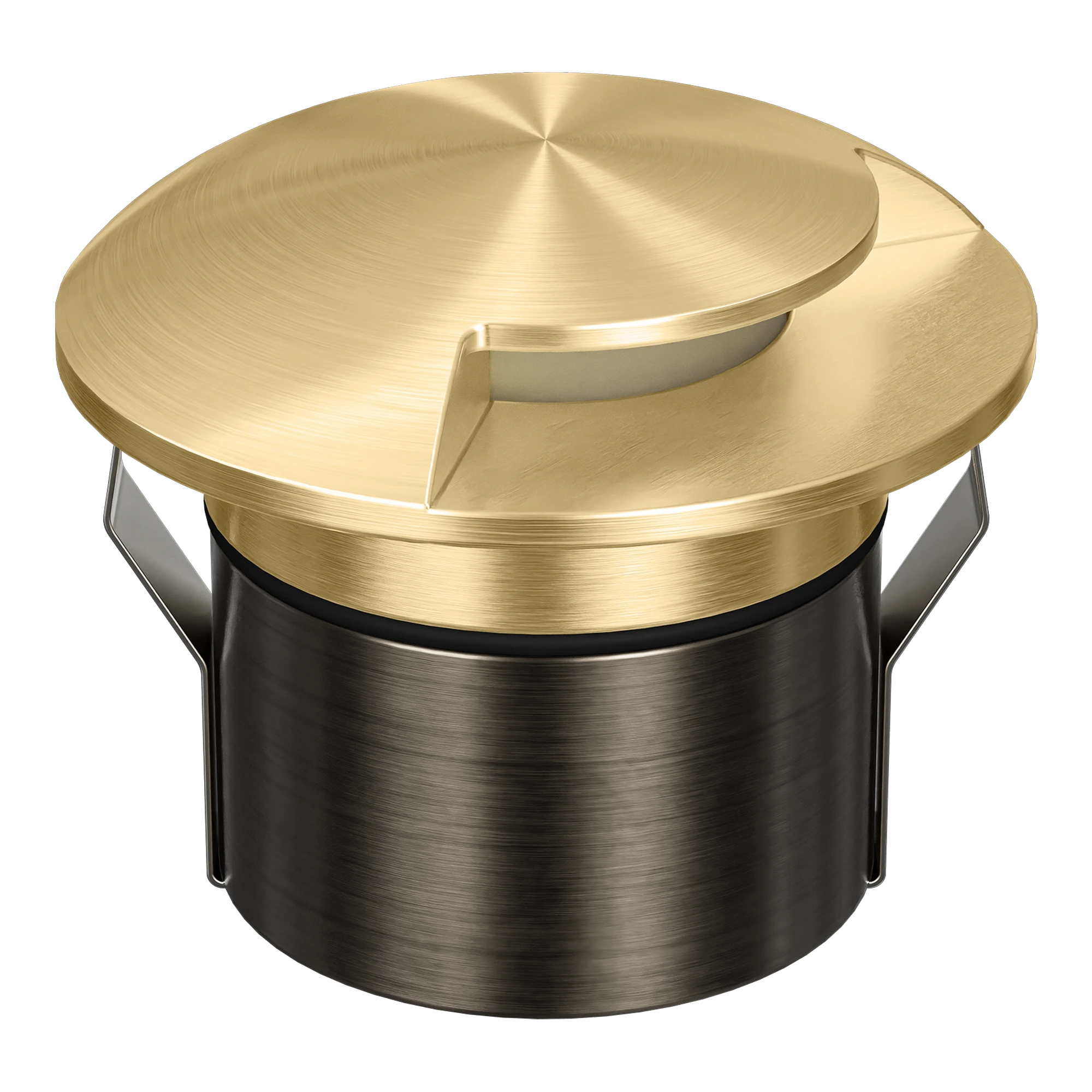

Emit Deck Light 85mm 4/6W Tri-Colour 12/24V 1-Way Brass Domus
Domus Emit 85mm LED deck light, 4/6W, tri-colour, 36 deg beam, 12/24V DC, 1-way fascia, brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emit 85 LED Inground Light, Emit 85 Recessed Deck Light, Domus Inground Uplight, Outdoor LED Deck Light
Technical Specifications
- Light Type: Integrated LED inground and deck light
- Power: 4/6W; current product data specifies 6W
- Input Voltage: 12/24V DC constant voltage
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Beam Angle: 36° standard; optional 19° and 60° lenses
- LED Type: CREE
- Colour Rendering Index: ≥90
- Luminous Output: 29 lm at 3000K, 33 lm at 4000K, 32 lm at 5500K
- Ingress Protection: IP67
- Impact Protection: IK10
- Load Rating: Up to 1500 kg drive-over
- Dimming: Non-dimmable
- Lifespan: 50,000 hours
- Cut-out: 65 mm without canister or 82 mm with canister
- Driver Requirement: 12/24V DC constant-voltage LED driver, wired in parallel
- Classification: Class III
- Finish: Brass
- Dimensions (H x L x W): 110mm x 85mm x 85mm
- Weight: 0.5 kg
Key Features
- 1-way fascia for directional feature lighting
- Selectable tri-colour white light output
- Suitable for recessed deck, pathway, stair and landscape installations
- IP67 protection for outdoor inground applications
- IK10 impact rating and drive-over construction
- Standard 36° beam with optional beam-control lenses
- Compatible with optional honeycomb, linear lens and opal diffuser accessories
- Low-voltage 12/24V DC operation
- Requires a separate compatible LED driver
- Brass fascia finish
Professional Installation Requirements
- Installation must be performed by a professional or licensed electrician. Use a compatible 12/24V DC constant-voltage LED driver, connect the fitting in parallel, and follow the manufacturer's installation instructions and applicable Australian wiring requirements.
Applications
- Deck and timber landscape lighting
- Pathway and stair illumination
- Garden and landscape feature lighting
- Architectural accent lighting
- Recessed inground uplighting
- Drive-over outdoor lighting installations
Standards & Compliance
- Applicable luminaire safety requirements: AS/NZS 60598.1
- Applicable requirements for recessed luminaires: AS/NZS 60598.2.2
- Electrical installation should comply with AS/NZS 3000 Wiring Rules
Environmental Benefits
- LED technology provides lower energy consumption than equivalent conventional light sources
- 50,000-hour rated lifespan can reduce replacement frequency and material waste
- Low-voltage 12/24V DC operation supports efficient outdoor lighting systems
- Brass and metal components can be recovered for recycling at end of service life
Warranty Information
5-year replacement warranty stated by Domus for the EMIT-85 series. Warranty eligibility is subject to Domus terms, including installation by a licensed electrician, correct installation, suitable IP-rated location and use of compatible products.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
