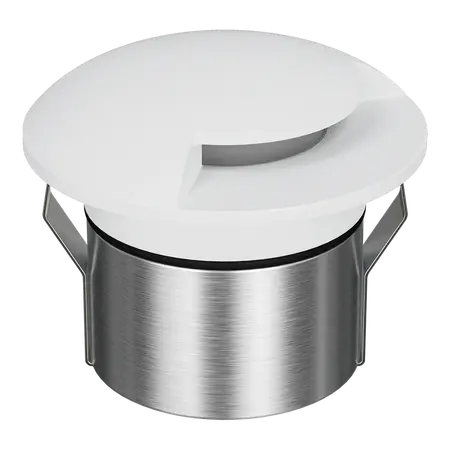

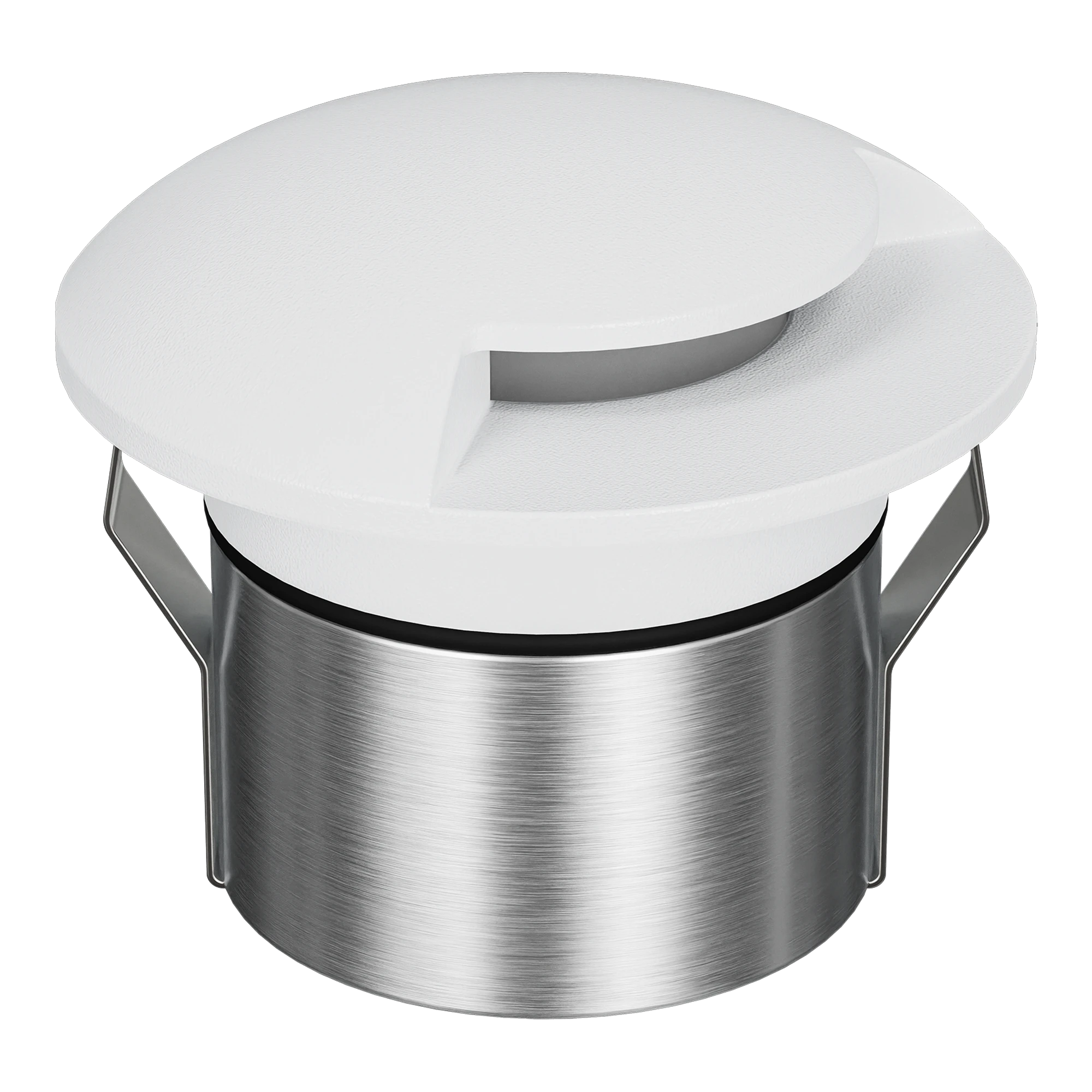

Emit Deck Light 85mm 4/6W Tri-Colour 12/24V 1-Way White Domus
Domus Emit 85mm LED deck light, 4/6W, tri-colour, 36 deg beam, 12/24V DC, 1-way fascia, white. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emit-85 1-Way Inground Light, LED Deck Light, Recessed Inground Light, Tri-Colour Landscape Light
Technical Specifications
- Variant: EMIT-85-TRIO-WHT
- Light Type: Tri-colour selectable LED inground and deck light
- Fascia: 1-way, white
- Power: 6W
- Input Voltage: 12/24V DC constant voltage
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Luminous Flux: 29lm at 3000K, 33lm at 4000K, 32lm at 5500K
- LED Type: CREE
- Colour Rendering Index: CRI ≥90
- Ingress Protection: IP67
- Impact Protection: IK10
- Dimming: No
- Rated Life: 50,000 hours
- Load Rating: 1,500kg drive-over
- Cutout: Ø65mm without canister or Ø82mm with canister
- Driver Requirement: 12/24V DC constant-voltage LED driver, wired in parallel
- Operating Temperature: -20°C to 40°C
- Class: Class III
- Dimensions (H x L x W): 80mm x 85mm x 85mm
- Weight: 0.8 kg
Key Features
- Selectable warm white, neutral white and cool white colour temperatures
- 1-way fascia directs light for pathway, stair and feature lighting
- IP67-rated construction for outdoor and inground applications
- IK10 impact rating and 1,500kg drive-over load rating
- Standard 36° beam with optional 19° and 60° lenses
- High colour rendering with CRI ≥90
- White finish suits residential and architectural deck installations
- Optional opal diffuser, linear lens and honeycomb accessories available
Professional Installation Requirements
- Installation must be performed by a professional or licensed electrician. Use a compatible 12V or 24V DC constant-voltage LED driver, connect the luminaires in parallel and follow the manufacturer's installation instructions. ([domuslighting.com.au](https://www.domuslighting.com.au/wp-content/uploads/2026/08/EMIT-85-TRIO-Installation-Manual.pdf))
Applications
- Residential deck and patio lighting
- Pathway and stair illumination
- Landscape and garden feature lighting
- Architectural accent lighting
- Drive-over outdoor areas
- Feature walls, columns and hardscape installations
Standards & Compliance
- AS/NZS 60598.1:2017, general requirements and tests for luminaires - applicable product standard
- AS/NZS 60598.2.13:2013, particular requirements for ground recessed luminaires - applicable product category
- AS/NZS 3000:2018, Electrical installations Wiring Rules - applicable installation standard
Environmental Benefits
- LED technology provides lower operating energy consumption than traditional halogen deck lighting
- 50,000-hour rated life can reduce replacement frequency and associated waste
- Low-voltage 12/24V DC operation supports efficient extra-low-voltage landscape lighting systems
Warranty Information
5-year replacement warranty. Warranty eligibility is subject to the manufacturer's conditions, including licensed-electrician installation, proof of purchase and installation in accordance with Domus instructions. ([domuslighting.com.au](https://www.domuslighting.com.au/wp-content/uploads/2026/08/EMIT-85-TRIO-1WAY-Data-Sheet.pdf))
Available Now
Available through Domus Lighting and authorised Australian lighting distributors. ([domuslighting.com.au](https://www.domuslighting.com.au/where-to-buy/?utm_source=openai))
