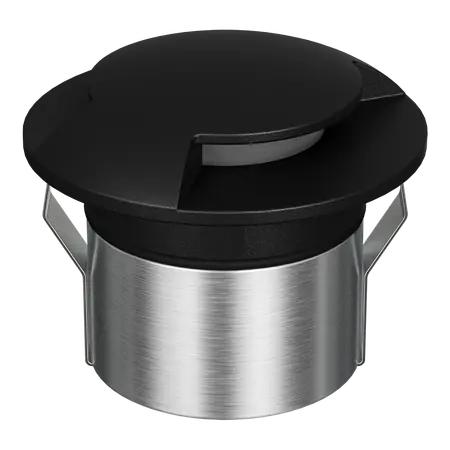

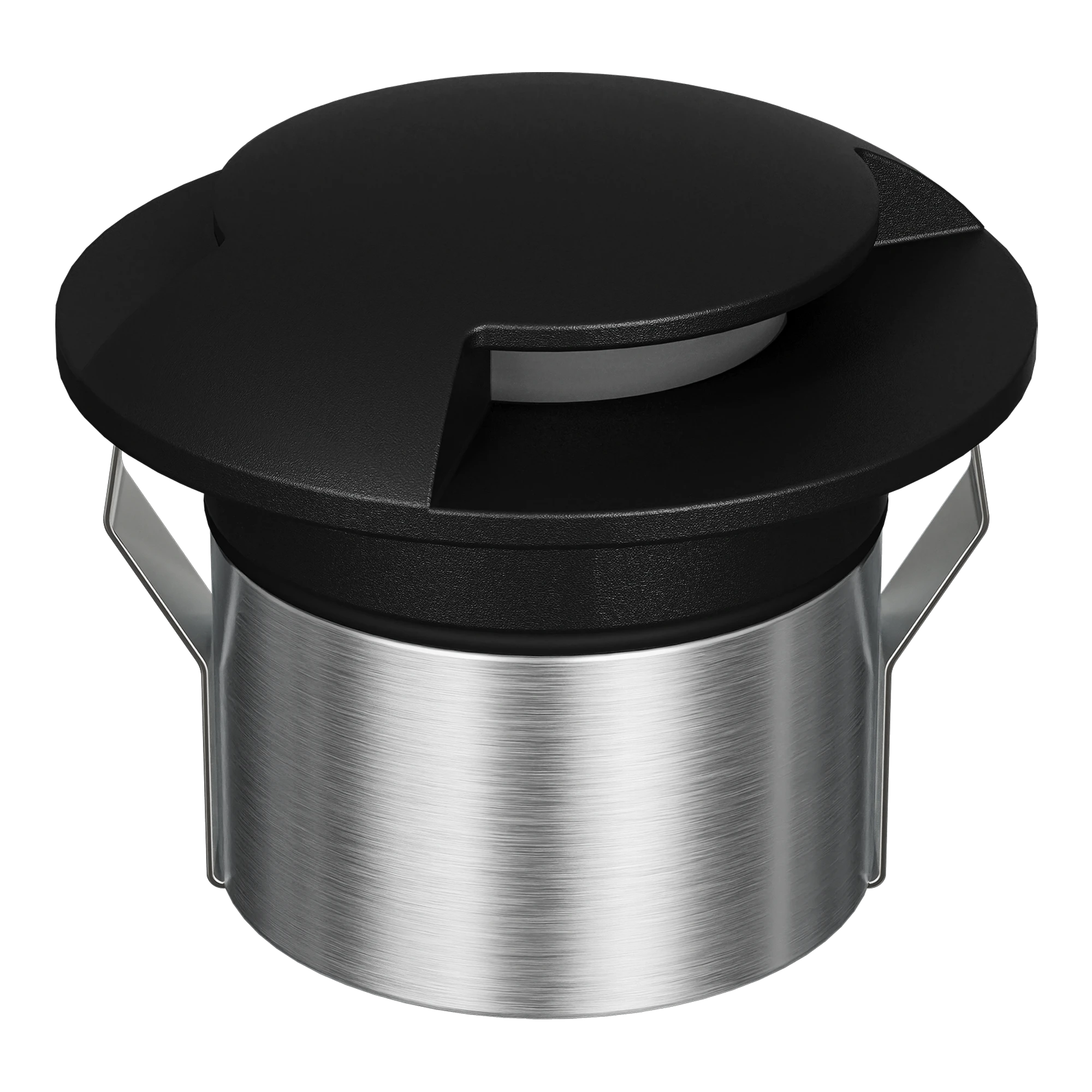

Emit Deck Light 85mm 4/6W Tri-Colour 12/24V 2-Way Black Domus
Domus Emit 85mm LED deck light, 4/6W, tri-colour, 36 deg beam, 12/24V DC, 2-way fascia, black. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emit-85 2-Way Inground Light, Domus Tri-Colour Deck Light, 85mm LED Inground Light, Multiway LED Deck Light
Technical Specifications
- Power: 4W/6W LED output
- Input Voltage: 12/24V DC constant voltage
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Luminous Flux: 52 lm at 3000K, 62 lm at 4000K, 60 lm at 5500K
- LED Type: CREE
- Colour Rendering Index: CRI ≥90
- Ingress Protection: IP67
- Impact Protection: IK10
- Load Rating: Up to 1500 kg drive-over
- Dimming: Not dimmable
- LED Lifespan: 50,000 hours
- Cut-out Diameter: 65 mm without canister or 82 mm with canister
- Driver Requirement: 12V or 24V DC constant-voltage LED driver; wire fittings in parallel
- Finish: Black fascia with stainless steel construction
- Operating Temperature: -20°C to 40°C
- Classification: Class III
- Dimensions (H x L x W): 110mm x 85mm x 85mm
- Weight: 0.45 kg
Key Features
- Tri-colour selection between warm white, neutral white and white light
- Two-way fascia directs light for feature and accent lighting
- IP67-rated construction for outdoor and inground applications
- IK10 impact protection and drive-over rating up to 1500 kg
- Compact 85 mm overall diameter for discreet installation
- 36° beam supplied as standard with optional beam-angle accessories
- Suitable for 12V or 24V DC constant-voltage LED drivers
- Long-life CREE LED source with CRI of at least 90
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Connect only to a compatible 12V or 24V DC constant-voltage LED driver, wire fittings in parallel, and follow the manufacturer's installation instructions and AS/NZS 3000 requirements.
Applications
- Residential and commercial deck lighting
- Landscape and garden feature lighting
- Pathway, stair and architectural accent lighting
- Drive-over inground lighting where the 1500 kg load rating is suitable
- Outdoor feature lighting around patios, pools and entertaining areas
Standards & Compliance
- AS/NZS 60598.2.2 - applicable requirements for recessed luminaires
- AS/NZS 3000 - applicable electrical installation requirements for low-voltage lighting systems
Environmental Benefits
- LED technology provides lower energy consumption than equivalent halogen lighting
- 50,000-hour LED lifespan can reduce replacement frequency and material waste
- 12/24V DC operation supports efficient low-voltage lighting systems
- Replaceable or separately specified driver arrangement can help extend system service life
Warranty Information
Domus Lighting 3-year replacement warranty for residential exterior deck and inground lights, and 12-month replacement warranty for commercial applications. Warranty requires installation by a licensed electrician and compliance with Domus installation requirements.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
