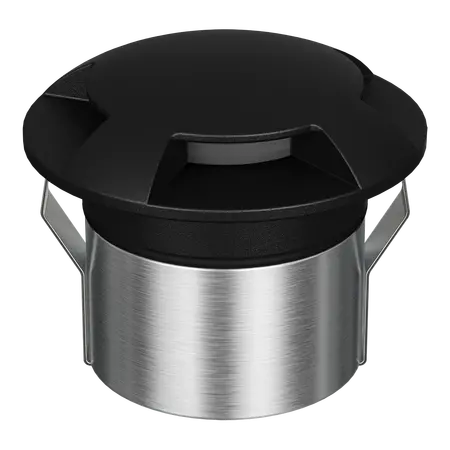

Emit Deck Light 85mm 4/6W Tri-Colour 12/24V 3-Way Black Domus
Domus Emit 85mm LED deck light, 4/6W, tri-colour, 36 deg beam, 12/24V DC, 3-way fascia, black. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-85-TRIO-3WAY, Domus Emit 85 Inground Light, 3-Way LED Inground Light, Tri-Colour Deck Light
Technical Specifications
- Power: 4W/6W variant; current Domus data sheet lists 6W
- Input Voltage: 12/24V DC constant voltage
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Luminous Output: 38 lm at 3000K; 43 lm at 4000K and 5500K
- LED Type: CREE
- Colour Rendering Index: CRI ≥90
- Ingress Protection: IP67
- Impact Protection: IK10
- Load Rating: 1500 kg drive-over
- Dimming: Non-dimmable
- LED Lifespan: 50,000 hours
- Cutout: 65 mm without canister or 82 mm with canister
- Driver Requirement: 12V or 24V DC constant-voltage LED driver; wire fittings in parallel
- Finish: Black
- Classification: Class III
- Dimensions (H x L x W): 80mm x 85mm x 85mm
- Weight: 0.5 kg
Key Features
- Three-way fascia directs light in three directions
- Selectable warm white, neutral white and cool white colour temperatures
- Suitable for decking, paving, pathways, stairs, landscape features and architectural lighting
- IP67-rated construction for outdoor and inground applications
- IK10 impact resistance and 1500 kg drive-over load rating
- Standard 36° beam with optional narrow and wide beam lenses
- Requires a separate 12/24V DC LED driver
- Optional honeycomb, linear lens and opal diffuser accessories
Professional Installation Requirements
- Installation must be completed by a licensed electrician. Use a compatible 12V or 24V DC constant-voltage LED driver, wire fittings in parallel, and install in accordance with the manufacturer's instructions and AS/NZS 3000. The driver is not included.
Applications
- Residential deck and entertaining areas
- Landscape and garden feature lighting
- Pathways, steps and stair lighting
- Architectural façade and feature lighting
- Inground lighting in timber decking, paving and other hard surfaces
- Drive-over outdoor lighting applications
Standards & Compliance
- AS/NZS 60598.2.2:2016, including Amendments 1 and 2, is the applicable standard for recessed luminaires of this type; product-specific certification was not stated in the available documentation. ([thenbs.com](https://www.thenbs.com/publicationindex/documents/details?DocId=330601&Pub=SA%2FSNZ))
- AS/NZS 3000 is applicable to the electrical installation and wiring of the luminaire and its low-voltage driver.
Environmental Benefits
- LED technology provides lower power consumption than equivalent halogen lighting
- 50,000-hour rated LED lifespan can reduce replacement frequency and associated waste
- Low-voltage 12/24V DC operation is suitable for efficient outdoor lighting systems
- Metal components can generally be recovered for recycling at end of service life
Warranty Information
Domus lists a 5-year replacement warranty for this EMIT-85 product family. Warranty eligibility requires purchase through an authorised distributor, installation by a licensed electrician and compliance with the installation instructions. ([domuslighting.com.au](https://www.domuslighting.com.au/product/emit-85-3-way/))
Available Now
Available through Domus Lighting and authorised Australian lighting distributors, subject to distributor stock.
