Trade Discount 25%

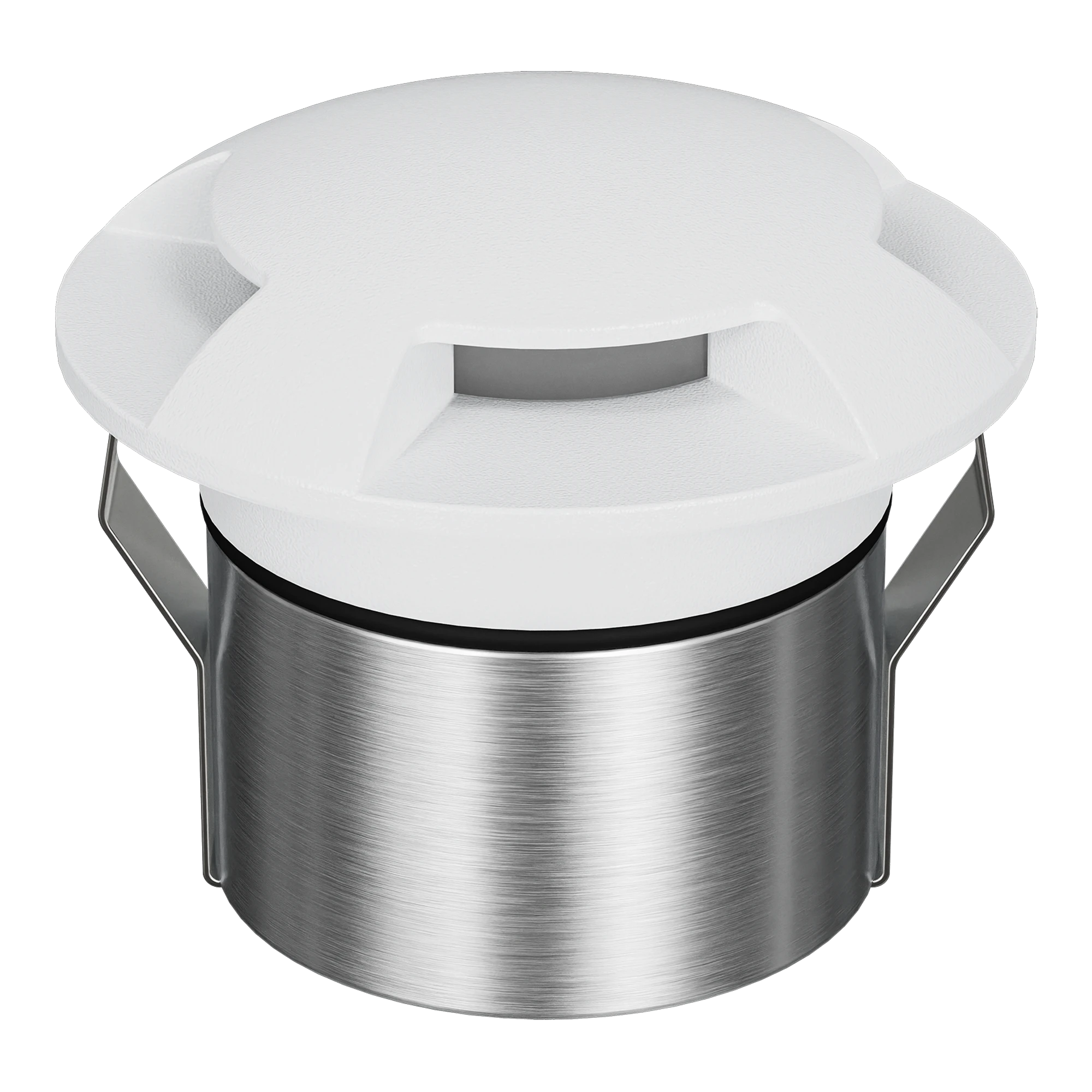

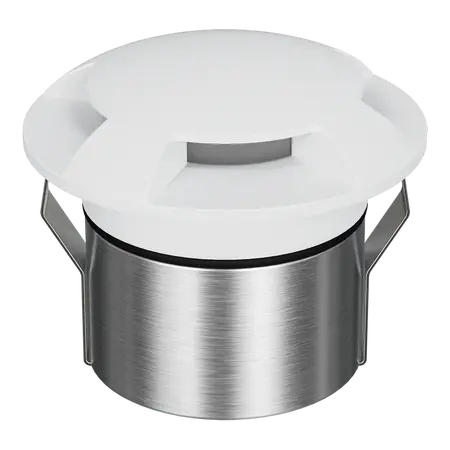

Emit Deck Light 85mm 4/6W Tri-Colour 12/24V 3-Way White Domus
Domus Emit 85mm LED deck light, 4/6W, tri-colour, 36 deg beam, 12/24V DC, 3-way fascia, white. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emit-85 3-Way LED Deck Light, Tri-Colour Inground Light, 85mm Multiway LED Light
Technical Specifications
- Model: EMIT-85-TRIO-3WAY
- Finish: White
- Light Type: Tri-colour LED inground and deck light
- Power: 6W
- Input Voltage: 12/24V DC constant voltage
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Luminous Output: 38 lm at 3000K; 43 lm at 4000K and 5500K
- Beam Angle: 36° standard; optional 19° and 60° lenses available
- LED Type: CREE
- Colour Rendering Index: CRI ≥90
- Ingress Protection: IP67
- Impact Protection: IK10
- Load Rating: 1500 kg drive-over
- Dimming: No
- Lifespan: 50,000 hours
- Electrical Classification: Class III
- Driver Requirement: Separate 12V or 24V DC constant-voltage LED driver; wire in parallel
- Dimensions (H x L x W): 80mm x 85mm x 85mm
- Weight: 0.45 kg
Key Features
- Three selectable white colour temperatures: 3000K, 4000K and 5500K
- 3-way fascia directs light across three sides for feature and accent lighting
- Compact 85mm overall diameter for discreet installation
- IP67-rated construction for suitable outdoor and inground applications
- IK10 impact rating and 1500 kg drive-over load rating
- High colour rendering with CRI ≥90
- Optional 19° and 60° beam lenses, honeycomb, linear lens and opal diffuser accessories
- Compatible with 12V and 24V DC constant-voltage LED drivers
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Use a compatible 12V or 24V DC constant-voltage LED driver, connect the fittings in parallel, and follow the manufacturer's installation instructions. The driver and low-voltage wiring must be selected and installed for the intended outdoor environment.
Applications
- Residential and commercial deck lighting
- Outdoor feature and accent lighting
- Landscape and garden lighting
- Pathway and stair lighting
- Inground architectural lighting
- Drive-over landscape and pedestrian areas
Standards & Compliance
- AS/NZS 60598.1: applicable general safety requirements for luminaires; product-specific compliance declaration was not located
- AS/NZS 60598.2.2: relevant recessed-luminaire requirements where applicable to the installation configuration
- AS/NZS 3000: applicable requirements for the associated electrical installation and wiring; installation by a licensed electrician is required
Environmental Benefits
- LED operation provides low 6W power consumption compared with equivalent higher-wattage conventional light sources
- 50,000-hour rated lifespan can reduce replacement frequency and associated material waste
- Low-voltage 12V/24V DC operation is suitable for efficient outdoor lighting systems when paired with an appropriately sized constant-voltage driver
- Metal components and electronic parts should be separated for appropriate recycling at end of life where local facilities accept them
Warranty Information
The product page states a 5-year replacement warranty. Domus Lighting's current warranty statement separately lists exterior deck and inground lights as covered for 3 years for residential applications and 12 months for commercial applications. Warranty eligibility requires installation by a licensed electrician and compliance with the installation instructions; confirm the applicable warranty at purchase.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors, subject to distributor stock and product availability.
