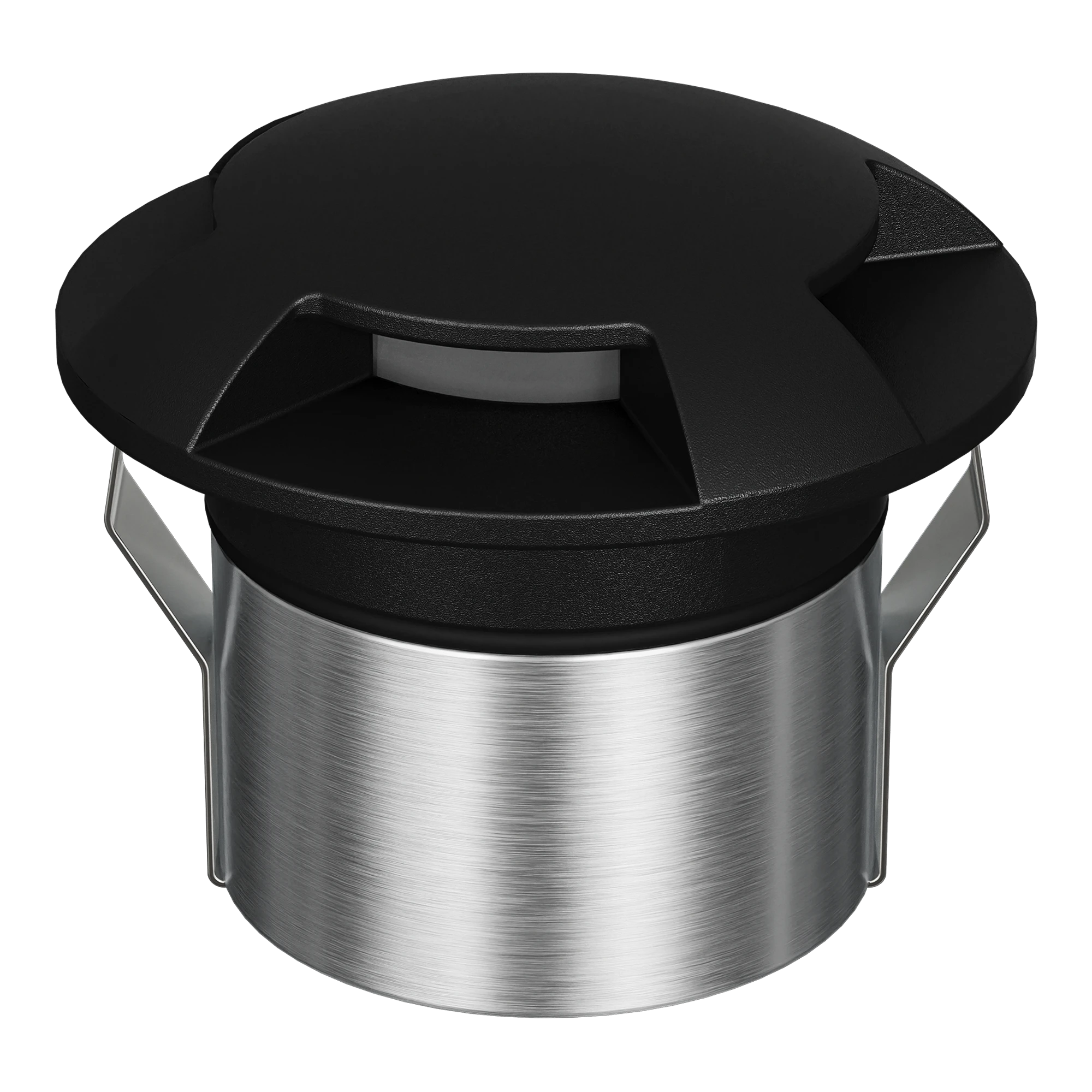

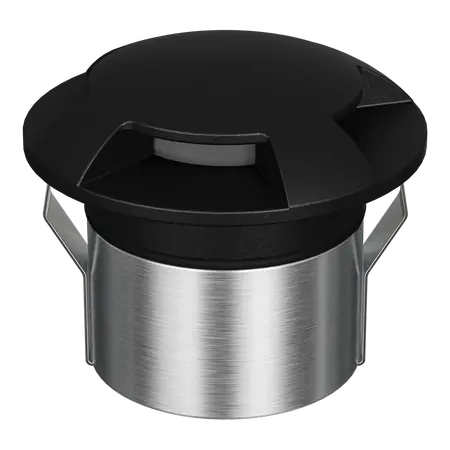

Emit Deck Light 85mm 4/6W Tri-Colour 12/24V 4-Way Black Domus
Domus Emit 85mm LED deck light, 4/6W, tri-colour, 36 deg beam, 12/24V DC, 4-way fascia, black. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus Emit 85mm Inground Light, 4-Way LED Deck Light, Tri-Colour Recessed Inground Light
Technical Specifications
- Power: 4/6W LED
- Input Voltage: 12/24V DC constant voltage
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Ingress Protection: IP67
- Impact Protection: IK10
- LED Type: CREE
- Colour Rendering Index: CRI ≥90
- Rated Life: 50,000 hours
- Load Rating: 1500kg drive-over
- Classification: Class III
- Dimming: No
- Driver Requirement: 12/24V DC constant-voltage LED driver; wire fittings in parallel
- Cutout: 65mm without cannister or 82mm with cannister
- Finish: Black
- Fascia: 4-way
- Operating Temperature: -20°C to 40°C
- Dimensions (H x L x W): 145mm x 85mm x 85mm
- Weight: 0.8 kg
Key Features
- Selectable tri-colour output for warm white, neutral white or white light
- Four-way fascia distributes light in four directions
- 36° beam angle supplied as standard
- IP67-rated construction for outdoor and inground applications
- IK10 impact resistance and 1500kg drive-over load rating
- Compatible with 12V or 24V DC constant-voltage LED drivers
- Optional lenses, diffuser and honeycomb accessories available
- Integrated CREE LED with long rated service life
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Connect to a suitable 12V or 24V DC constant-voltage LED driver, wire fittings in parallel, and install in accordance with the manufacturer's instructions and AS/NZS 3000:2018.
Applications
- Deck and patio lighting
- Driveway and pathway illumination
- Garden and landscape feature lighting
- Stair and step lighting
- Architectural accent lighting
- Outdoor inground lighting
- Commercial landscape and hospitality projects
Standards & Compliance
- AS/NZS 3000:2018 Electrical installations - installation and wiring requirements
Environmental Benefits
- LED technology provides lower energy consumption than conventional halogen lighting
- Rated 50,000-hour service life can reduce replacement frequency and material waste
- Metal construction and fascia components can be recycled at end of service life
- 12/24V DC operation supports use with efficient low-voltage LED power supplies
Warranty Information
5-year replacement warranty stated on the Domus EMIT-85 tri-colour product datasheet. Warranty eligibility requires installation by a licensed electrician and compliance with Domus installation instructions.
Available Now
Available through Domus Lighting and authorised Australian lighting retailers, electrical wholesalers and distributors.
