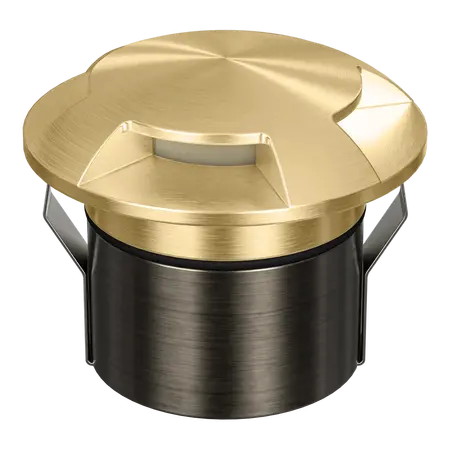

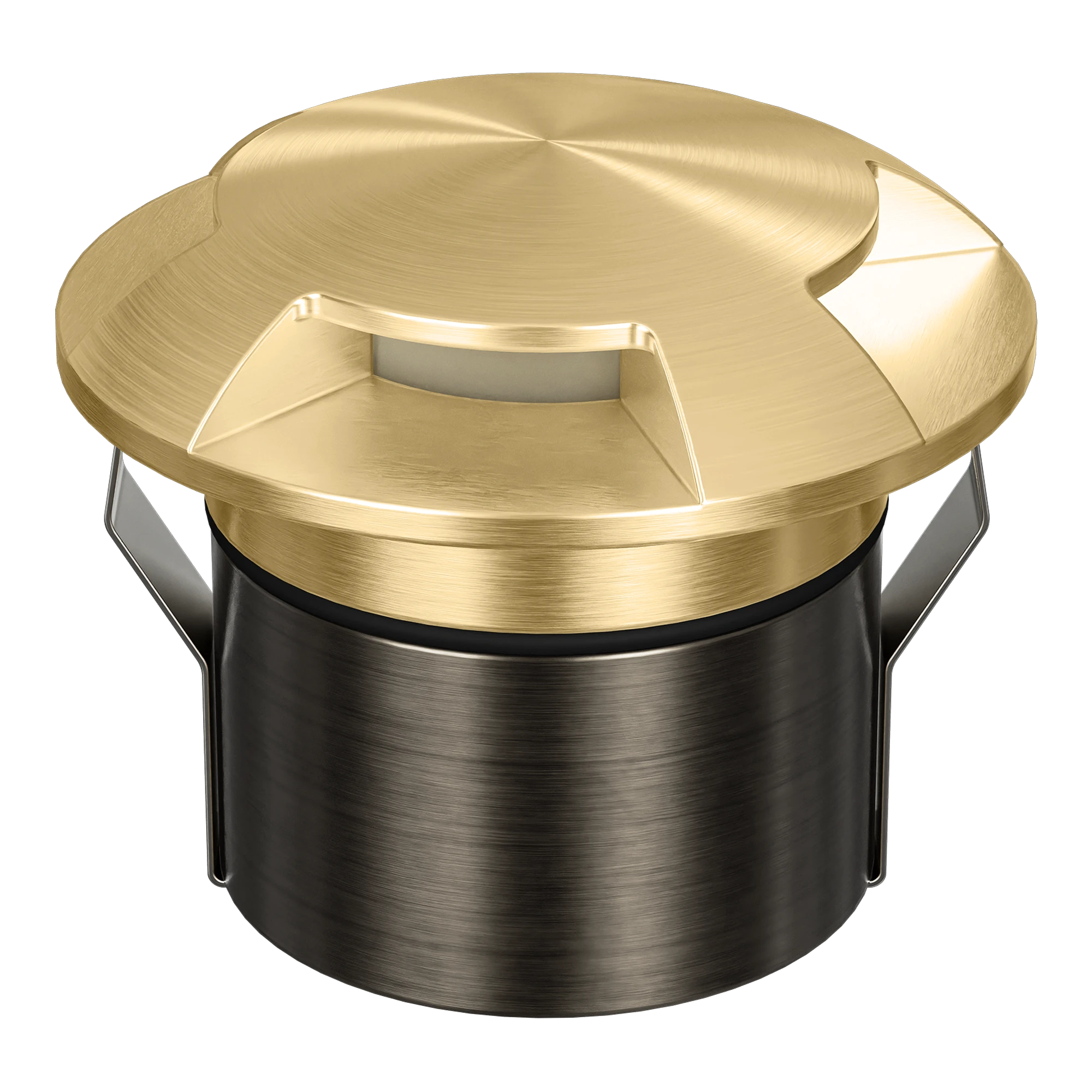

Emit Deck Light 85mm 4/6W Tri-Colour 12/24V 4-Way Brass Domus
Domus Emit 85mm LED deck light, 4/6W, tri-colour, 36 deg beam, 12/24V DC, 4-way fascia, brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emit-85 LED Deck Light, Emit-85 Tri-Colour Inground Light, 4-Way LED Inground Light, Brass LED Recessed Deck Light
Technical Specifications
- Variant: TRIO tri-colour
- Finish: Brass
- Fascia: 4-way
- Power: 6W
- Input Voltage: 12/24V DC constant voltage
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Luminous Flux: 47 lm at 3000K; 54 lm at 4000K and 5500K
- LED Type: CREE
- Colour Rendering Index: ≥90
- Ingress Protection: IP67
- Impact Protection: IK10
- Dimming: No
- LED Lifespan: 50,000 hours
- Cutout: 65 mm without cannister; 82 mm with cannister
- Load Rating: 1,500 kg drive-over
- Wiring: Multiple fittings must be wired in parallel
- Driver Requirement: 12/24V DC constant-voltage LED driver
- Operating Temperature: -20°C to 40°C
- Classification: Class III
- Dimensions (H x L x W): 110mm x 85mm x 85mm
- Weight: 0.55 kg
Key Features
- Selectable warm white, neutral white and cool white colour temperatures
- Four-way fascia distributes light in four directions
- Brass finish for architectural and landscape lighting applications
- IP67-rated construction for outdoor and inground installation
- IK10 impact resistance and 1,500 kg drive-over load rating
- 36° beam supplied as standard, with optional 19° and 60° lenses
- Compatible with optional honeycomb, linear lens and opal diffuser accessories
- Requires a separate 12/24V DC constant-voltage LED driver
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Connect the fitting to a compatible 12/24V DC constant-voltage LED driver, wire multiple fittings in parallel, and follow the manufacturer's installation instructions. The driver and cable joints must also be suitably rated for the installation environment.
Applications
- Residential and commercial deck lighting
- Inground landscape and garden lighting
- Pathway and stair lighting
- Architectural feature and accent lighting
- Drive-over outdoor lighting installations
- Landscape lighting systems using 12V or 24V DC drivers
Standards & Compliance
- AS/NZS 60598.1:2017 – general safety and construction requirements for luminaires
- AS/NZS 60598.2.1:2014, including Amendment 1:2016 – applicable particular requirements for fixed general-purpose luminaires
- AS/NZS 60529 – ingress protection classification relevant to the stated IP67 rating
Environmental Benefits
- LED technology provides lower energy consumption than conventional halogen deck lighting
- 50,000-hour rated LED lifespan can reduce replacement frequency and installation waste
- Brass components can be recycled at end of service life
- 12/24V DC operation supports use with efficient low-voltage lighting systems
- Long-life, impact-resistant construction may reduce premature product replacement
Warranty Information
5-year replacement warranty as stated on the Domus product data sheet and product page, subject to Domus warranty conditions. Warranty eligibility requires installation by a licensed electrician and compliance with installation instructions.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
