Trade Discount 25%

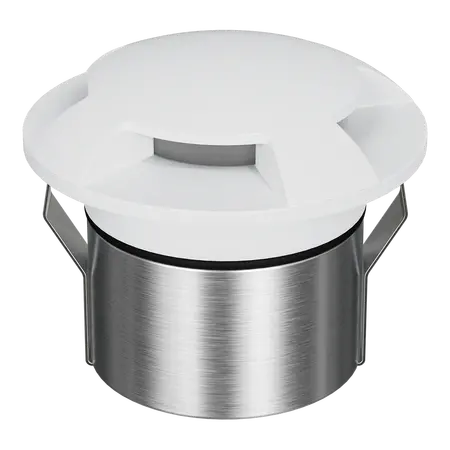

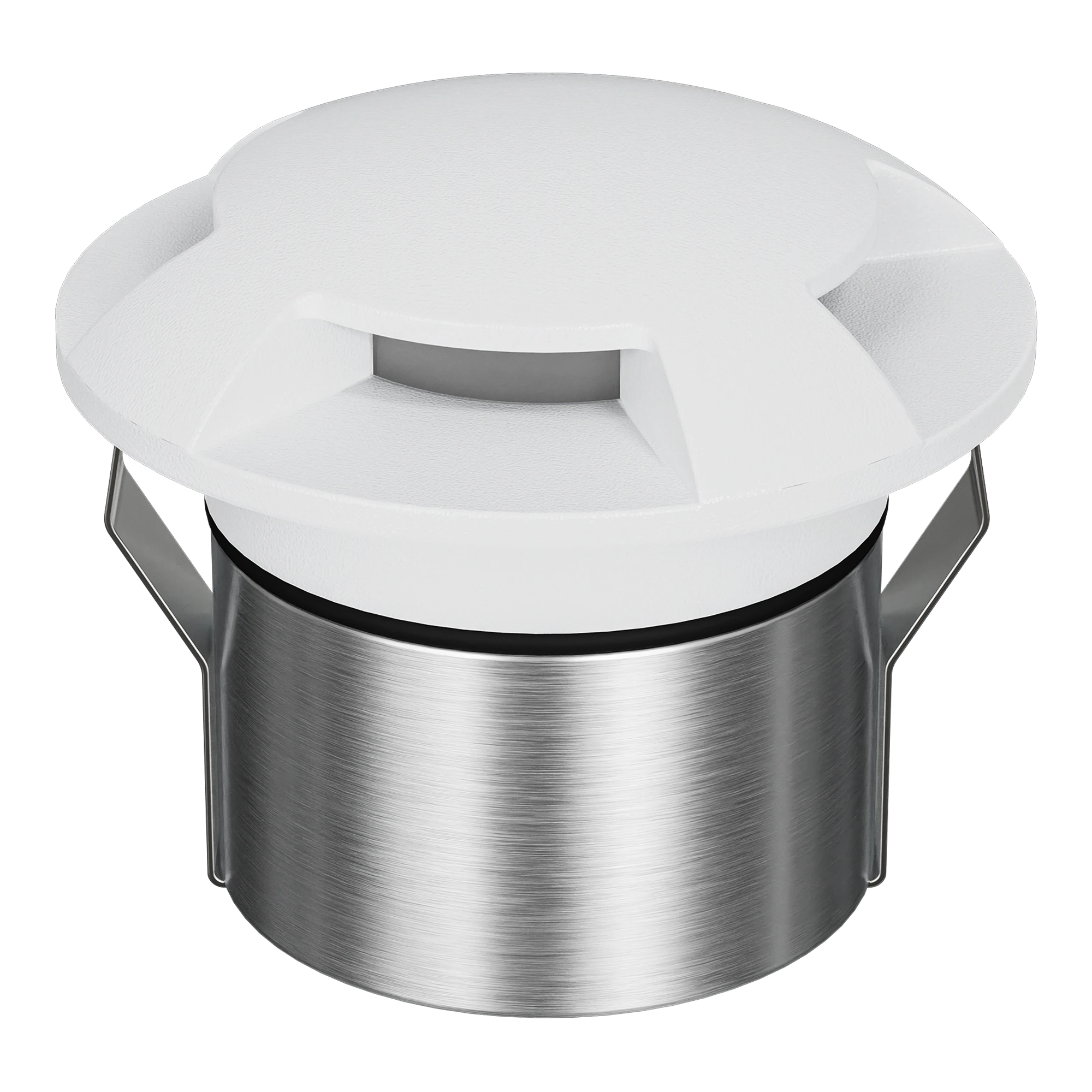

Emit Deck Light 85mm 4/6W Tri-Colour 12/24V 4-Way White Domus
Domus Emit 85mm LED deck light, 4/6W, tri-colour, 36 deg beam, 12/24V DC, 4-way fascia, white. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus Emit-85 4-Way Inground Light, Tri-Colour LED Deck Light, 4-Way Recessed Inground Light
Technical Specifications
- Power: 6W LED
- Input Voltage: 12/24V DC constant voltage
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Lumens: 47 lm at 3000K; 54 lm at 4000K and 5500K
- Beam Angle: 36° standard; optional 19° and 60° lenses
- LED Type: CREE
- Colour Rendering Index: CRI ≥90
- Ingress Protection: IP67
- Impact Protection: IK10
- Load Rating: Up to 1500 kg drive-over
- Dimming: Non-dimmable
- Rated Life: 50,000 hours
- Cutout: 65 mm without cannister; 82 mm with cannister
- Driver Requirement: 12V or 24V DC constant-voltage LED driver, wired in parallel
- Finish: White
- Classification: Class III
- Dimensions (H x L x W): 110mm x 85mm x 85mm
- Weight: 0.5 kg
Key Features
- Four-way fascia for directional feature lighting
- Tri-colour selectable between warm white, neutral white and white colour temperatures
- Suitable for deck, pathway, stair, landscape and architectural lighting
- IP67-rated construction for outdoor and inground applications
- IK10 impact resistance and 1500 kg drive-over load rating
- 36° beam angle supplied as standard
- Optional 19° and 60° lenses, honeycomb, linear lens and opal diffuser available
- Requires a compatible 12/24V DC LED driver, which is not included
Professional Installation Requirements
- Installation must be performed by a professional or licensed electrician. Use a compatible 12V or 24V DC constant-voltage LED driver, wire fittings in parallel, and follow the manufacturer's installation instructions. The driver must be connected before the power source is energised.
Applications
- Deck and timber-deck lighting
- Inground architectural feature lighting
- Pathway and stair lighting
- Landscape and garden lighting
- Drive-over lighting in suitable paved areas
- Residential and light-commercial outdoor lighting installations
Standards & Compliance
- AS/NZS 60598.2.2: applicable standard for recessed luminaires; confirm product-specific declaration and RCM documentation before installation
Environmental Benefits
- LED technology provides lower operating energy consumption than conventional halogen feature lighting
- 50,000-hour rated LED life can reduce replacement frequency and associated waste
- Low-voltage 12/24V DC operation supports efficient extra-low-voltage lighting systems
- Long service life and replaceable product warranty can help reduce premature fitting disposal
Warranty Information
5-year replacement warranty for the EMIT-85 range, subject to Domus Lighting warranty conditions. Warranty eligibility requires installation by a licensed electrician and compliance with the manufacturer's installation guidelines. Domus' current warranty table lists exterior deck and inground lights as 3 years residential and 12 months commercial, while the EMIT-85 product datasheet specifically states a 5-year replacement warranty; confirm the applicable term at purchase.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting retailers.
