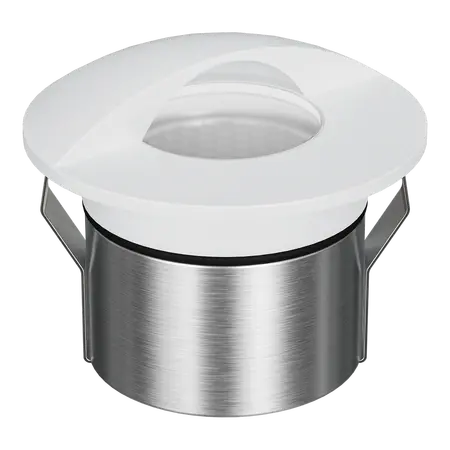

Emit Deck Light 85mm 4/6W Tri-Colour 12/24V Eyelid White Domus
Domus Emit 85mm LED deck light, 4/6W, tri-colour, 36 deg beam, 12/24V DC, eyelid fascia, white. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus Emit 85 LED Inground Light, Tri-Colour LED Deck Light, Eyelid Inground Light, Recessed Outdoor LED Light
Technical Specifications
- Input Voltage: 12/24V DC constant voltage
- Power: 6W
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Luminous Flux: 226 lm at 3000K, 266 lm at 4000K, 253 lm at 5500K
- LED Type: CREE
- Colour Rendering Index: ≥90
- Ingress Protection: IP67
- Impact Protection: IK10
- Load Rating: 1500 kg drive-over
- Dimming: No
- Lifespan: 50,000 hours
- Electrical Classification: Class III
- Operating Temperature: -20°C to 40°C
- Driver Requirement: 12V or 24V DC constant-voltage LED driver, wired in parallel
- Dimensions (H x L x W): 80mm x 85mm x 85mm
- Weight: 0.45 kg
Key Features
- Selectable tri-colour output for warm white, neutral white and white lighting
- Eyelid fascia design for directional feature and accent lighting
- White finish suitable for landscape, pathway, stair and architectural applications
- IP67-rated construction for protected outdoor and inground installations
- IK10 impact rating and 1500 kg drive-over load rating
- 36° beam angle supplied as standard
- Optional 19° and 60° lenses, honeycomb and diffuser accessories available
- Designed for use with a separate constant-voltage LED driver
Professional Installation Requirements
- Installation must be performed by a licensed or suitably qualified electrician. Connect only to a compatible 12V or 24V DC constant-voltage LED driver in accordance with the manufacturer's installation instructions and applicable wiring requirements.
Applications
- Residential and commercial deck lighting
- Landscape and garden feature lighting
- Pathway and stair lighting
- Architectural accent lighting
- Inground and drive-over lighting installations
Standards & Compliance
- AS/NZS 60598.1: Applicable general safety requirements for luminaires
- AS/NZS 60598.2.2: Applicable particular requirements for recessed luminaires; product-specific certification is not stated in the published datasheet
- AS/NZS 3000: Electrical installation and wiring requirements apply to the connected lighting circuit
Environmental Benefits
- LED technology provides lower energy consumption than comparable conventional light sources
- 50,000-hour rated lifespan can reduce replacement frequency and associated material waste
- Low-voltage Class III operation supports safer, energy-efficient outdoor lighting system design
- Long service life helps reduce maintenance visits and disposal of failed lamps
Warranty Information
5-year replacement warranty for the Tri-Colour EMIT-85 fitting, subject to Domus Lighting warranty conditions, licensed electrician installation and installation in accordance with the manufacturer's guidelines.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
