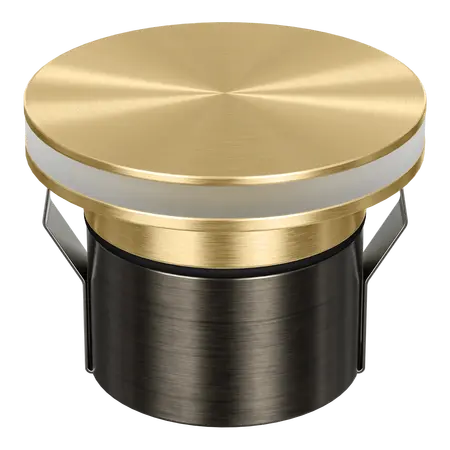

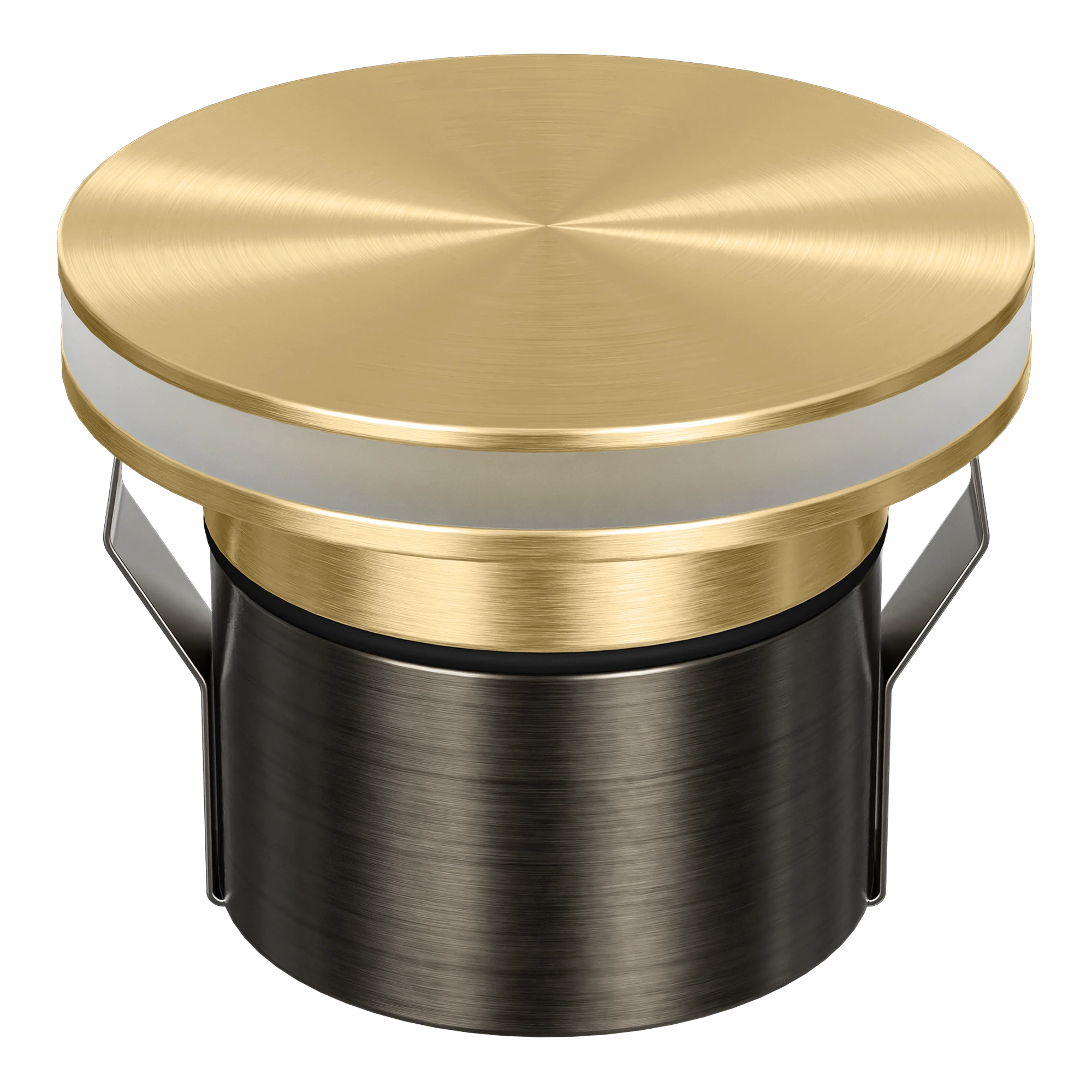

Emit Deck Light 85mm 4/6W Tri-Colour 12/24V Halo Brass Domus
Domus Emit 85mm LED deck light, 4/6W, tri-colour, 36 deg beam, 12/24V DC, halo fascia, brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emit-85 Halo LED Deck Light, 85mm Inground Light, Tri-Colour Recessed Deck Light
Technical Specifications
- Power: 6W
- Input Voltage: 12/24V DC constant voltage
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Luminous Flux: 230 lm
- Beam Angle: 36° standard; optional 19° and 60° lenses
- LED Type: CREE
- Colour Rendering Index: CRI ≥90
- Ingress Protection: IP67
- Impact Protection: IK10
- Load Rating: 1500 kg drive-over
- Dimming: No
- Operating Temperature: -20°C to 40°C
- Lifespan: 50,000 hours
- Classification: Class III
- Driver Requirement: 12/24V DC LED constant-voltage driver; wire in parallel
- Dimensions (H x L x W): 80mm x 85mm x 85mm
- Weight: 0.4 kg
Key Features
- Halo fascia in brass finish
- Tri-colour selectable LED output
- Suitable for inground, deck, pathway, stair and architectural feature lighting
- 85mm overall diameter with compact recessed form
- 36° beam angle supplied as standard
- Optional 19° and 60° beam lenses, honeycomb, linear lens and opal diffuser available
- IP67 weather-resistant construction
- IK10 impact rating and 1500 kg drive-over load rating
- Requires a separate 12/24V DC constant-voltage LED driver
Professional Installation Requirements
- Installation must be performed by a professional or licensed electrician. Use a compatible 12/24V DC constant-voltage LED driver, connect the luminaire in parallel and follow the manufacturer's installation instructions.
Applications
- Residential and commercial deck lighting
- Inground landscape and pathway lighting
- Stair and step lighting
- Architectural feature and accent lighting
- Drive-over outdoor lighting installations
Standards & Compliance
- AS/NZS 60598.1:2025 – applicable general safety requirements for luminaires; product-specific certification or declaration was not stated in the available manufacturer documentation.
Environmental Benefits
- LED technology provides lower energy consumption than equivalent halogen lighting
- 50,000-hour rated lifespan can reduce replacement frequency and waste
- Brass and other metal components can be recovered and recycled at end of life
- Selectable colour temperature and replaceable optical accessories can extend suitability across different installations
Warranty Information
5-year replacement warranty stated by Domus for the EMIT-85 Tri-Colour series. Warranty eligibility requires installation by a licensed electrician and compliance with Domus installation guidelines; commercial coverage may differ under the current Domus warranty policy.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
