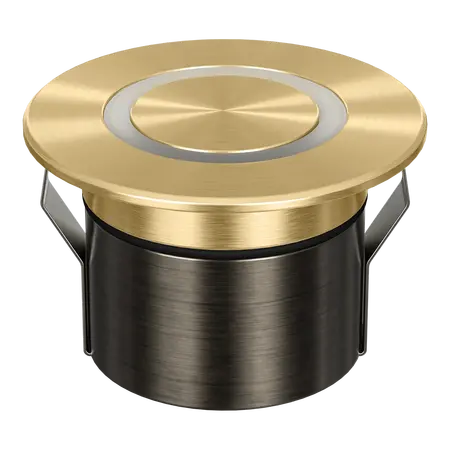

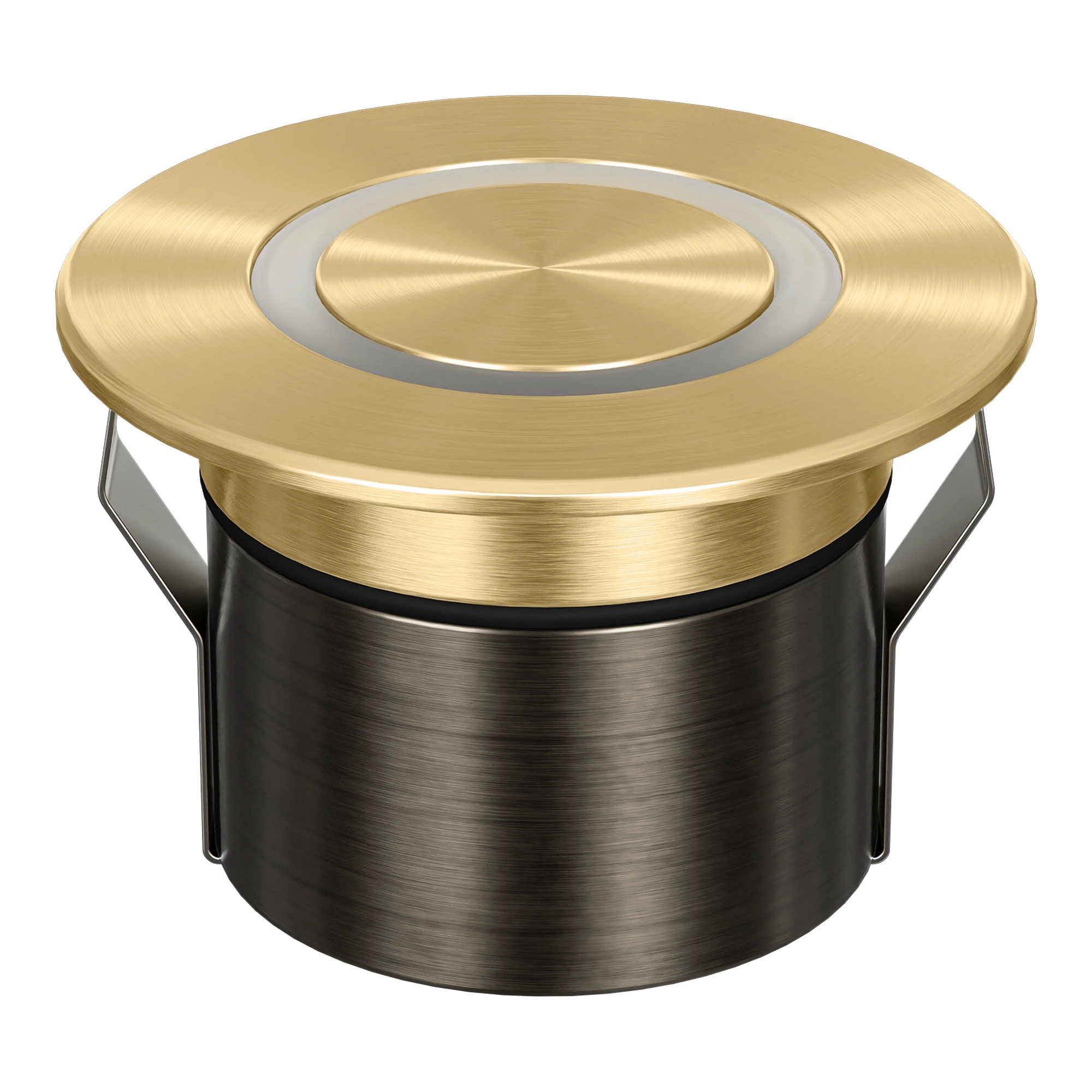

Emit Deck Light 85mm 4/6W Tri-Colour 12/24V Ring Brass Domus
Domus Emit 85mm LED deck light, 4/6W, tri-colour, 36 deg beam, 12/24V DC, ring fascia, brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-85-TRIO-RING, Domus Emit 85 Ring Inground Light, Brass LED Deck Light, Tri-Colour Inground Light
Technical Specifications
- Product Type: Tri-colour LED inground and deck light
- Finish: Brass
- Material: Brass fascia with integrated LED light source
- Power: 4W/6W
- Input Voltage: 12/24V DC
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Lumens: 52 lm at 3000K, 61 lm at 4000K, 60 lm at 5500K
- LED Type: CREE
- Colour Rendering Index: CRI ≥90
- Beam Angle: 36° standard; optional 19° and 60° lenses available
- Ingress Protection: IP67
- Impact Protection: IK10
- Drive-Over Load Rating: 1500 kg
- Dimming: No
- Lifespan: 50,000 hours
- Classification: Class III
- Driver Requirement: 12V or 24V constant-voltage DC LED driver, wired in parallel
- Dimensions (H x L x W): 93mm x 85mm x 85mm
- Weight: 0.5 kg
Key Features
- Selectable tri-colour output for warm, neutral or cool white lighting
- Brass ring fascia for landscape, architectural and deck applications
- Suitable for recessed inground, pathway, stair and feature lighting
- IP67-rated construction for outdoor and wet-area exposure
- IK10 impact protection and 1500 kg drive-over rating
- 36° standard beam angle with optional lens accessories
- Compatible with 12V and 24V constant-voltage LED drivers
- Optional honeycomb, opal diffuser and linear lens accessories
- Integrated CREE LED with CRI ≥90
- Manufacturer data sheet states a 5-year replacement warranty
Professional Installation Requirements
- Installation should be performed by a licensed electrician. Use a compatible 12V or 24V constant-voltage DC LED driver, wire fittings in parallel, and install in accordance with the manufacturer's instructions and AS/NZS 3000. The fitting must be installed within the limits of its IP rating.
Applications
- Residential and commercial deck lighting
- Landscape and garden feature lighting
- Pathway and stair lighting
- Architectural accent lighting
- Recessed inground lighting
- Drive-over outdoor lighting where the specified load rating is suitable
Standards & Compliance
- AS/NZS 3000:2018 – electrical installation requirements for wiring and connection of the low-voltage lighting system
- AS/NZS 60598.1:2025 – general requirements and tests for luminaires; applicable to the luminaire product family
Environmental Benefits
- LED technology provides efficient, low-power illumination compared with conventional halogen lighting
- Selectable colour temperature can help reduce unnecessary lighting output for the application
- CREE LED lifespan of up to 50,000 hours can reduce replacement frequency and material waste
- Brass components are recyclable at end of service life
- IP67 and IK10 construction supports longer service life in outdoor installations
Warranty Information
5-year replacement warranty stated by Domus for the EMIT-85-TRIO-RING product. Warranty claims require installation by a licensed electrician, proof of purchase and compliance with the manufacturer's installation requirements; current Domus warranty terms apply.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
