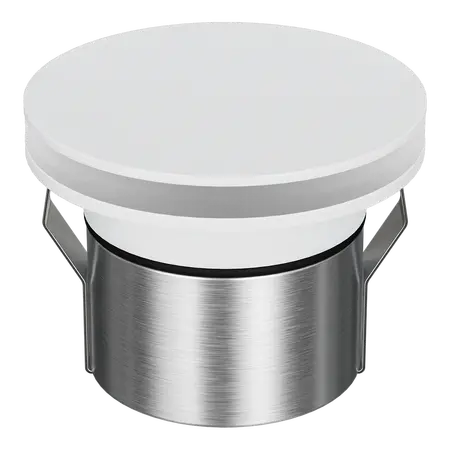

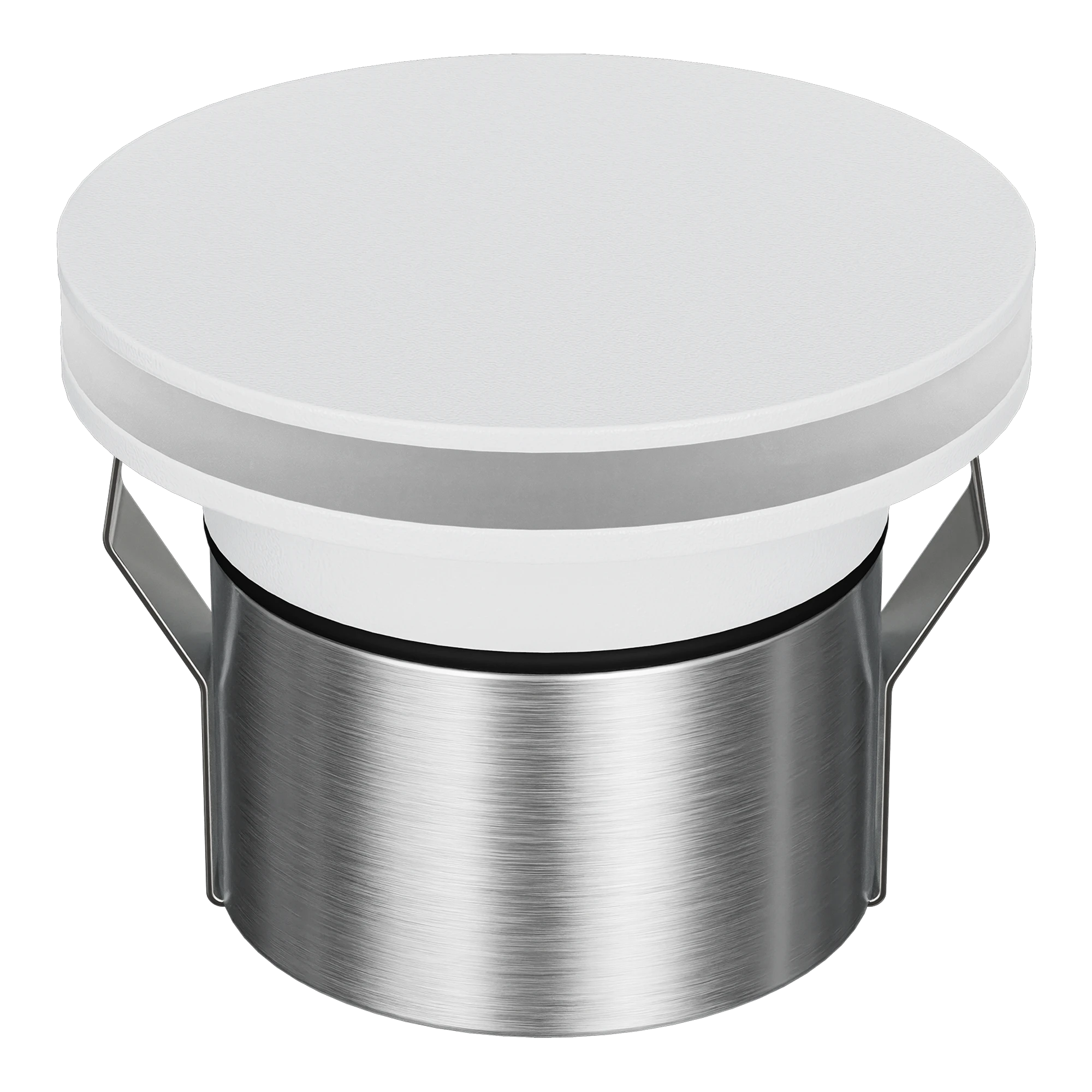

Emit Deck Light 85mm 4/6W Tri-Colour 12/24V Ring White Domus
Domus Emit 85mm LED deck light, 4/6W, tri-colour, 36 deg beam, 12/24V DC, ring fascia, white. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-85 Tri-Colour Ring Inground Light, 85mm LED Deck Light, Ring Fascia Deck Light
Technical Specifications
- Model: EMIT-85-TRIO-RING
- Variant: Tri-Colour Ring, white finish
- Input Voltage: 12/24V DC
- Power: 6W selectable LED output
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Lumens: 52 lm at 3000K; 61 lm at 4000K; 60 lm at 5500K
- Beam Angle: 36° standard; optional 19° and 60° lenses
- LED Type: CREE
- Colour Rendering Index: ≥90
- Ingress Protection: IP67
- Impact Protection: IK10
- Load Rating: 1500 kg drive-over
- Dimming: No
- Lifespan: 50,000 hours
- Cutout: 65mm without cannister; 82mm with cannister
- Driver Requirement: 12 or 24V constant-voltage LED driver, wired in parallel
- Classification: Class III
- Dimensions (H x L x W): 93mm x 85mm x 85mm
- Weight: 0.5 kg
Key Features
- Tri-Colour selection between warm white, neutral white and cool white
- White ring fascia for deck, landscape and architectural feature lighting
- 36° standard beam angle with optional interchangeable lenses
- IP67-rated construction for outdoor and inground applications
- IK10 impact rating and 1500kg drive-over load rating
- Compatible with 12V or 24V DC constant-voltage LED drivers
- Optional honeycomb, opal diffuser and linear lens accessories
- CREE LED source with CRI of at least 90
- Non-dimmable design with an expected 50,000-hour LED lifespan
Professional Installation Requirements
- Installation must be performed by a professional or licensed electrician. Connect only to a suitable 12V or 24V DC constant-voltage LED driver, wire fittings in parallel, and follow the manufacturer’s installation instructions. Ensure the installation location is suitable for the IP67 rating.
Applications
- Residential and commercial deck lighting
- Outdoor pathway and stair lighting
- Landscape and garden feature lighting
- Inground architectural accent lighting
- Drive-over lighting areas where the 1500kg load rating is suitable
Standards & Compliance
- Applicable luminaire safety framework: AS/NZS 60598.1, Luminaires—General requirements and tests
- Applicable extra-low-voltage luminaire standard: AS/NZS 60598.2.23, Extra-low-voltage lighting systems for ELV light sources
- Electrical installation should comply with AS/NZS 3000 Wiring Rules
- Manufacturer datasheet displays an RCM mark; a product-specific declaration of conformity was not published
Environmental Benefits
- LED technology provides lower energy consumption than equivalent halogen lighting
- 50,000-hour rated lifespan can reduce replacement frequency and material waste
- Low-voltage 12/24V DC operation supports energy-efficient extra-low-voltage lighting systems
- Metal components and electronic materials may be recyclable through appropriate end-of-life recycling channels
Warranty Information
The current EMIT-85-TRIO product datasheet states a 5-year replacement warranty. Domus Lighting’s current warranty table separately lists exterior deck and inground lights as covered for 3 years for residential applications and 12 months for commercial applications. Warranty eligibility requires licensed-electrician installation, proof of purchase and installation in accordance with Domus guidelines; confirm the applicable term at purchase.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors, subject to distributor stock.
