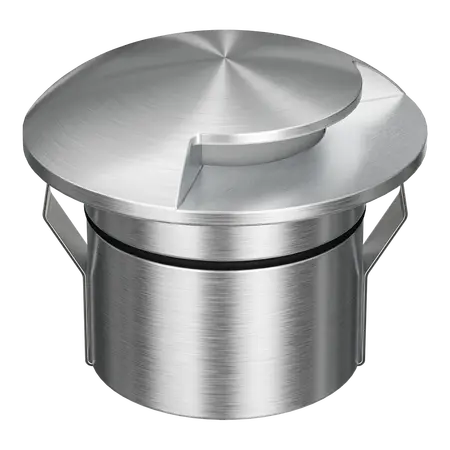

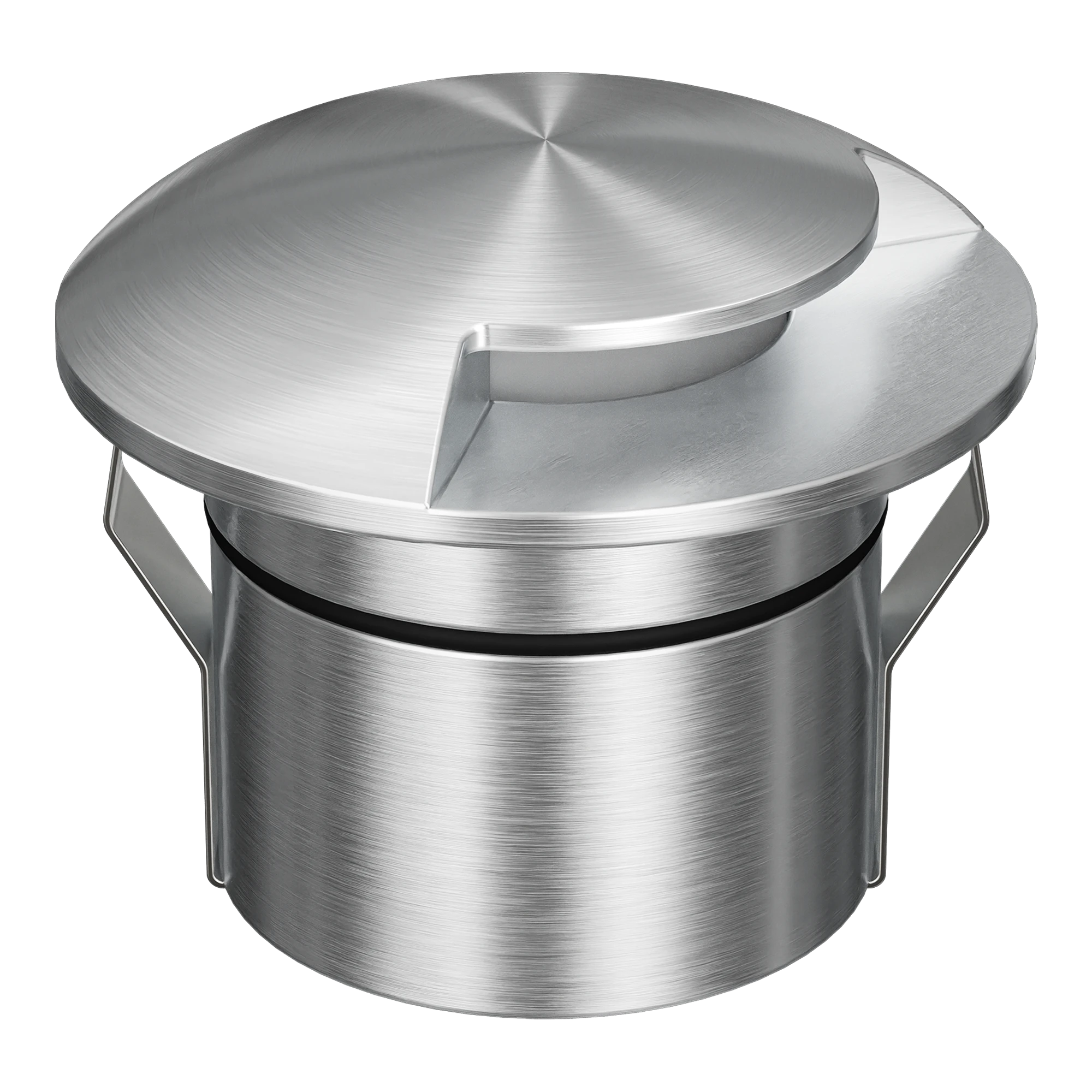

Emit Deck Light 85mm 6W RGBW 12/24V 1-Way 316 Stainless Domus
Domus Emit 85mm LED deck light, 6W, RGBW, 36 deg beam, 12/24V DC, 1-way fascia, 316 stainless. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emit-85 RGBW 1-Way Inground Light, RGBW LED Deck Light, Recessed Exterior LED Ground Light
Technical Specifications
- Light Source: CREE LED
- Power: 6W
- Input Voltage: 24V DC constant voltage
- Light Colour: RGBW – red, green, blue and white
- Beam Angle: 36° standard; optional 19° and 60° lenses available
- Colour Rendering Index: CRI ≥90
- Ingress Protection: IP67
- Impact Protection: IK10
- Dimming: Not dimmable
- LED Life: 50,000 hours
- Material: 316 stainless steel fascia
- Cutout: 65mm without cannister; 82mm with cannister
- Controller Requirement: RGBW colour controller required
- Driver Requirement: 24V DC constant-voltage LED driver, wired in parallel
- Operating Temperature: -20°C to 40°C
- Classification: Class III
- Dimensions (H x L x W): 110mm x 85mm x 85mm
- Weight: 0.45 kg
Key Features
- 1-way fascia directs light through a single aperture
- RGBW colour-changing output with selectable white light
- 316 stainless steel construction for exterior applications
- IP67-rated and IK10 impact-resistant housing
- 36° standard beam angle for feature and deck lighting
- Drive-over rated for applications up to 2,000kg, subject to correct installation
- Optional lenses, honeycomb and diffuser accessories available
- Professional electrician installation required
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Connect only to a suitable 24V DC constant-voltage LED driver and compatible RGBW controller, with the driver and wiring installed in accordance with AS/NZS 3000 and the manufacturer's instructions.
Applications
- Residential and commercial deck lighting
- Outdoor entertaining areas and patios
- Pathways, steps and landscaped areas
- Architectural feature lighting
- Inground and drive-over lighting installations
- Poolside and other exterior areas requiring IP67 low-voltage lighting
Standards & Compliance
- AS/NZS 60598.1: Applicable general requirements for luminaires
- AS/NZS 60598.2.2: Applicable particular requirements for recessed luminaires
- AS/NZS 3000: Applicable electrical installation requirements for connection and wiring; product-specific certification should be confirmed before installation
Environmental Benefits
- LED technology provides long service life and low energy consumption compared with conventional lamps
- 316 stainless steel construction is durable and recyclable, supporting extended product life and reduced replacement waste
- Low-voltage Class III operation supports safer extra-low-voltage lighting system design
- 50,000-hour rated LED life can reduce maintenance visits and discarded lamp waste
Warranty Information
Domus Lighting lists exterior LED deck and inground lights under a 3-year replacement warranty for residential use and a 12-month replacement warranty for commercial use. Warranty coverage requires installation by a licensed electrician. ([domuslighting.com.au](https://www.domuslighting.com.au/wp-content/uploads/2026/01/Warranty-Statement-Revised-09-01-2026.pdf?utm_source=openai))
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting retailers. ([domuslighting.com.au](https://www.domuslighting.com.au/resources/?utm_source=openai))
