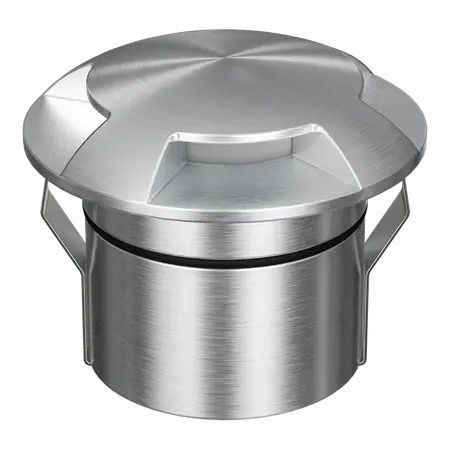

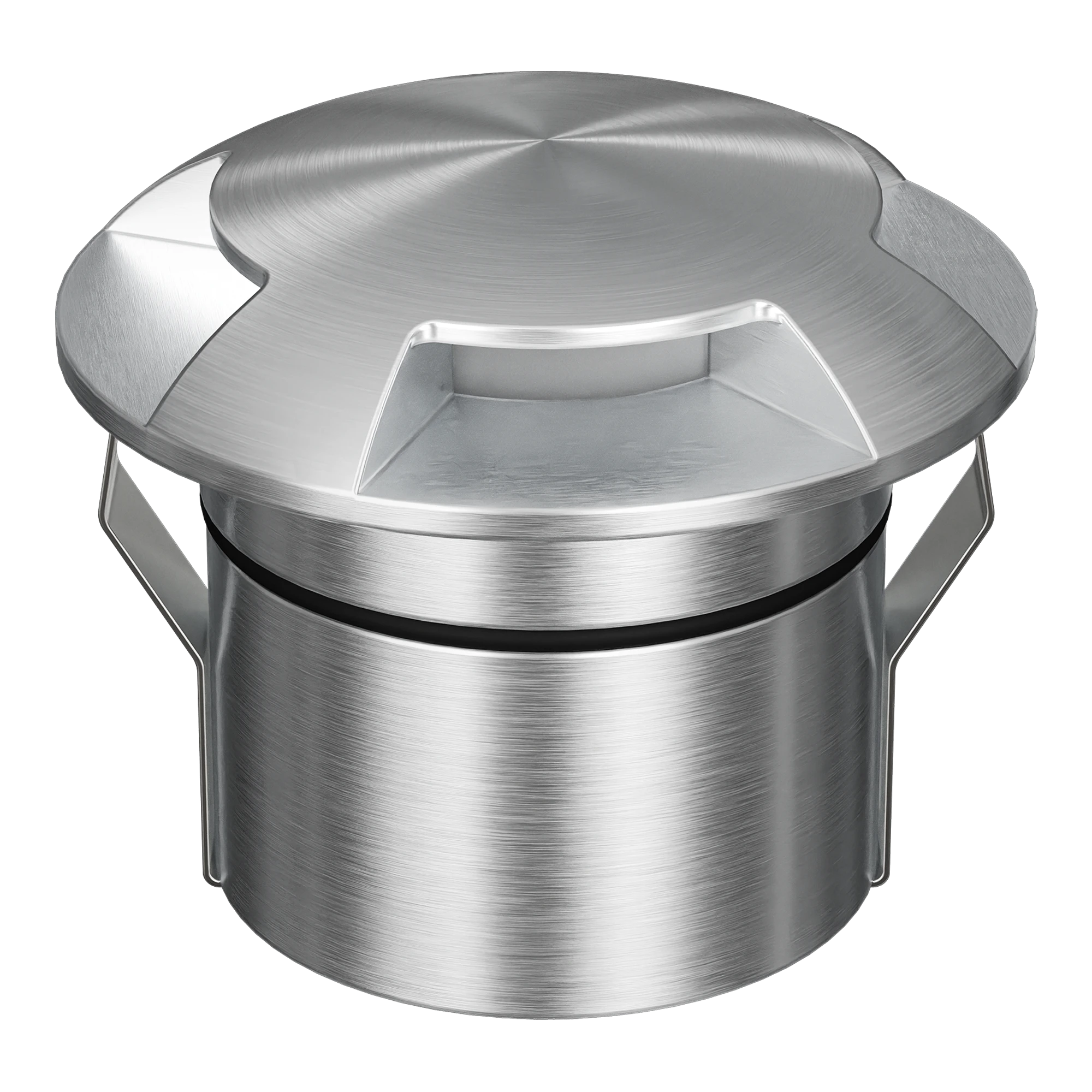

Emit Deck Light 85mm 6W RGBW 12/24V 3-Way 316 Stainless Domus
Domus Emit 85mm LED deck light, 6W, RGBW, 36 deg beam, 12/24V DC, 3-way fascia, 316 stainless. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus EMIT-85-RGBW-3WAY, RGBW Inground Light, Multiway Deck Light, Recessed Landscape Light
Technical Specifications
- Wattage: 6W
- Input Voltage: 24V DC constant voltage
- Light Source: CREE LED
- Colour Output: RGBW red, green, blue and white
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Ingress Protection: IP67
- Impact Protection: IK10
- Lifespan: 50,000 hours
- Drive-Over Load Rating: 1500kg
- Cutout Diameter: 65mm without cannister; 82mm with cannister
- Control Requirement: RGBW colour controller required
- Dimming: No
- Operating Temperature: -20°C to 40°C
- Material: 316 stainless steel
- Fascia: 3-way
- CRI: ≥90
- Dimensions (H x L x W): 80mm x 85mm x 85mm
- Weight: 0.55 kg
Key Features
- RGBW colour-changing light output for feature and accent lighting
- 316 stainless steel fascia for outdoor and coastal applications
- Compact 85mm inground and deck light format
- 36° beam angle supplied as standard
- IP67 protection for outdoor recessed installation
- IK10 impact rating and 1500kg drive-over rating
- Requires a separate 24V constant-voltage LED driver
- Requires an RGBW colour controller
- Optional lenses, honeycomb and diffuser accessories available
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Connect to a suitable 24V DC constant-voltage LED driver and compatible RGBW colour controller, with wiring installed in accordance with Australian electrical requirements and the manufacturer's instructions.
Applications
- Residential deck and pathway lighting
- Landscape and garden feature lighting
- Architectural accent lighting
- Stair and step illumination
- Drive-over inground lighting
- Outdoor hospitality and commercial feature lighting
Standards & Compliance
- AS/NZS 60598.1: Applicable general requirements and tests for luminaires
- AS/NZS 60598.2.1: Applicable particular requirements for fixed general-purpose luminaires; product-specific certification is not stated by the manufacturer
Environmental Benefits
- LED technology provides lower energy consumption than equivalent halogen lighting
- 50,000-hour rated lifespan can reduce replacement frequency and material waste
- 316 stainless steel is durable and recyclable at end of service life
- Low-voltage 24V DC operation can support safer, efficient outdoor lighting system design
Warranty Information
Domus Lighting exterior LED deck lights are covered by a 3-year replacement warranty for residential applications and a 12-month replacement warranty for commercial applications, subject to licensed electrician installation and the manufacturer's warranty conditions.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
