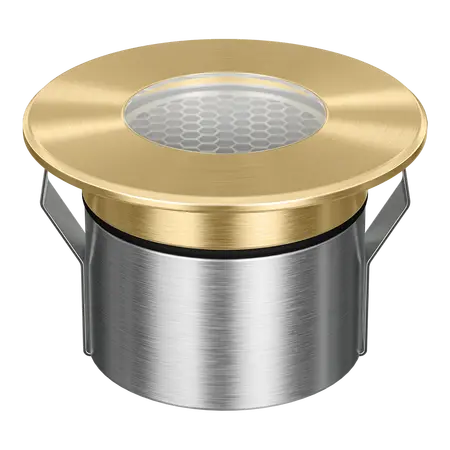

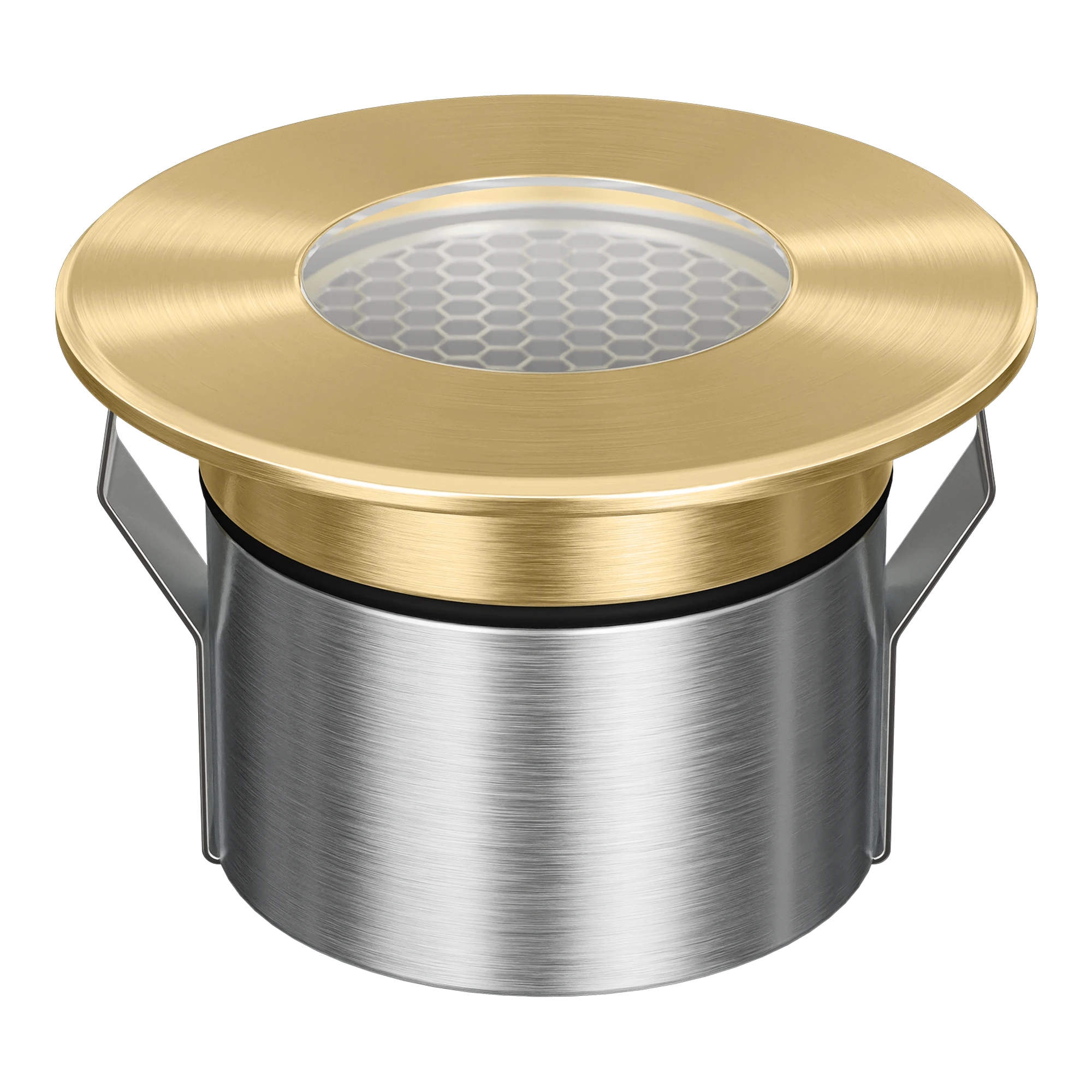

Emit Deck Light 85mm 6W RGBW 12/24V Round Open Brass Domus
Domus Emit 85mm LED deck light, 6W, RGBW, 36 deg beam, 12/24V DC, round open fascia, brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus EMIT-85-RGBW-BRS, RGBW Inground Light, Brass Inground Deck Light, Brass Garden Up Light
Technical Specifications
- Power: 6W
- Input Voltage: 24V DC constant voltage
- Light Source: CREE LED
- Colour Output: RGBW
- Colour Rendering Index: CRI ≥90
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Ingress Protection: IP67
- Impact Protection: IK10
- Dimming: Not dimmable
- LED Lifespan: 50,000 hours
- Material: Brass
- Finish: Brass
- Cutout Diameter: Ø65mm without canister; Ø82mm with canister
- Controller Requirement: RGBW colour controller required
- Driver Requirement: 24V constant-voltage LED driver, wired in parallel
- Drive-Over Rating: Up to 1,500kg, subject to correct installation
- Dimensions (H x L x W): 110mm x 85mm x 85mm
- Weight: 0.75 kg
Key Features
- Round open fascia for discreet inground and deck lighting
- RGBW output for coloured lighting and selectable white tones
- 36° standard beam angle for feature and pathway illumination
- Solid brass fascia and body components
- IP67 rated for outdoor and inground applications
- IK10 impact-rated construction
- Compatible with optional honeycomb, opal diffuser and beam-angle lenses
- Requires separate RGBW controller and constant-voltage LED driver
- Backed by a 5-year replacement warranty
Professional Installation Requirements
- Installation should be performed by a licensed electrician in accordance with AS/NZS 3000. Use a compatible 24V DC constant-voltage LED driver and RGBW controller; ensure all cable joints and connections are suitably protected for outdoor or inground use.
Applications
- Deck and pathway lighting
- Garden and landscape feature lighting
- Outdoor stairs and steps
- Architectural and façade highlighting
- Inground uplighting
- Residential and commercial outdoor lighting projects
Standards & Compliance
- AS/NZS 60598.1:2025 – applicable general requirements and tests for luminaires
- AS/NZS 3000:2018 – electrical installation and wiring requirements
Environmental Benefits
- LED technology provides lower energy consumption than conventional halogen feature lighting
- 50,000-hour rated LED lifespan can reduce replacement frequency and product waste
- Brass components are recyclable at end of service life
- Low-voltage operation supports efficient, separately controlled landscape-lighting systems
Warranty Information
5-year replacement warranty. Domus Lighting warranty claims require installation by a licensed electrician and are subject to the manufacturer's warranty terms.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
