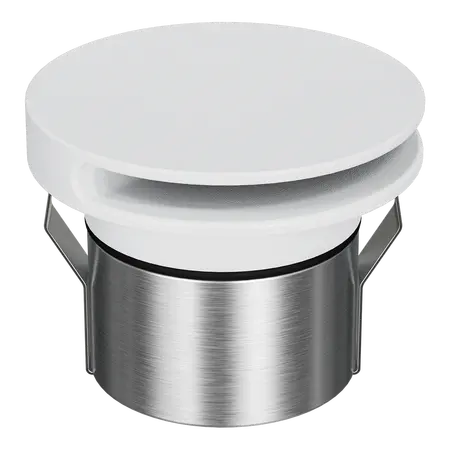

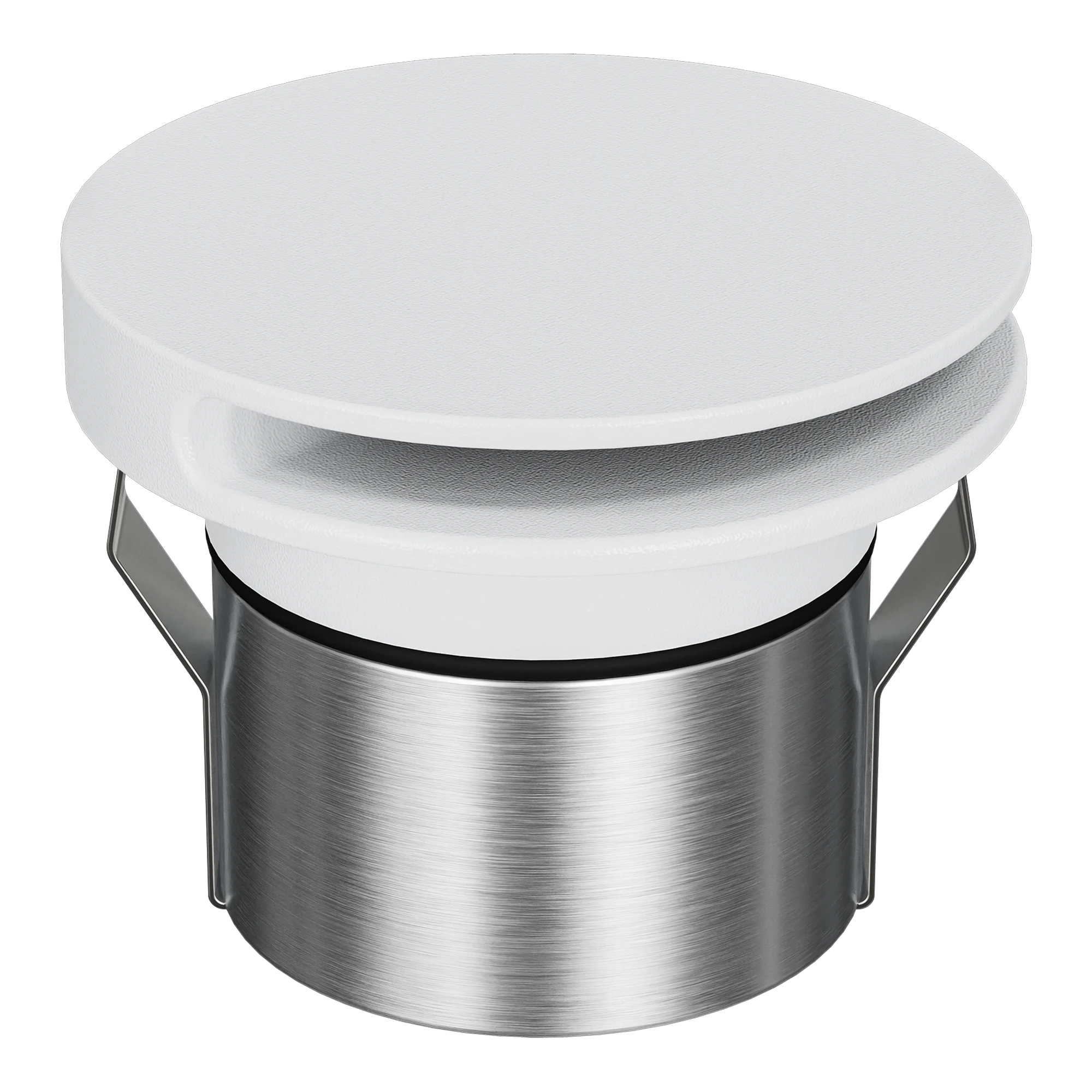

Emit Deck Light 85mm 6W RGBW 12/24V Round Slot White Domus
Domus Emit 85mm LED deck light, 6W, RGBW, 36 deg beam, 12/24V DC, round slot fascia, white. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus Emit 85 RGBW Deck Light, Domus Emit-85 RGBW Inground Light, 85 mm RGBW LED Decklight
Technical Specifications
- Power: 6W
- Input Voltage: 24V DC constant voltage
- Light Source: CREE LED
- Light Colour: RGBW red, green, blue and white
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Ingress Protection: IP67
- Impact Protection: IK10
- Dimming: No
- Operating Temperature: -20°C to 40°C
- LED Lifespan: 50,000 hours
- Load Rating: 1500 kg drive-over
- Cutout: 65 mm without canister; 82 mm with canister
- Control Requirement: RGBW colour controller
- Driver Requirement: 24V DC constant-voltage LED driver, wired in parallel
- Finish: White
- Fascia Style: Round slot
- Dimensions (H x L x W): 105mm x 85mm x 85mm
- Weight: 0.45 kg
Key Features
- RGBW colour-changing light for landscape, pathway, stair and architectural applications
- Round slot fascia for directional feature lighting
- IP67-rated construction for outdoor and inground use
- IK10 impact resistance and 1500 kg drive-over load rating
- Optional 19° and 60° beam-angle lenses available
- Compatible with optional honeycomb and frosted diffuser accessories
- Class III extra-low-voltage luminaire
- 85 mm overall diameter for compact deck and inground installations
Professional Installation Requirements
- Installation must be performed by a professional or licensed electrician. Connect only to a 24V DC constant-voltage LED driver and use a compatible RGBW colour controller. Follow the specified cutout, waterproofing and cable-connection requirements.
Applications
- Residential and commercial deck lighting
- Outdoor feature and accent lighting
- Landscape and garden lighting
- Pathway and stair illumination
- Architectural façade and hardscape lighting
- Drive-over inground lighting where the 1500 kg load rating is suitable
Standards & Compliance
- AS/NZS 60598.1:2025 — applicable general requirements and tests for luminaires
- AS/NZS 60598.2.23:2021 — applicable requirements for extra-low-voltage lighting systems for ELV light sources
Environmental Benefits
- LED technology provides lower energy consumption than conventional halogen lighting at comparable feature-lighting output
- 50,000-hour rated LED lifespan can reduce replacement frequency and material waste
- Metal fascia and body components can be separated for recycling at end of service life
- 24V DC extra-low-voltage operation supports efficient, low-voltage outdoor lighting systems
Warranty Information
3-year replacement warranty for residential exterior applications and 12-month replacement warranty for commercial exterior applications, subject to Domus Lighting warranty conditions. Installation by a licensed electrician is required for warranty eligibility.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
