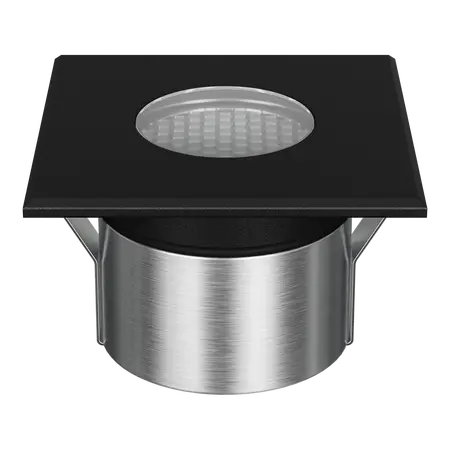

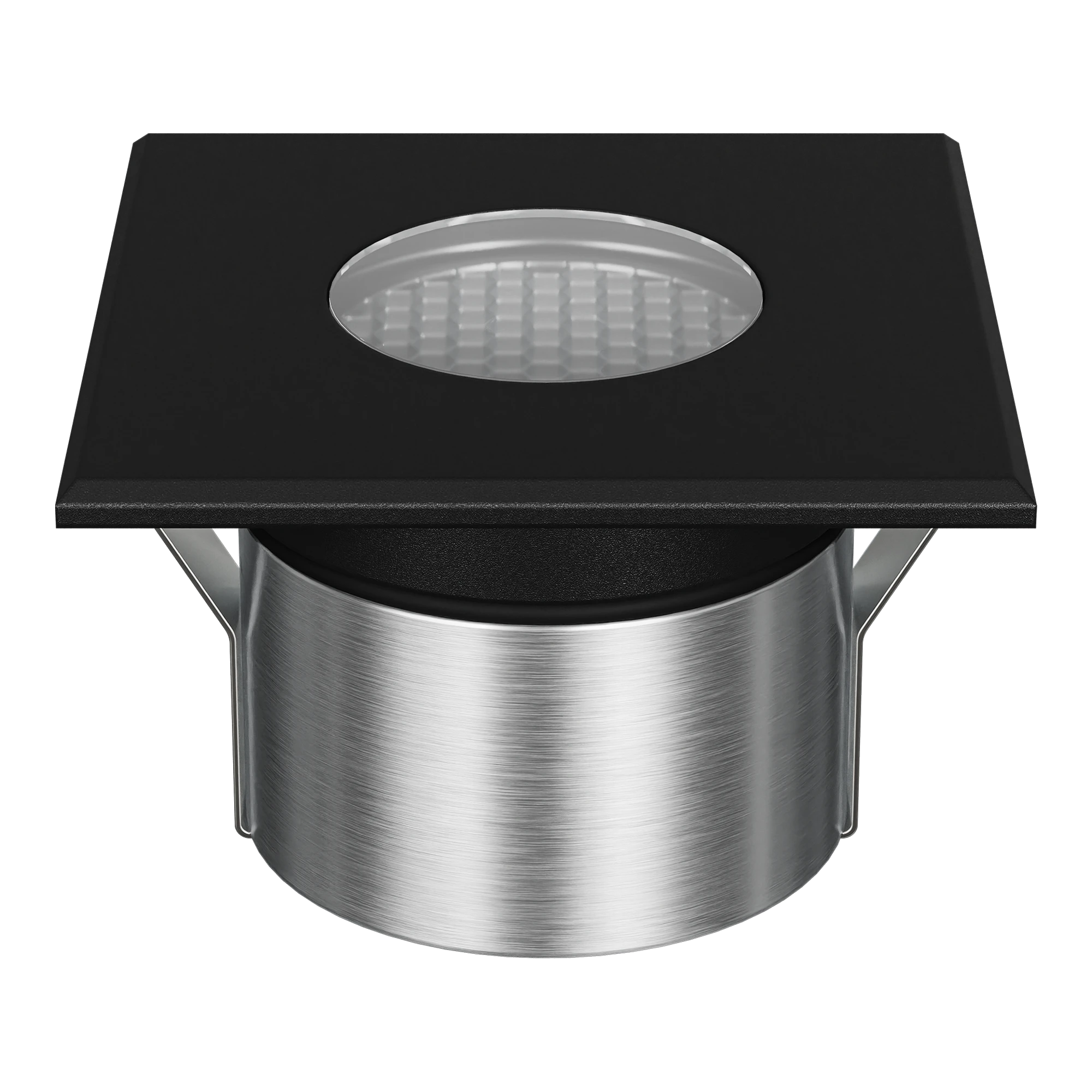

Emit Deck Light 85mm 6W RGBW 12/24V Square Open Black Domus
Domus Emit 85mm LED deck light, 6W, RGBW, 36 deg beam, 12/24V DC, square open fascia, black. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emit 85 RGBW LED Inground Light, Emit 85 RGBW Deck Light, Square Open Inground Light
Technical Specifications
- Variant: EMIT-85-RGBW-SO
- Wattage: 6W
- Input Voltage: 24V DC constant voltage
- Light Colour: RGBW
- Beam Angle: 36° standard; optional 19° and 60° lenses
- LED Type: CREE
- IP Rating: IP67
- IK Rating: IK10
- Dimming: No
- Lifespan: 50,000 hours
- Load Rating: 1,500kg drive-over
- Cutout: 65mm without canister; 82mm with canister
- Operating Temperature: -20°C to 40°C
- Driver Requirement: 24V DC constant-voltage LED driver
- Control Requirement: RGBW colour controller
- Finish: Black
- Fascia Style: Square open
- Dimensions (H x L x W): 93mm x 85mm x 85mm
- Weight: 0.65 kg
Key Features
- RGBW colour-changing output for architectural and feature lighting
- Compact 85mm square fascia for inground and deck applications
- 36° beam angle supplied as standard
- IP67 protection for outdoor and inground installation
- IK10 impact rating and 1,500kg drive-over load rating
- Optional narrow and wide beam lenses, honeycomb and diffuser accessories
- Designed for parallel wiring with a 24V constant-voltage LED driver
- Requires a compatible RGBW colour controller
- 50,000-hour rated LED lifespan
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Use a compatible 24V DC constant-voltage LED driver and RGBW colour controller, with wiring and outdoor installation carried out in accordance with the manufacturer's instructions and applicable electrical requirements.
Applications
- Residential deck lighting
- Landscape and garden feature lighting
- Pathway and stair lighting
- Architectural accent lighting
- Outdoor inground lighting
- Drive-over feature lighting where the specified load rating is suitable
Standards & Compliance
- AS/NZS 60598.1: General requirements for luminaires
- AS/NZS 60598.2.23:2021: Relevant requirements for applicable extra-low-voltage lighting systems
Environmental Benefits
- LED technology provides lower energy consumption than equivalent halogen lighting
- 50,000-hour rated lifespan can reduce replacement frequency and material waste
- Low-voltage 24V DC operation supports efficient outdoor lighting system design
- Metal components can generally be recovered for recycling at end of service life
Warranty Information
Domus Lighting warranty policy: 3-year replacement warranty for residential exterior deck and inground lights, and 12-month replacement warranty for commercial applications. Warranty eligibility requires installation by a licensed electrician and compliance with the manufacturer's installation requirements.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
