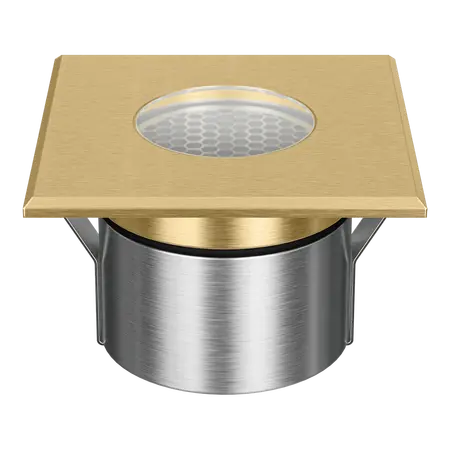

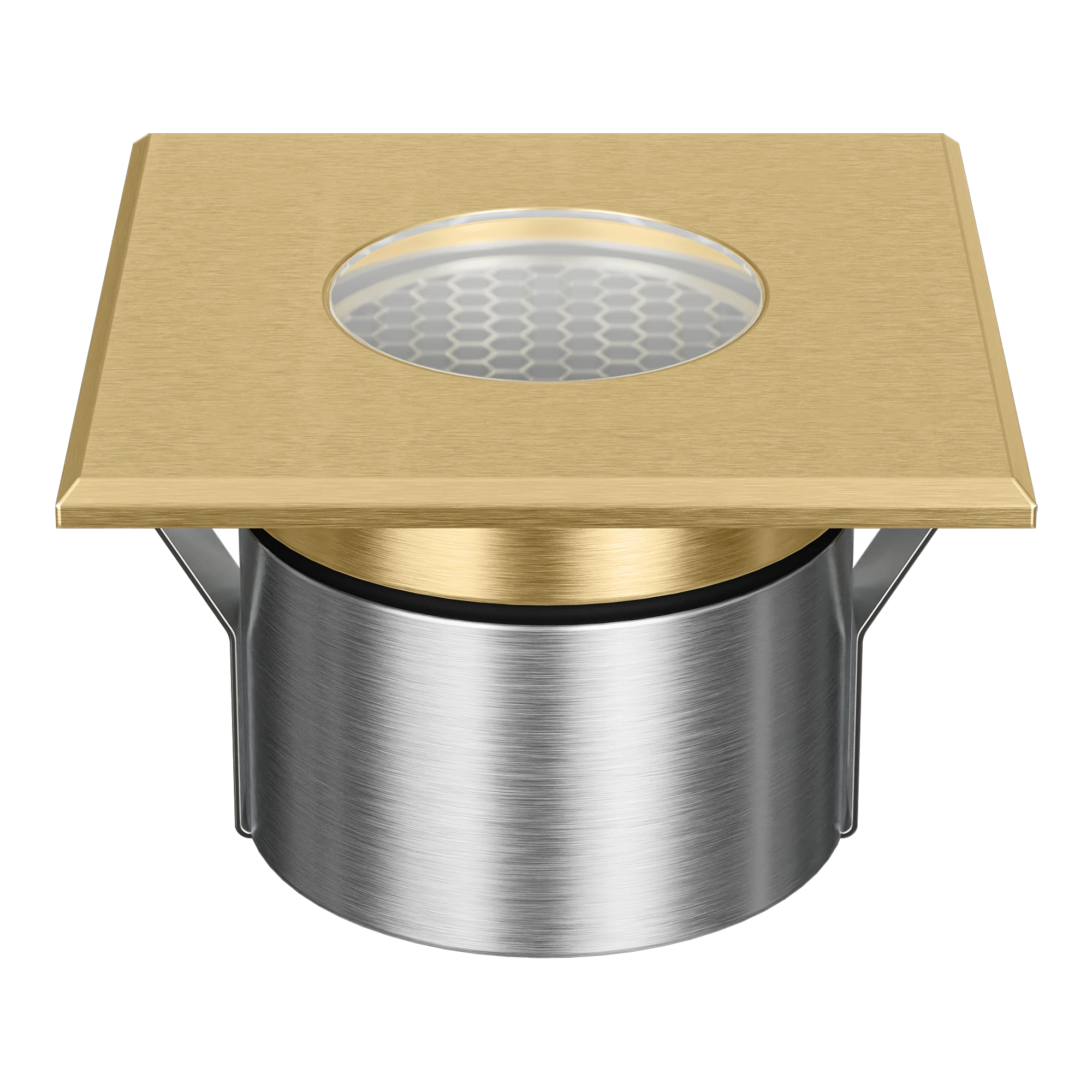

Emit Deck Light 85mm 6W RGBW 12/24V Square Open Brass Domus
Domus Emit 85mm LED deck light, 6W, RGBW, 36 deg beam, 12/24V DC, square open fascia, brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-85-RGBW-SO, Emit 85 RGBW Inground Light, Square Open Inground Light, RGBW Decklight
Technical Specifications
- Power: 6W
- Input Voltage: 24V DC constant voltage
- Light Source: CREE LED
- Colour Output: RGBW
- Beam Angle: 36° standard; optional 19° and 60° lenses
- IP Rating: IP67
- IK Rating: IK10
- CRI: ≥90
- Lifespan: 50,000 hours
- Dimming: No
- Drive-Over Load Rating: 1,500kg
- Cutout: 65mm without canister; 82mm with canister
- Required Accessories: 24V constant-voltage LED driver and RGBW colour controller
- Material/Finish: Brass fascia with stainless steel body
- Dimensions (H x L x W): 93mm x 85mm x 85mm
- Weight: 0.45 kg
Key Features
- Square open fascia for inground and deck-lighting applications
- RGBW colour-changing LED output
- 36° standard beam angle for feature and accent lighting
- IP67-rated construction for suitable outdoor applications
- IK10 impact protection
- 1500kg drive-over load rating
- Optional honeycomb, opal diffuser, linear, 19° and 60° lens accessories
- Compatible with RGBW colour controllers
- Designed for landscape, pathway, stair and architectural feature lighting
Professional Installation Requirements
- Installation must be completed by a licensed electrician. Use a 24V DC constant-voltage LED driver wired in parallel and a compatible RGBW colour controller. Follow the manufacturer's installation instructions and ensure all outdoor cable connections are suitably sealed.
Applications
- Residential and commercial deck lighting
- Inground landscape lighting
- Pathway and stair lighting
- Architectural feature and accent lighting
- Drive-over outdoor areas within the rated 1500kg load limit
Standards & Compliance
- AS/NZS 60598.2.13: Applicable product-category standard for ground-recessed luminaires; confirm product-specific certification and installation requirements with the manufacturer
- AS/NZS 60598.1: General requirements and tests for luminaires, where applicable to the complete luminaire
Environmental Benefits
- LED technology provides a 6W lighting solution with lower energy consumption than conventional light sources
- 50,000-hour rated lifespan can reduce replacement frequency and product waste
- Brass and stainless steel components are recyclable at end of service life
- Low-voltage 24V DC operation supports efficient extra-low-voltage lighting systems
Warranty Information
5-year replacement warranty stated by Domus Lighting for the EMIT-85 RGBW range, subject to the manufacturer's warranty terms, correct installation and installation by a licensed electrician.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
