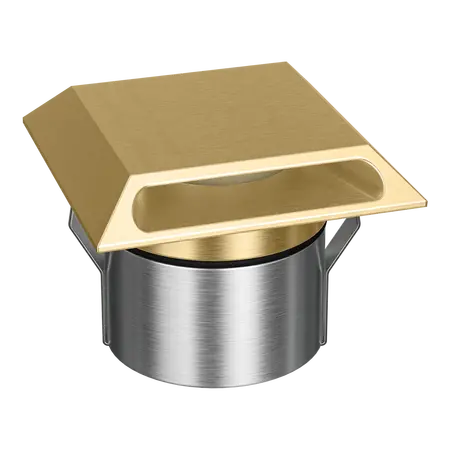

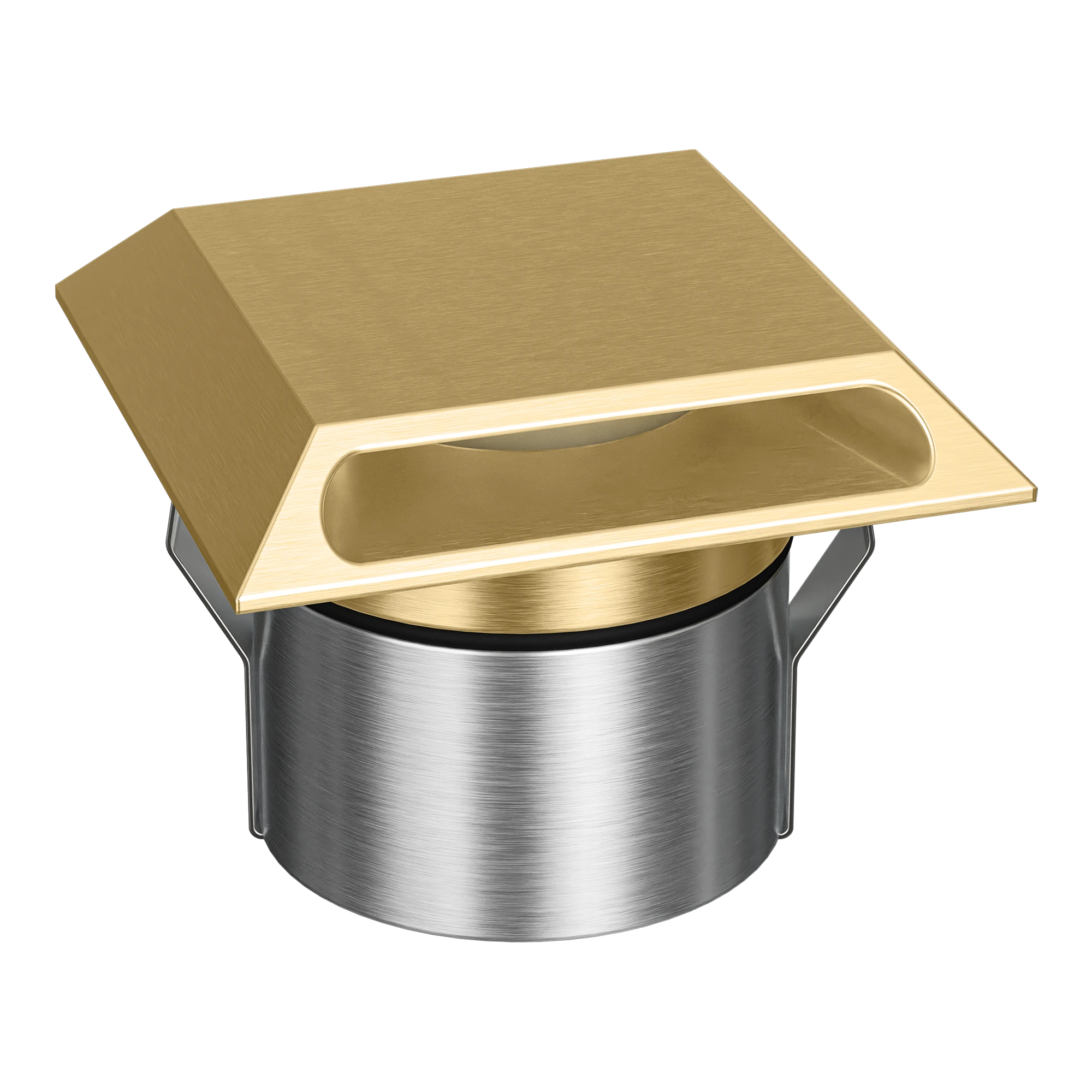

Emit Deck Light 85mm 6W RGBW 12/24V Square Slot Brass Domus
Domus Emit 85mm LED deck light, 6W, RGBW, 36 deg beam, 12/24V DC, square slot fascia, brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-85 RGBW Square Slot Deck Light, 85mm RGBW Inground Light, Recessed LED Deck Light, Outdoor Architectural Uplight
Technical Specifications
- Power: 6W
- Input Voltage: 24V DC constant voltage
- Light Source: CREE LED
- Colour Output: RGBW – red, green, blue and white
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Ingress Protection: IP67
- Impact Protection: IK10
- Load Rating: 1500kg drive-over
- Cutout: 65mm without cannister or 82mm with cannister
- Operating Temperature: -20°C to 40°C
- Dimming: No
- LED Lifespan: 50,000 hours
- Control Requirement: RGBW colour controller required
- Driver Requirement: 24V DC constant-voltage LED driver, wired in parallel
- Construction: Brass fascia and inground luminaire body
- Classification: Class III extra-low-voltage luminaire
- Dimensions (H x L x W): 110mm x 85mm x 85mm
- Weight: 0.7 kg
Key Features
- RGBW colour-changing illumination for architectural and landscape feature lighting
- Square slot fascia for directional light distribution
- 36° beam angle supplied as standard
- IP67-rated construction for outdoor and inground applications
- IK10 impact rating and 1500kg drive-over load rating
- Compatible with optional beam lenses, honeycomb and frosted diffuser accessories
- Compact 85mm form factor for deck, pathway, stair and landscape installations
- Requires separate 24V DC LED driver and RGBW controller
- 5-year replacement warranty stated on the Domus product listing
Professional Installation Requirements
- Installation must be completed by a licensed electrician in accordance with the manufacturer's installation instructions and AS/NZS 3000. Use a suitable 24V DC constant-voltage LED driver and compatible RGBW controller. Connect the luminaires in parallel and ensure all outdoor cable joints and connections are suitably protected.
Applications
- Outdoor deck and step lighting
- Inground landscape and pathway lighting
- Architectural feature and accent lighting
- Garden, courtyard and retaining-wall illumination
- Drive-over outdoor lighting where the 1500kg load rating is suitable
- Commercial and residential exterior lighting installations
Standards & Compliance
- AS/NZS 3000:2018 – Electrical installations and wiring requirements applicable to low-voltage lighting circuits
- AS/NZS 60598.1:2017 – General safety requirements for luminaires; confirm product certification and installation conditions with the manufacturer or supplier
Environmental Benefits
- LED technology provides lower energy consumption than equivalent conventional light sources
- 50,000-hour rated LED lifespan can reduce replacement frequency and material waste
- Brass components are durable and recyclable at end of service life
- 24V DC Class III operation supports safer extra-low-voltage outdoor lighting systems
- Replaceable external driver and controller arrangement can simplify system servicing
Warranty Information
Domus Lighting lists a 5-year replacement warranty for the EMIT RGBW inground and deck light range. Warranty eligibility requires purchase through an authorised distributor, installation by a licensed electrician and compliance with the manufacturer's installation instructions.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors, subject to distributor stock availability.
