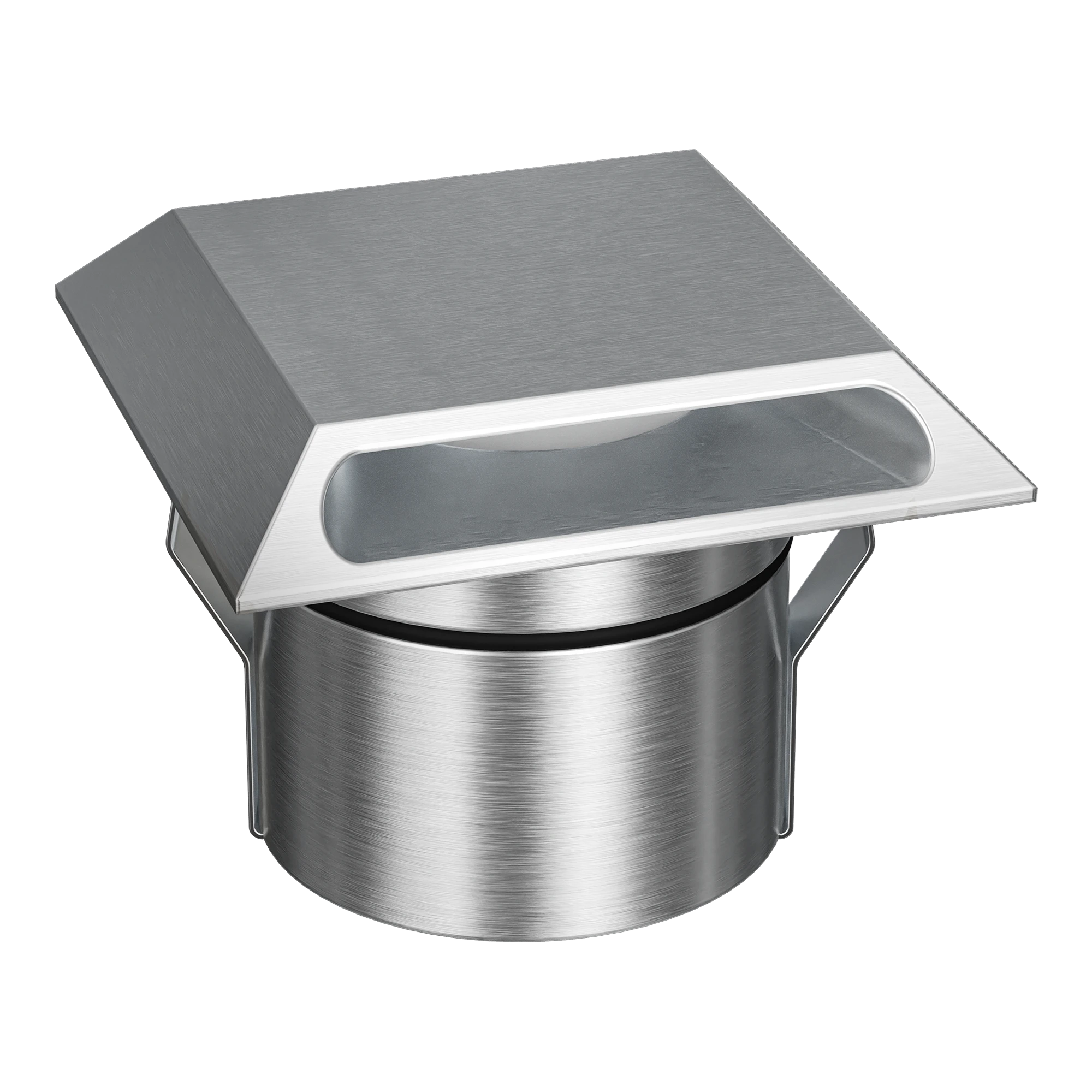

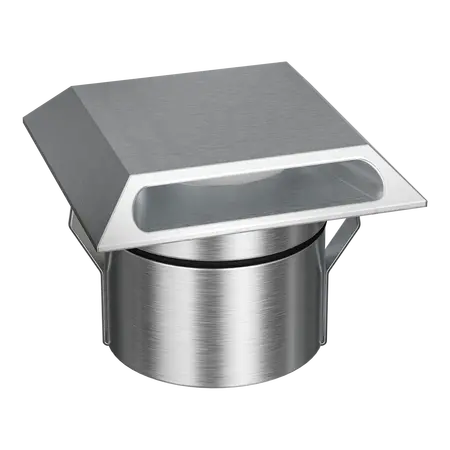

Emit Deck Light 85mm RGBW 12/24V Square Slot 316 Stainless Domus
Domus Emit 85mm LED deck light, 6W, RGBW, 36 deg beam, 12/24V DC, square slot fascia, 316 stainless. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus Emit-85 RGBW Deck Light, Domus Emit 85 Inground Light, RGBW LED Uplight, Square Slot Inground Light
Technical Specifications
- Power: 6W
- Input Voltage: 24V DC constant voltage
- Light Source: CREE LED
- Colour Output: RGBW – red, green, blue and white
- Beam Angle: 36° standard; optional 19° and 60° lenses
- IP Rating: IP67
- IK Rating: IK10
- Lifespan: 50,000 hours
- Dimming: No
- Load Rating: 1,500 kg drive-over
- Cutout: 65 mm without cannister; 82 mm with cannister
- Required Accessories: 24V constant-voltage LED driver and RGBW colour controller
- Material: 316 stainless steel fascia
- Dimensions (H x L x W): 110mm x 85mm x 85mm
- Weight: 0.7 kg
Key Features
- RGBW colour-changing light for feature and accent illumination
- Square slot fascia for directional light distribution
- 316 stainless steel finish for outdoor applications
- Suitable for inground and deck installation
- IP67 protection against dust and temporary water immersion
- IK10 impact resistance
- Drive-over rated to 1,500 kg
- Optional narrow, medium, honeycomb and frosted diffuser accessories
- Wire multiple fittings in parallel to the 24V constant-voltage driver
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Connect only to a 24V DC constant-voltage LED driver and compatible RGBW colour controller, following the manufacturer's installation instructions and AS/NZS 3000 requirements.
Applications
- Residential deck and entertaining areas
- Landscape and garden feature lighting
- Pathways, stairs and driveways
- Architectural facade and feature illumination
- Drive-over inground lighting installations
Standards & Compliance
- AS/NZS 3000:2018 – Electrical installations, for the associated low-voltage electrical installation
Environmental Benefits
- LED technology provides efficient feature lighting with a 6W power rating
- 50,000-hour rated lifespan can reduce replacement frequency and material waste
- 316 stainless steel is durable and recyclable at end of service life
- Low-voltage 24V DC operation supports use with appropriately efficient LED drivers
Warranty Information
Domus Lighting's warranty statement classifies exterior deck and inground lights under a 3-year replacement warranty for residential applications and a 12-month replacement warranty for commercial applications. Warranty eligibility requires installation by a licensed electrician and compliance with the installation guidelines.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
