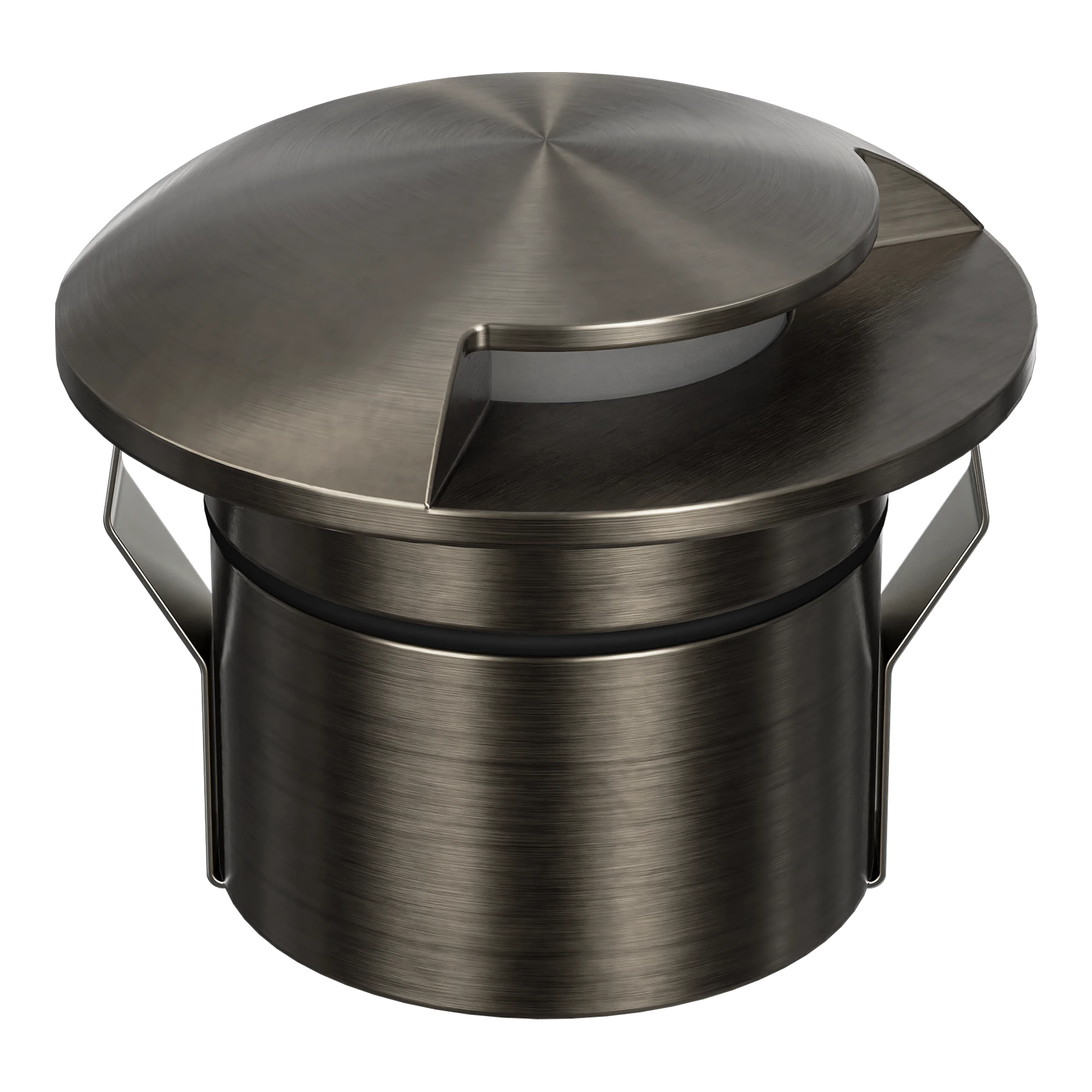

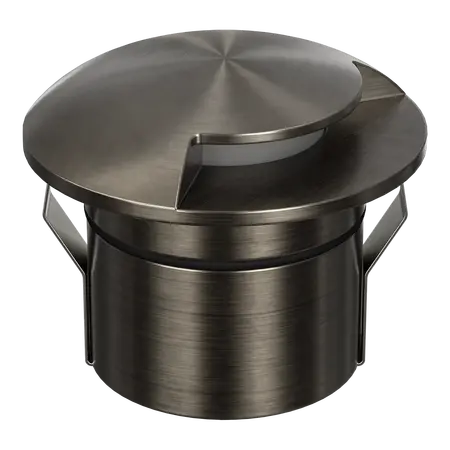

Emit Deck Light 85mm Tri-Colour 12/24V 1-Way Antique Brass Domus
Domus Emit 85mm LED deck light, 4/6W, tri-colour, 36 deg beam, 12/24V DC, 1-way fascia, antique brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus EMIT-85-TRIO-1WAY, 1-Way Inground Light, Recessed LED Deck Light, Landscape Feature Light
Technical Specifications
- Input Voltage: 12/24V DC constant voltage
- Power: 6W
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Luminous Output: 29lm at 3000K, 33lm at 4000K, 32lm at 5500K
- Beam Angle: 36° standard; optional 19° and 60° lenses
- LED Type: CREE
- Colour Rendering Index: CRI ≥90
- Ingress Protection: IP67
- Impact Protection: IK10
- Load Rating: 1500kg drive-over
- Dimming: Non-dimmable
- LED Lifespan: 50,000 hours
- Cut-out: 65mm without cannister or 82mm with cannister
- Driver Requirement: 12/24V DC constant-voltage LED driver, wired in parallel
- Finish: Antique brass
- Classification: Class III extra-low voltage
- Dimensions (H x L x W): 80mm x 85mm x 85mm
- Weight: 0.75 kg
Key Features
- Selectable tri-colour LED output for warm white, neutral white or white light
- One-way fascia directs light for pathway, stair, deck and feature lighting
- IP67 protection for outdoor and inground applications
- IK10 impact resistance and 1500kg drive-over load rating
- 36° standard beam angle with optional beam-control lenses
- High colour rendering with CRI ≥90
- Suitable for 12V or 24V DC systems
- Compatible with optional honeycomb, linear lens and opal diffuser accessories
- Requires a separate compatible LED driver
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Use a compatible 12V or 24V DC constant-voltage LED driver, wire fittings in parallel and install in accordance with the manufacturer's instructions and AS/NZS 3000.
Applications
- Residential and commercial deck lighting
- Outdoor pathways and stairs
- Landscape and garden feature lighting
- Architectural accent lighting
- Drive-over inground lighting installations
- Low-voltage outdoor lighting systems
Standards & Compliance
- Applicable product safety standard: AS/NZS 60598.2.23:2021 for extra-low-voltage lighting systems
- Electrical installation should follow AS/NZS 3000:2018 Wiring Rules
Environmental Benefits
- LED technology provides lower energy consumption than equivalent halogen lighting
- 50,000-hour rated LED lifespan can reduce replacement frequency and waste
- Low-voltage DC operation is suitable for energy-efficient outdoor lighting systems
- Metal components such as brass and aluminium can be recycled at end of service life
Warranty Information
5-year replacement warranty. Warranty eligibility requires installation by a licensed electrician, installation according to Domus guidelines and purchase through an authorised distributor. Warranty terms may vary by residential or commercial application.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers, lighting retailers and distributors.
