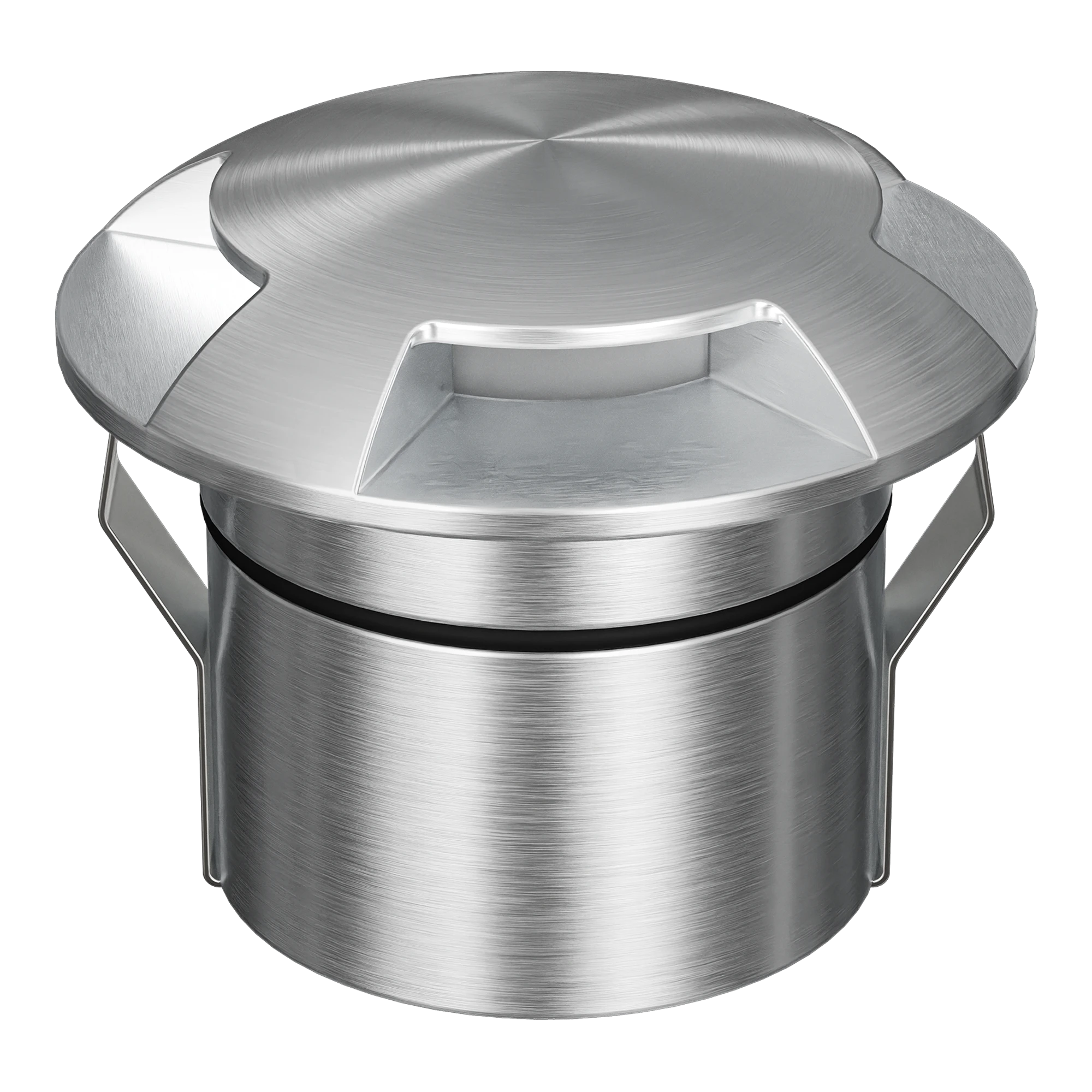

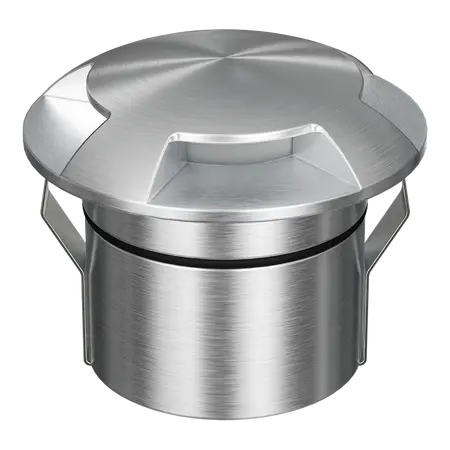

Emit Deck Light 85mm Tri-Colour 12/24V 3-Way 316 Stainless Domus
Domus Emit 85mm LED deck light, 4/6W, tri-colour, 36 deg beam, 12/24V DC, 3-way fascia, 316 stainless. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus EMIT-85-TRIO-3WAY-STS, 85mm LED Inground Light, Tri-Colour Deck Light, Recessed Outdoor LED Light
Technical Specifications
- Light Source: CREE LED
- Power: 4/6W
- Input Voltage: 12/24V DC
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Beam Angle: 36° standard; 19° and 60° optional lenses available
- Colour Rendering Index: CRI ≥90
- Luminous Flux: Up to 460 lm, depending on colour temperature and fascia
- Ingress Protection: IP67
- Impact Protection: IK10
- Load Rating: 1500 kg drive-over
- LED Lifespan: 50,000 hours
- Dimming: Non-dimmable
- Material: 316 stainless steel
- Cutout: 65 mm without canister or 82 mm with canister
- Driver Requirement: 12 or 24V DC constant-voltage LED driver, wired in parallel
- Operating Temperature: -20°C to 40°C
- Classification: Class III
- Dimensions (H x L x W): 110mm x 85mm x 85mm
- Weight: 0.45 kg
Key Features
- Tri-colour selectable white light for warm, neutral or cool-white output
- Three-way fascia distributes light across multiple directions
- 316 stainless-steel construction for outdoor deck and landscape applications
- IP67-rated housing suitable for outdoor installation
- IK10 impact rating and 1500 kg drive-over load rating
- Standard 36° beam with optional 19° and 60° lenses
- Suitable for 12V or 24V DC constant-voltage LED drivers
- Long-life CREE LED rated to 50,000 hours
- Optional canister, diffuser, honeycomb and lens accessories available
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Use a compatible 12V or 24V DC constant-voltage LED driver, wire fittings in parallel, and follow the manufacturer's installation instructions. The driver is required and is not included.
Applications
- Deck and patio lighting
- Outdoor stairs and steps
- Landscape and garden feature lighting
- Pathway and walkway illumination
- Drive-over inground lighting
- Architectural accent lighting
- Residential and commercial outdoor areas
Standards & Compliance
- Applicable luminaire safety framework: AS/NZS 60598.1, Luminaires — General requirements and tests
- Applicable extra-low-voltage luminaire framework: AS/NZS 60598.2.23, Particular requirements for extra-low-voltage lighting systems
Environmental Benefits
- LED technology provides lower energy consumption than equivalent halogen lighting
- 50,000-hour rated LED lifespan can reduce replacement frequency and material waste
- 316 stainless steel construction is durable and recyclable at end of service life
- Selectable colour temperature supports application-appropriate lighting without replacing the fitting
Warranty Information
5-year replacement warranty stated by Domus Lighting for the EMIT-85 series. Warranty eligibility requires installation by a licensed electrician and compliance with the manufacturer's installation guidelines. Warranty is subject to Domus Lighting's current warranty statement and Australian Consumer Law.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors, subject to distributor stock levels.
