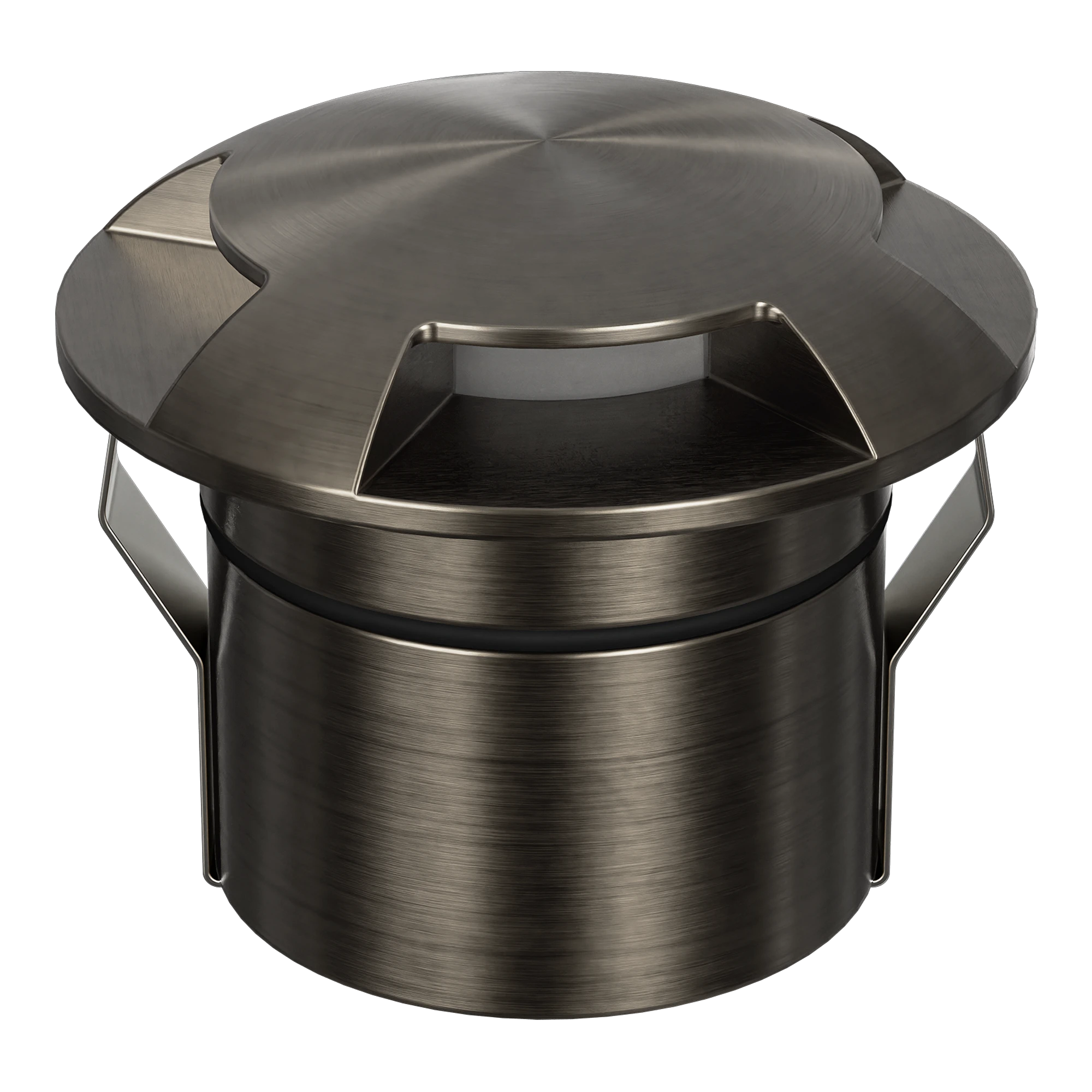

Emit Deck Light 85mm Tri-Colour 12/24V 3-Way Antique Brass Domus
Domus Emit 85mm LED deck light, 4/6W, tri-colour, 36 deg beam, 12/24V DC, 3-way fascia, antique brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emit-85 Tri-Colour 3-Way Inground Light, 85mm LED Deck Light, 3-Way Inground Feature Light
Technical Specifications
- Light Type: Integrated CREE LED inground and deck light
- Variant: 3-way fascia
- Finish: Antique brass
- Power: 6W
- Input Voltage: 12/24V DC
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Beam Angle: 36° standard; optional 19° and 60° lenses available
- Lumen Output: 406lm at 3000K, 460lm at 4000K, 453lm at 5500K
- CRI: ≥90
- IP Rating: IP67
- IK Rating: IK10
- Dimming: Non-dimmable
- LED Lifespan: 50,000 hours
- Load Rating: 1500kg drive-over
- Driver Requirement: 12V or 24V constant-voltage LED driver; wire fittings in parallel
- Classification: Class III
- Operating Temperature: -20°C to 40°C
- Dimensions (H x L x W): 110mm x 85mm x 85mm
- Weight: 0.65 kg
Key Features
- Selectable tri-colour output for warm white, neutral white or white light
- Three-way fascia provides directional feature-lighting effects
- Antique brass finish for exterior architectural and landscape applications
- IP67-rated construction for suitable outdoor inground installations
- IK10 impact protection and 1500kg drive-over load rating
- 36° beam angle supplied as standard
- Compatible with optional honeycomb, opal diffuser and linear lens accessories
- Requires a separate compatible 12V or 24V DC LED driver
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Use a compatible 12V or 24V DC constant-voltage LED driver, connect fittings in parallel, and follow the manufacturer's installation instructions and applicable electrical requirements.
Applications
- Deck and patio lighting
- Landscape and garden feature lighting
- Pathway and stair lighting
- Architectural accent lighting
- Drive-over inground lighting where the 1500kg load rating is suitable
- Residential and commercial outdoor feature-lighting installations
Standards & Compliance
- AS/NZS 60598.1: applicable general safety requirements for luminaires
- AS/NZS 60598.2.13: applicable particular requirements for ground-recessed luminaires
- AS/NZS 3000: applicable wiring and installation requirements; product compliance certification was not explicitly stated in the supplied manufacturer information
Environmental Benefits
- LED technology provides lower energy consumption than equivalent halogen lighting
- 50,000-hour rated LED lifespan can reduce replacement frequency and associated waste
- Metal fascia and housing components may be recyclable at end of service life, subject to local recycling facilities
- Selectable colour temperature can help avoid over-lighting by matching output to the application
Warranty Information
5-year replacement warranty stated by Domus Lighting for the EMIT-85 series, subject to the manufacturer's warranty terms, correct installation and installation by a licensed electrician.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting retailers.
