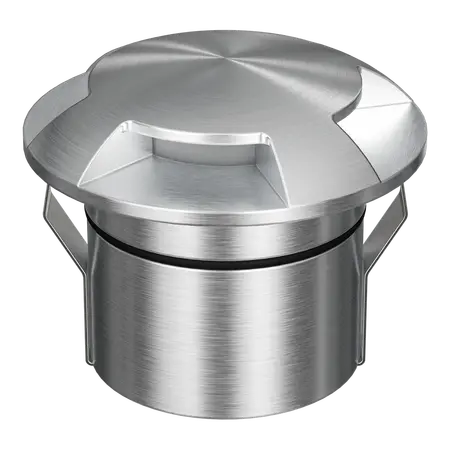

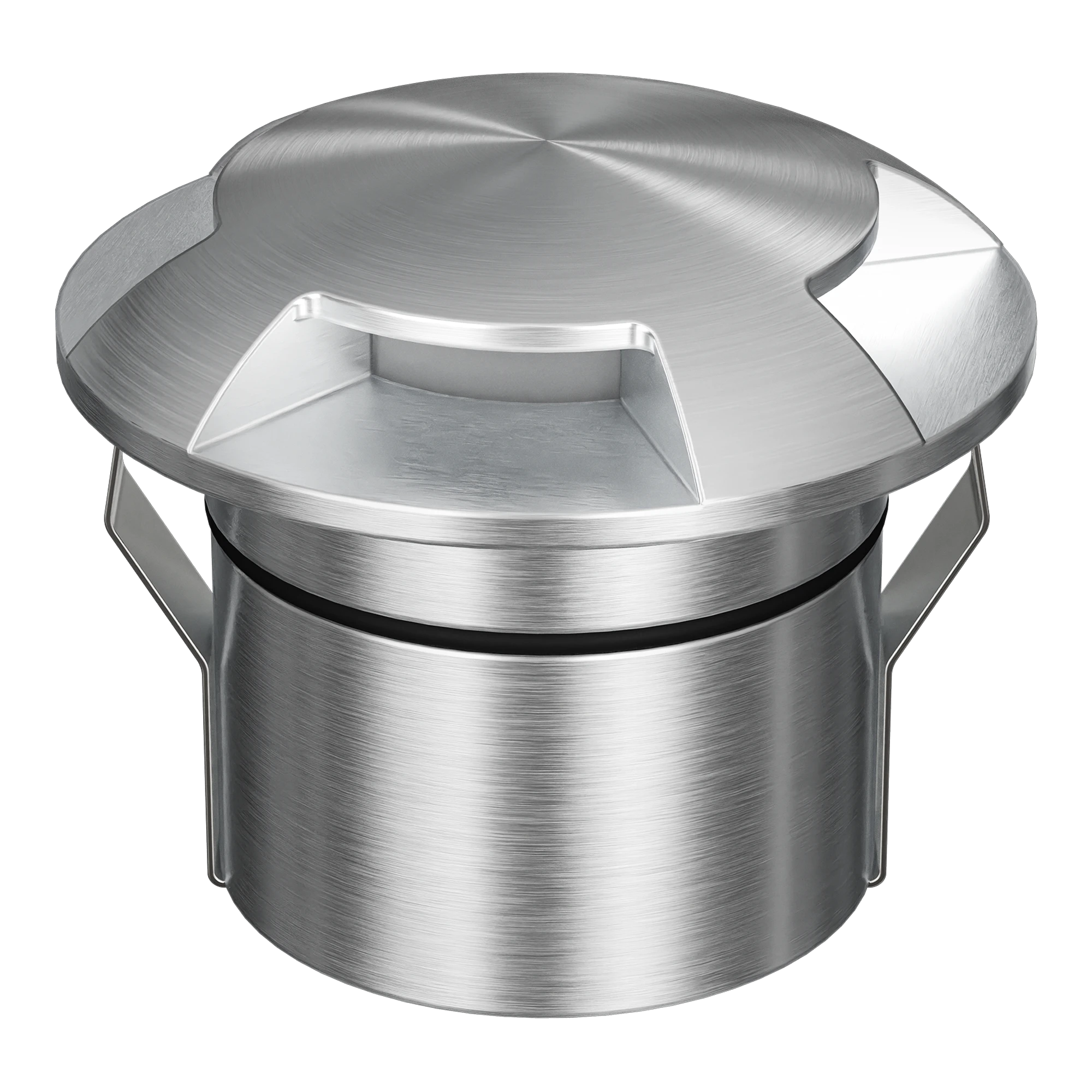

Emit Deck Light 85mm Tri-Colour 12/24V 4-Way 316 Stainless Domus
Domus Emit 85mm LED deck light, 4/6W, tri-colour, 36 deg beam, 12/24V DC, 4-way fascia, 316 stainless. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus EMIT-85-TRIO-4WAY-STS, 85mm LED Inground Light, Tri-Colour Recessed Deck Light, 4-Way Inground Uplight
Technical Specifications
- Power: 4W/6W, variant-dependent
- Input Voltage: 12/24V DC
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Ingress Protection: IP67
- Impact Rating: IK10
- Material: 316 stainless steel
- CRI: ≥90
- LED Type: CREE
- Lifespan: 50,000 hours
- Drive-Over Rating: Up to 1,500kg
- Driver Requirement: 12/24V DC constant-voltage LED driver, wired in parallel
- Dimming: No
- Operating Temperature: -20°C to 40°C
- Cutout: Ø65mm without cannister or Ø82mm with cannister
- Classification: Class III
- Dimensions (H x L x W): 110mm x 85mm x 85mm
- Weight: 0.7 kg
Key Features
- Four-way fascia directs light in four directions
- Tri-colour selectable output for warm, neutral or cool white lighting
- 316 stainless-steel fascia for outdoor and coastal applications
- IP67-rated construction for protection against dust and temporary water immersion
- IK10 impact resistance and drive-over suitability
- 36° beam angle supplied as standard
- Optional 19° and 60° lenses, linear lens, honeycomb and opal diffuser available
- Suitable for deck, pathway, stair, landscape and architectural feature lighting
- Requires a separate 12/24V DC LED driver
Professional Installation Requirements
- Installation and connection should be performed by a licensed electrician. Use a compatible 12/24V DC constant-voltage LED driver, connect fittings in parallel, and follow the manufacturer's installation instructions and AS/NZS 3000 requirements.
Applications
- Timber and composite deck lighting
- Landscape and garden feature lighting
- Pathway and stair illumination
- Architectural facade and column lighting
- Drive-over inground lighting in suitable paved areas
- Residential and light-commercial outdoor feature lighting
Standards & Compliance
- AS/NZS 60598.1: General requirements and tests for luminaires
- AS/NZS 60598.2.2: Particular requirements for recessed luminaires
- AS/NZS 3000: Electrical installations and wiring requirements
Environmental Benefits
- LED light source provides lower energy consumption than equivalent halogen lighting
- 50,000-hour rated LED lifespan can reduce replacement frequency and material waste
- 316 stainless steel is durable and recyclable at end of service life
- 12/24V DC Class III operation supports low-voltage outdoor lighting systems
- Selectable colour temperature allows lighting output to be matched to the application without replacing the fitting
Warranty Information
5-year replacement warranty stated by Domus Lighting for the EMIT-85 series. Warranty eligibility requires installation by a licensed electrician and compliance with the manufacturer's installation guidelines; current Domus warranty conditions apply.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors.
