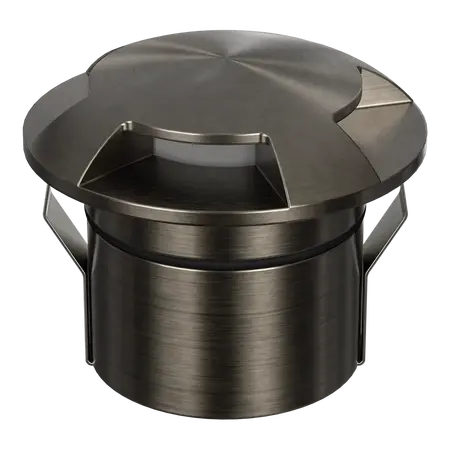

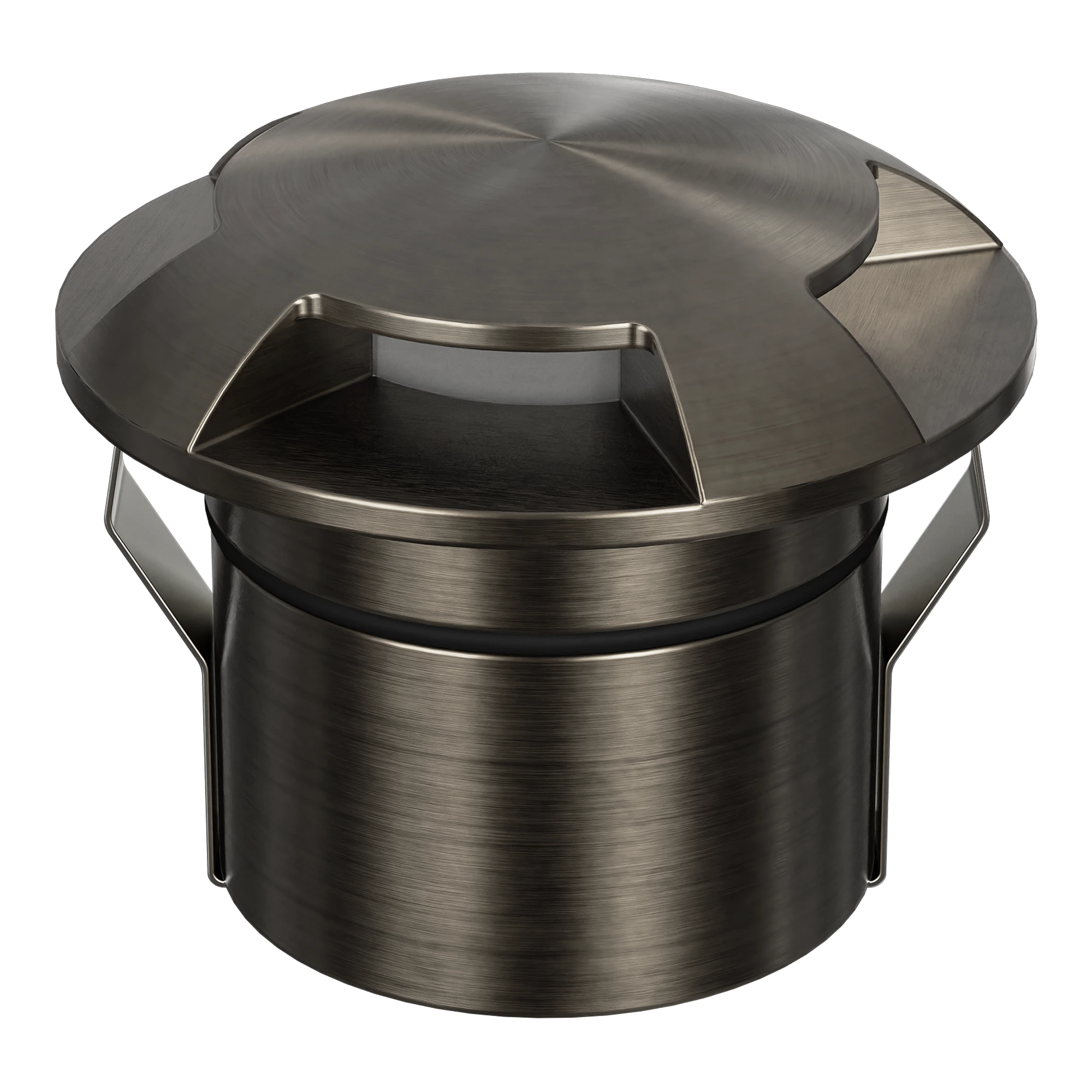

Emit Deck Light 85mm Tri-Colour 12/24V 4-Way Antique Brass Domus
Domus Emit 85mm LED deck light, 4/6W, tri-colour, 36 deg beam, 12/24V DC, 4-way fascia, antique brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus Emit-85-TRIO-AB 4-Way Inground Light, 85mm LED Deck Light, Tri-Colour Inground Luminaire
Technical Specifications
- Variant: 4-Way fascia, item variant 10211
- Wattage: 4W/6W
- Input Voltage: 12/24V DC constant-voltage supply
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Beam Angle: 36° standard; optional 19° and 60° lenses available
- LED Type: CREE
- CRI: ≥90
- Luminous Output: Approximately 28lm at 3000K, 33lm at 4000K and 32lm at 5500K
- Ingress Protection: IP67
- Impact Protection: IK10
- Dimming: Non-dimmable
- LED Lifespan: 50,000 hours
- Cutout: Ø65mm without canister or Ø82mm with canister
- Connection: Wire in parallel to a 12V or 24V DC LED driver
- Finish: Antique brass
- Driver: Requires a separate 12/24V DC constant-voltage LED driver
- Dimensions (H x L x W): 110mm x 85mm x 85mm
- Weight: 0.4 kg
Key Features
- Four-way antique brass fascia for directional feature lighting
- Selectable warm white, neutral white and white colour temperatures
- Suitable for deck, pathway, stair, landscape and architectural lighting
- IP67-rated construction for outdoor and inground applications
- IK10 impact resistance
- Compact 85mm overall diameter
- Optional beam lenses, honeycomb and diffuser accessories available
- Low-voltage 12/24V DC operation
- Non-dimmable LED fitting
Professional Installation Requirements
- Installation must be performed by a professional or licensed electrician. Use a compatible 12V or 24V DC constant-voltage LED driver, wire fittings in parallel and follow the manufacturer's installation instructions.
Applications
- Residential and commercial deck lighting
- Landscape and pathway feature lighting
- Outdoor stair and step illumination
- Architectural accent lighting
- Inground lighting around gardens, patios and entertainment areas
Standards & Compliance
- AS/NZS 60598.1:2025 or applicable current edition for general luminaire safety requirements
- AS/NZS 60598.2.2 may apply to the recessed installation configuration; product-specific compliance declaration and RCM details should be confirmed with Domus Lighting
Environmental Benefits
- LED technology provides lower energy consumption than equivalent halogen lighting
- 50,000-hour rated LED lifespan can reduce replacement frequency and material waste
- 12/24V DC operation supports efficient low-voltage lighting systems
- Replaceable driver arrangement can assist servicing and reduce whole-fitting disposal
Warranty Information
Domus product literature states a 5-year replacement warranty for the EMIT-85 series. Domus's current warranty statement lists exterior deck and inground lights as covered for 3 years residential and 12 months commercial, so the applicable warranty should be confirmed at purchase. Warranty eligibility requires installation by a licensed electrician and compliance with installation instructions.
Available Now
Available through Domus Lighting and authorised Australian lighting retailers and electrical wholesalers.
