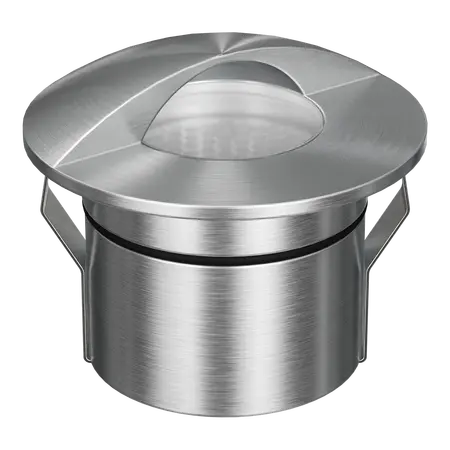

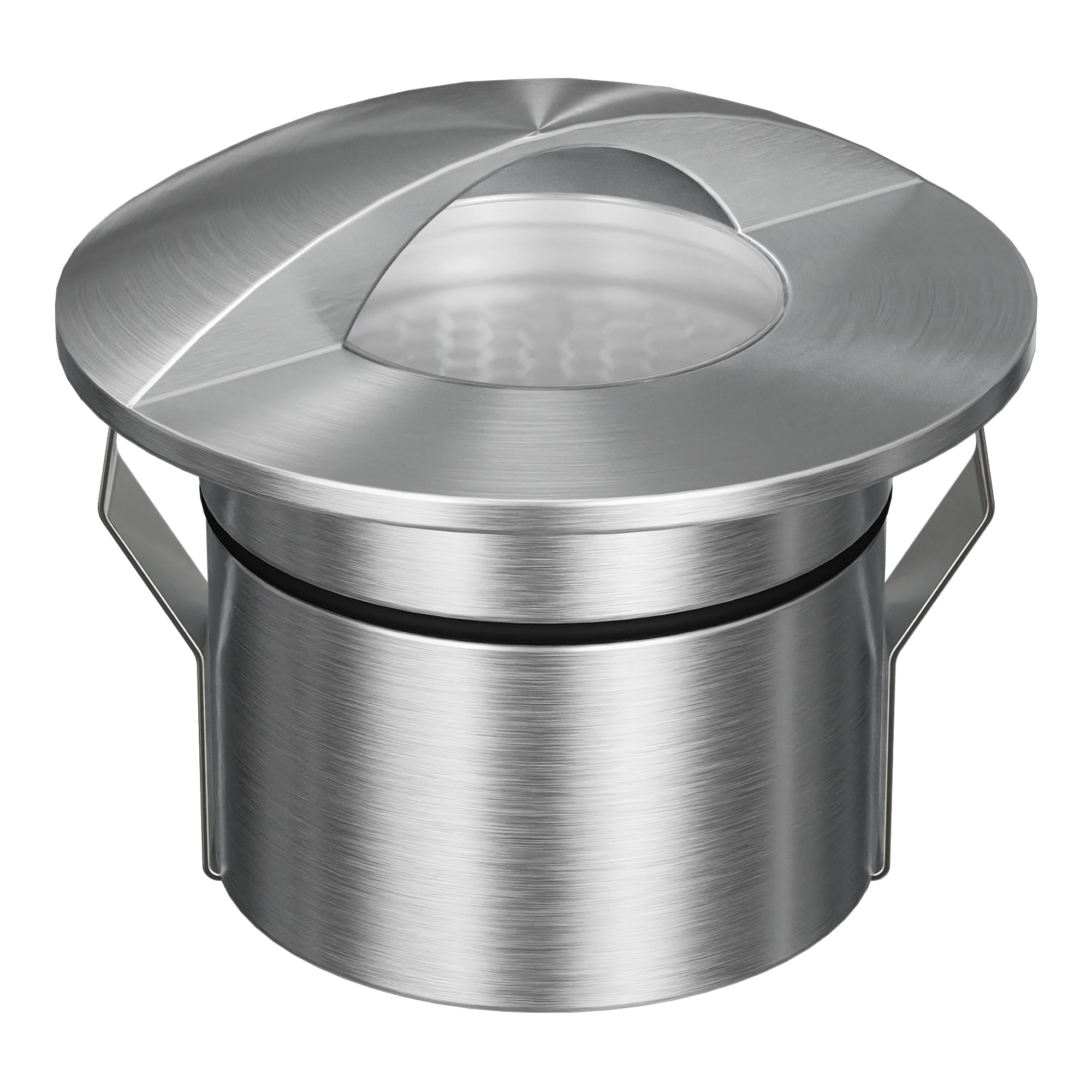

Emit Deck Light 85mm Tri-Colour 12/24V Eyelid 316 Stainless Domus
Domus Emit 85mm LED deck light, 4/6W, tri-colour, 36 deg beam, 12/24V DC, eyelid fascia, 316 stainless. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-85-TRIO-STS, Emit 85 Eyelid Inground Light, Stainless Steel LED Deck Light, Recessed Landscape Light
Technical Specifications
- Variant: EMIT-85-TRIO-STS
- Light Type: Integrated CREE LED inground and deck light
- Material: 316 stainless steel fascia and stainless steel body
- Power: 6W
- Input Voltage: 12/24V DC constant voltage
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Luminous Output: 226 lm at 3000K, 266 lm at 4000K, 253 lm at 5500K
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Colour Rendering Index: CRI ≥90
- Ingress Protection: IP67
- Impact Protection: IK10
- Load Rating: 1500 kg drive-over
- Dimming: No
- LED Lifespan: 50,000 hours
- Cut-out: 65 mm without cannister or 82 mm with cannister
- Operating Temperature: -20°C to 40°C
- Driver Requirement: 12 or 24V DC constant-voltage LED driver, wired in parallel
- Classification: Class III
- Dimensions (H x L x W): 80mm x 85mm x 85mm
- Weight: 0.45 kg
Key Features
- Tri-colour selectable output with 3000K, 4000K and 5500K settings
- Eyelid fascia helps direct light away from unwanted viewing angles
- 316 stainless steel finish for exterior and landscape installations
- IP67 protection for outdoor recessed applications
- IK10 impact resistance and 1500 kg drive-over load rating
- 36° beam angle supplied as standard
- Optional 19° and 60° beam lenses, honeycomb, linear lens and opal diffuser available
- Suitable for 12V or 24V DC constant-voltage systems
- Integrated LED design with 50,000-hour rated lifespan
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Connect only to a compatible 12V or 24V DC constant-voltage LED driver and install in accordance with the manufacturer's instructions and AS/NZS 3000. Ensure suitable drainage, sealing and cable-joint protection for the recessed outdoor installation.
Applications
- Residential deck and patio lighting
- Landscape and garden feature lighting
- Pathway and stair lighting
- Architectural façade and feature illumination
- Drive-over recessed exterior lighting
- Commercial outdoor and hospitality projects
Standards & Compliance
- AS/NZS 60598.1: Applicable general requirements and tests for luminaires; verify project-specific certification with the supplier
- AS/NZS 3000: Electrical installation and wiring requirements for connection of the luminaire and LED driver
Environmental Benefits
- LED technology provides lower energy consumption than comparable halogen or incandescent deck lighting
- 50,000-hour rated LED lifespan can reduce replacement frequency and installation waste
- 316 stainless steel components are durable and recyclable at end of service life
- Selectable colour temperature allows light output to be matched to the application, helping avoid unnecessary over-lighting
Warranty Information
Five-year replacement warranty for the tri-colour EMIT-85 range, subject to Domus Lighting warranty conditions. Warranty eligibility requires installation by a licensed electrician and compliance with the manufacturer's installation instructions. The warranty is generally replacement-only and does not cover removal or re-installation costs.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors, subject to distributor stock.
