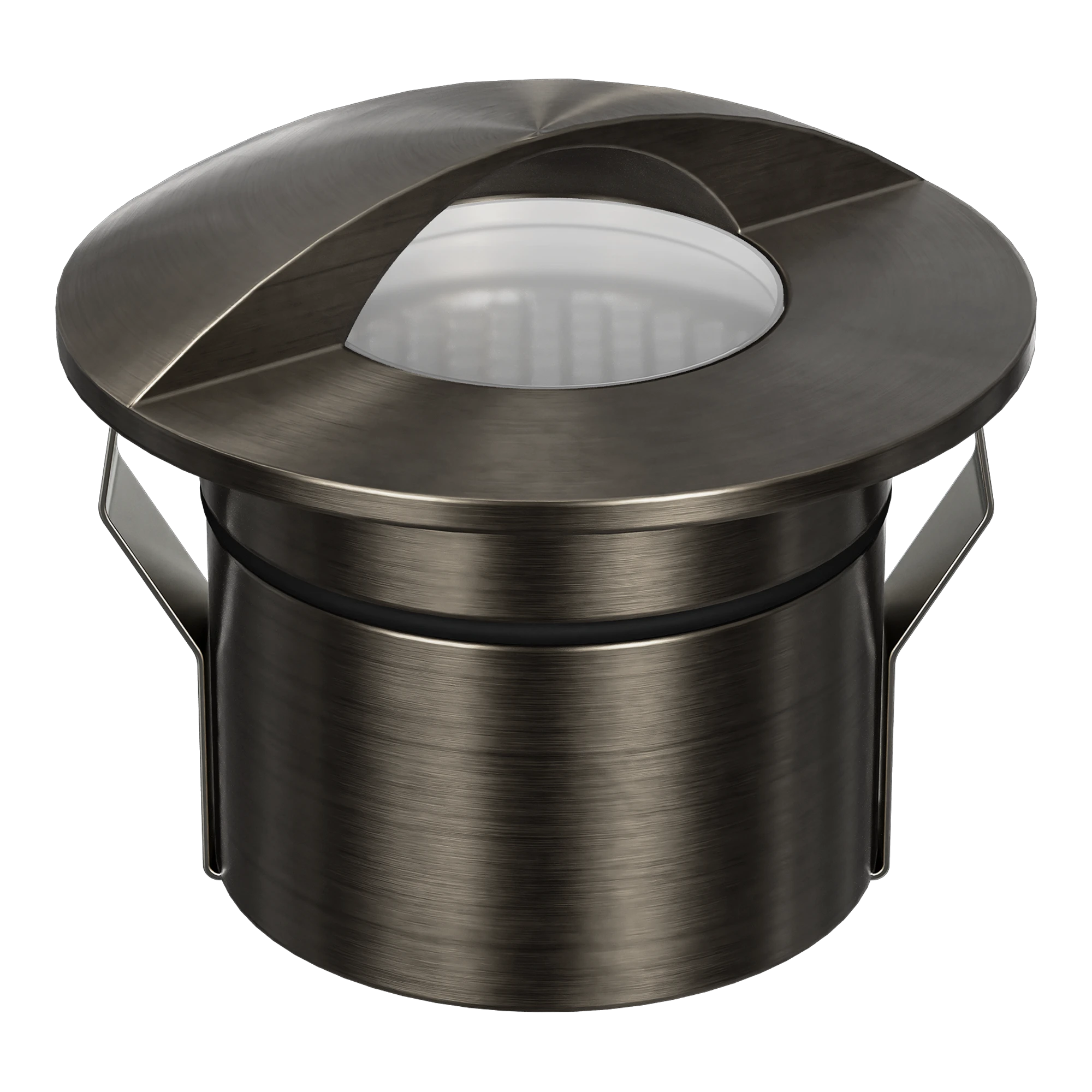

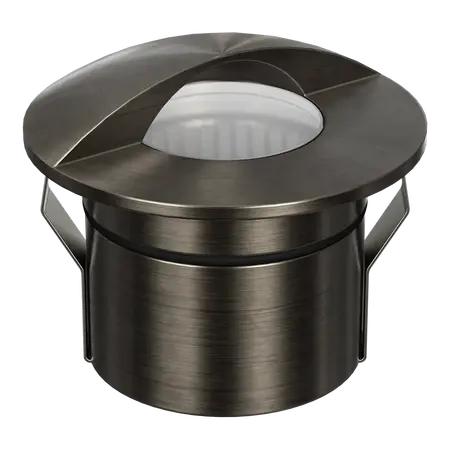

Emit Deck Light 85mm Tri-Colour 12/24V Eyelid Antique Brass Domus
Domus Emit 85mm LED deck light, 4/6W, tri-colour, 36 deg beam, 12/24V DC, eyelid fascia, antique brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-85-TRIO-AB, Antique Brass Inground Light, Tri-Colour Recessed Deck Light, Eyelid Inground Uplight
Technical Specifications
- Input Voltage: 12/24V DC constant voltage
- Power: 4W/6W LED output; 6W nominal variant
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Light Output: 226lm at 3000K, 266lm at 4000K and 253lm at 5500K for eyelid fascia
- LED Type: CREE
- Colour Rendering Index: CRI ≥90
- Ingress Protection: IP67
- Impact Protection: IK10
- Dimming: No
- Rated Life: 50,000 hours
- Cutout: 65mm without canister or 82mm with canister
- Driver Requirement: 12V or 24V DC LED constant-voltage driver, driver not included
- Wiring: Connect fittings in parallel
- Finish: Antique brass
- Installation Classification: Class III SELV luminaire
- Dimensions (H x L x W): 110mm x 85mm x 85mm
- Weight: 0.55 kg
Key Features
- Selectable tri-colour output for warm white, neutral white or cool white lighting
- Eyelid fascia directs light for subtle feature and pathway illumination
- IP67-rated construction for outdoor and inground applications
- IK10 impact resistance for use in deck and landscape environments
- 36° beam angle supplied as standard, with optional narrow and wide lenses
- Compatible with optional honeycomb, linear lens, opal diffuser and water-stop cable joint accessories
- Designed for use with 12V or 24V DC constant-voltage LED drivers
- Antique brass finish for architectural and landscape lighting schemes
Professional Installation Requirements
- Installation must be completed by a licensed electrician. Use a compatible 12V or 24V DC constant-voltage LED driver, wire fittings in parallel, follow the manufacturer's installation instructions and ensure all outdoor connections maintain the required IP rating.
Applications
- Timber and composite deck lighting
- Landscape and garden feature lighting
- Pathways, stairs and steps
- Architectural façade and feature-wall lighting
- Inground uplighting in residential and light-commercial projects
- Outdoor accent lighting around paving, columns and landscaped areas
Standards & Compliance
- AS/NZS 60598.1:2025 - Luminaires, general requirements and tests; product certification should be confirmed with the supplier
- AS/NZS 60598.2.2:2016 - Particular requirements for recessed luminaires, where applicable to the installation configuration
- AS/NZS 3000 - Electrical installations wiring requirements applicable to the associated installation and driver circuit
Environmental Benefits
- LED technology provides lower energy consumption than equivalent halogen feature lighting
- 50,000-hour rated life can reduce replacement frequency and material waste
- Selectable colour temperature allows suitable light levels and colour output without replacing the fitting
- Low-voltage 12V/24V DC operation supports efficient extra-low-voltage outdoor lighting systems
- Metal components and brass fascia can be recycled at end of service life where local recycling facilities accept them
Warranty Information
5-year replacement warranty as specified for the EMIT-85 series. Warranty eligibility requires purchase through an authorised distributor, installation by a licensed electrician and installation in accordance with Domus guidelines. Commercial and other application conditions may vary under the current Domus warranty statement.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
