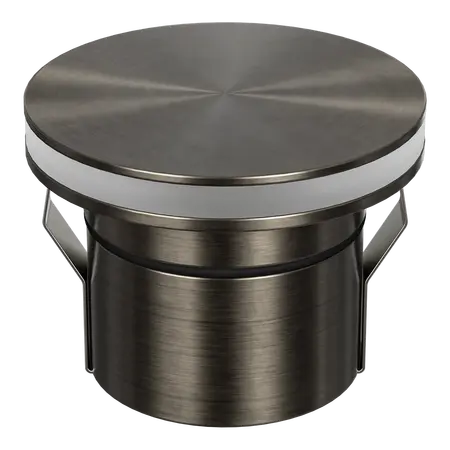

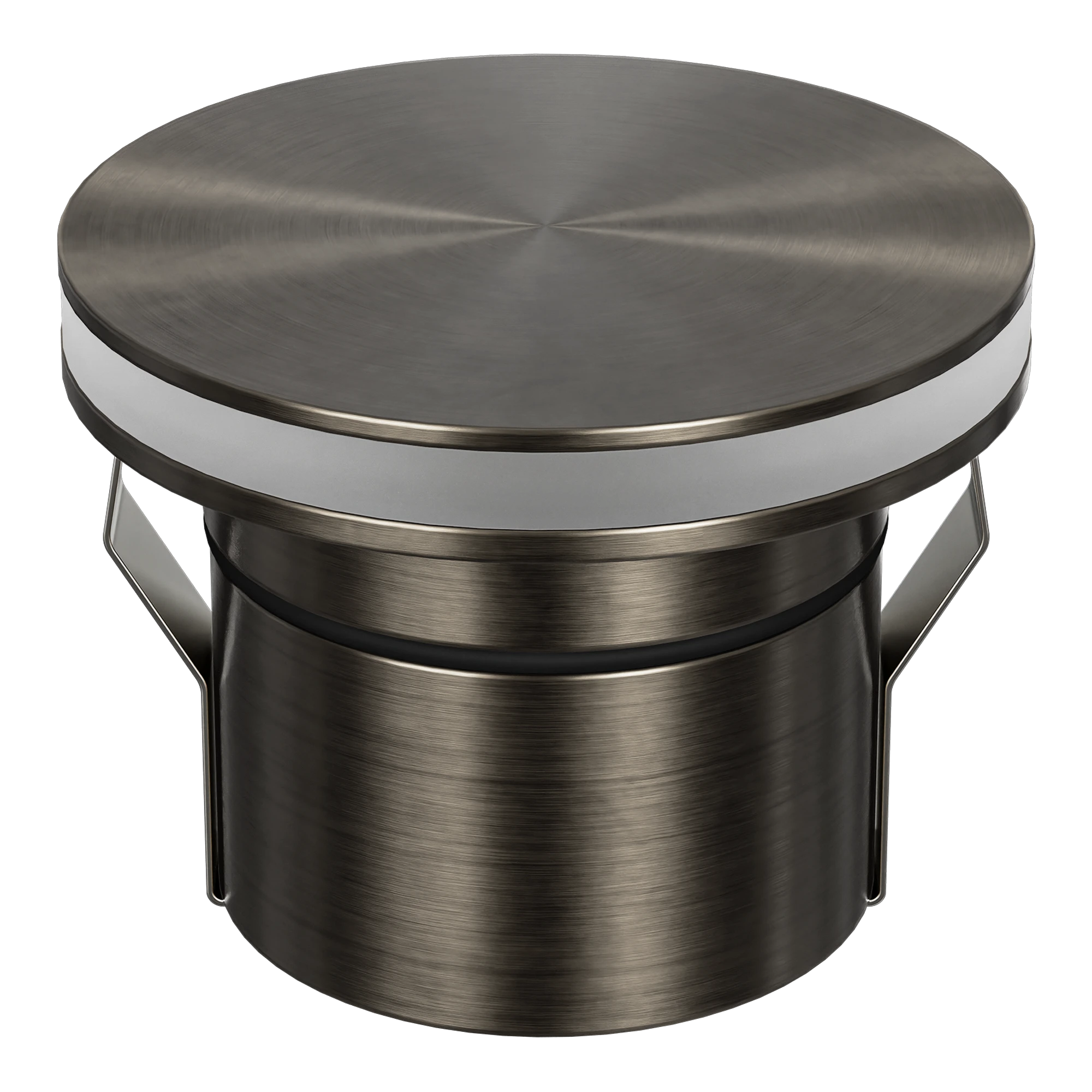

Emit Deck Light 85mm Tri-Colour 12/24V Halo Antique Brass Domus
Domus Emit 85mm LED deck light, 4/6W, tri-colour, 36 deg beam, 12/24V DC, halo fascia, antique brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emit 85 Halo Inground Light, Emit 85 Tri-Colour Deck Light, Antique Brass Recessed LED Deck Light
Technical Specifications
- Input Voltage: 12/24V DC constant voltage
- Power: 6W LED
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Luminous Output: 230 lm
- LED Type: CREE
- Colour Rendering Index: CRI ≥90
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Ingress Protection: IP67
- Impact Protection: IK10
- Electrical Classification: Class III
- Dimming: Non-dimmable
- LED Life: 50,000 hours
- Load Rating: 1,500 kg drive-over
- Cutout: 65 mm without canister or 82 mm with canister
- Driver Requirement: 12/24V DC constant-voltage LED driver, wired in parallel
- Operating Temperature: -20°C to 40°C
- Finish: Antique brass
- Dimensions (H x L x W): 80mm x 85mm x 85mm
- Weight: 0.75 kg
Key Features
- Selectable tri-colour operation for warm white, neutral white and cool white lighting
- Halo fascia for subtle architectural and feature lighting effects
- IP67-rated construction for outdoor and inground applications
- IK10 impact rating and 1,500 kg drive-over load rating
- Suitable for deck, pathway, stair, landscape and architectural lighting
- Optional 19° and 60° beam lenses, honeycomb, linear lens and opal diffuser available
- Requires a compatible constant-voltage LED driver
- Antique brass fascia finish
- Backed by a five-year replacement warranty
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Connect to a compatible 12/24V DC constant-voltage LED driver, wire luminaires in parallel, and follow the manufacturer's installation instructions. The driver and all connections must be suitably protected for the installation environment.
Applications
- Residential and commercial deck lighting
- Inground landscape and pathway lighting
- Feature lighting for stairs, columns and retaining walls
- Architectural accent lighting
- Outdoor garden and courtyard lighting
- Drive-over lighting areas where the specified load rating is suitable
Standards & Compliance
- AS/NZS 60598.1:2017 – general requirements and tests for luminaires
- AS/NZS 60598.2.2:2016 – particular requirements for recessed luminaires
- RCM marking shown in manufacturer product documentation
Environmental Benefits
- LED technology provides lower energy consumption than equivalent halogen lighting
- 50,000-hour rated LED life can reduce replacement frequency and associated waste
- Long-life metal construction supports extended service life
- Antique brass and metal components can be recovered through appropriate metal recycling streams
Warranty Information
Five-year replacement warranty as stated in the EMIT-85 Tri-Colour product datasheet. Warranty eligibility requires installation by a licensed electrician, use in accordance with the installation instructions, proof of purchase and suitable installation for the product's IP rating.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors.
