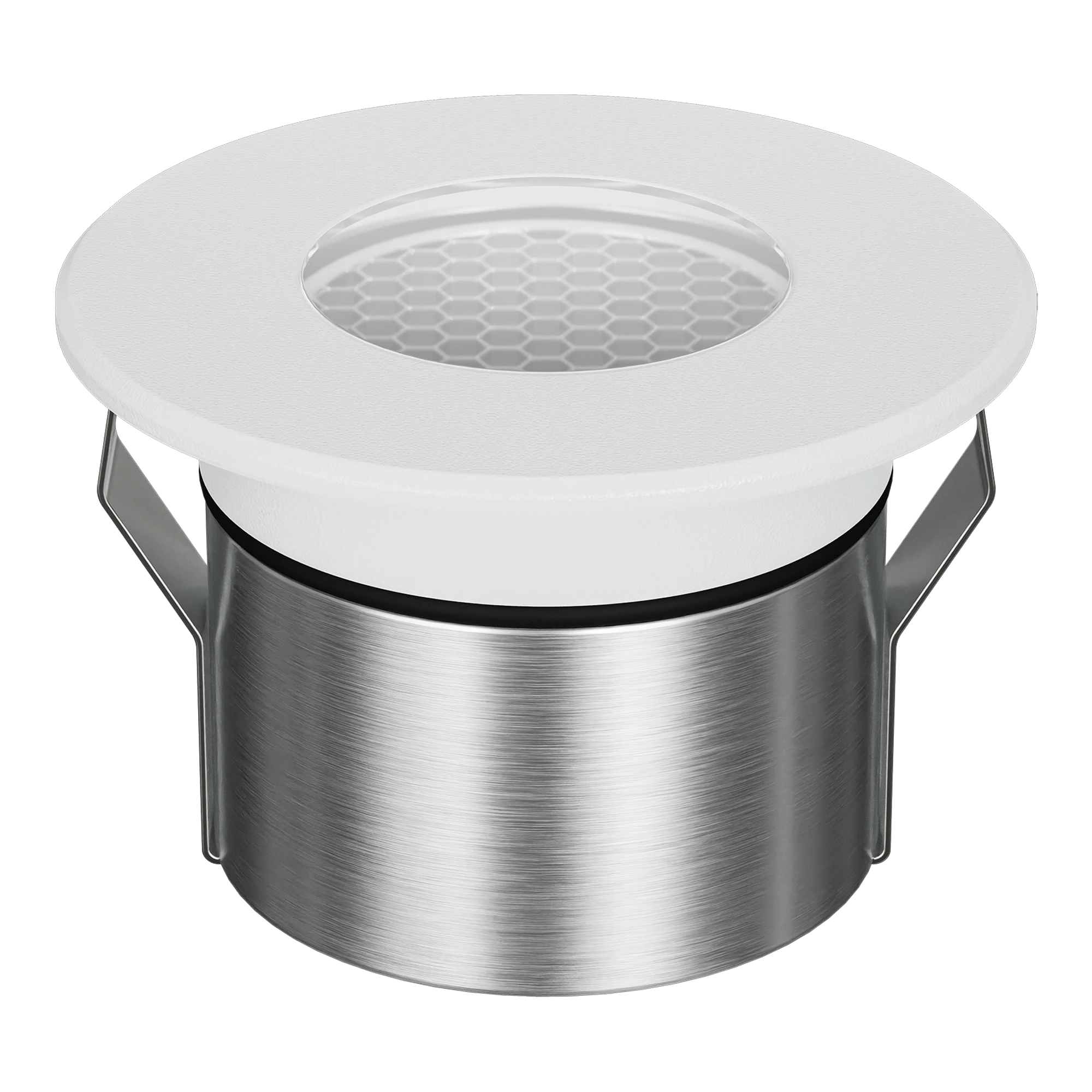

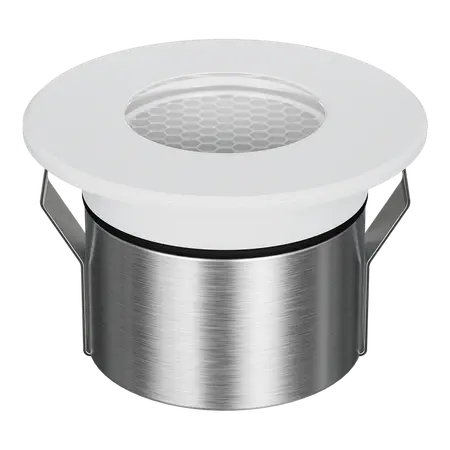

Emit Deck Light 85mm Tri-Colour 12/24V Round Open White Domus
Domus Emit 85mm LED deck light, 4/6W, tri-colour, 36 deg beam, 12/24V DC, round open fascia, white. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-85-TRIO-WHT, Emit 85 Inground Light, 85mm LED Deck Light, Tri-Colour Inground Light
Technical Specifications
- Variant: Tri-Colour round open
- Finish: White
- Power: 6W
- Input Voltage: 12/24V DC
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Lumens: 406lm at 3000K; 460lm at 4000K; 453lm at 5500K
- Beam Angle: 36° standard; optional 19° and 60° lenses
- LED Type: CREE
- Colour Rendering Index: CRI ≥90
- Ingress Protection: IP67
- Impact Protection: IK10
- Load Rating: 1500kg drive-over
- Dimming: No
- Operating Temperature: -20°C to 40°C
- LED Life: 50,000 hours
- Cut-out: 65mm without cannister; 82mm with cannister
- Driver Requirement: 12V or 24V constant-voltage LED driver, wired in parallel
- Classification: Class III
- Dimensions (H x L x W): 93mm x 85mm x 85mm
- Weight: 0.45 kg
Key Features
- Selectable warm white, neutral white and white colour temperatures
- Round open fascia for discreet architectural and landscape lighting
- Suitable for deck, pathway, stair, garden and inground applications
- IP67-rated construction for outdoor and inground environments
- IK10 impact rating and 1500kg drive-over load rating
- High colour rendering with CRI ≥90
- Compatible with optional beam angle lenses, honeycomb, linear lens and opal diffuser
- Requires a separate 12V or 24V DC constant-voltage LED driver
Professional Installation Requirements
- Installation must be performed by a professional electrician. Connect only to a compatible 12V or 24V DC constant-voltage LED driver and follow the manufacturer's installation instructions. Ensure cable joints and connections are suitably protected for the installation environment.
Applications
- Residential and commercial deck lighting
- Outdoor pathways and stairs
- Landscape and garden feature lighting
- Drive-over inground lighting
- Architectural accent lighting
- Poolside and outdoor entertaining areas where the installation conditions are suitable for the IP rating
Standards & Compliance
- AS/NZS 60598.1: Applicable general safety requirements for luminaires; product-specific certification should be confirmed from the supplier or manufacturer's compliance documentation.
- AS 60529: Applicable ingress-protection classification basis for the stated IP67 rating.
Environmental Benefits
- LED technology provides lower energy consumption than comparable halogen lighting.
- The stated 50,000-hour LED life can reduce replacement frequency and associated waste.
- Selectable colour temperature and optional lenses can help limit over-lighting by matching output to the application.
- The replaceable-driver design allows the power supply to be specified separately for the installation.
Warranty Information
Backed by a 5-year replacement warranty according to the Domus EMIT-85 Tri-Colour product datasheet. Warranty eligibility requires installation by a licensed electrician and installation in accordance with Domus guidelines.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
