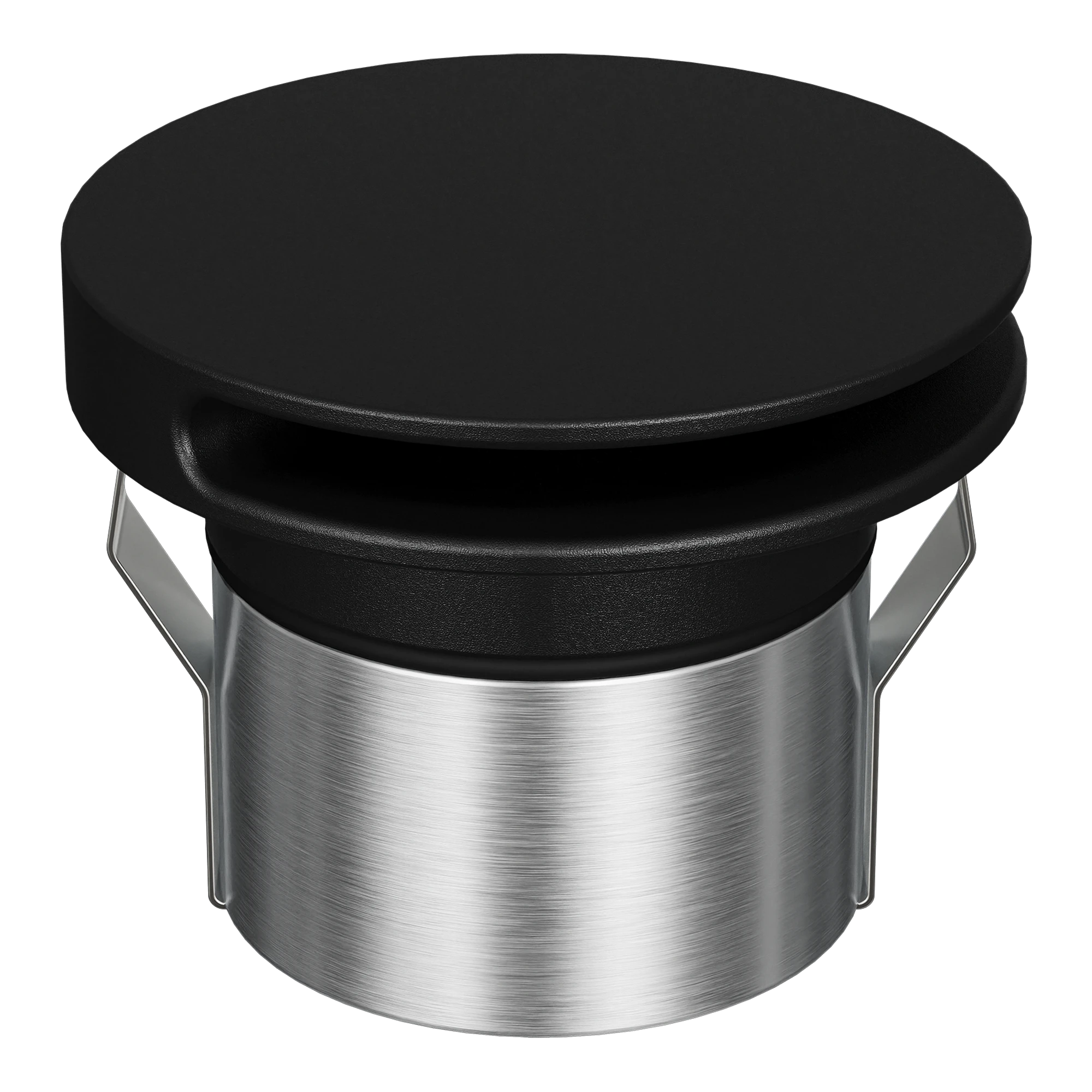

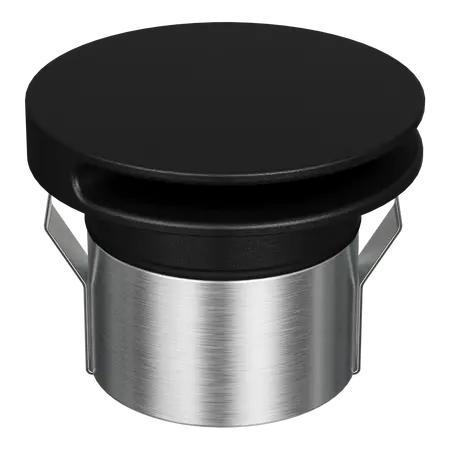

Emit Deck Light 85mm Tri-Colour 12/24V Round Slot Black Domus
Domus Emit 85mm LED deck light, 4/6W, tri-colour, 36 deg beam, 12/24V DC, round slot fascia, black. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-85 Tri-Colour Deck Light, Domus Emit Inground Light, 85mm LED Step Light, Round Slot Deck Light
Technical Specifications
- Light Type: LED inground and deck light
- Wattage: 6W
- Input Voltage: 12/24V DC constant voltage
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Luminous Output: 406 lm at 3000K, 460 lm at 4000K, 453 lm at 5500K
- Colour Rendering Index: CRI ≥90
- LED Type: CREE
- Ingress Protection: IP67
- Impact Protection: IK10
- Dimming: Not dimmable
- Load Rating: Up to 1500 kg drive-over
- Driver Requirement: Requires a 12/24V DC LED constant-voltage driver, wired in parallel
- Driver Compatibility: Compatible with AC/DC driver; Domus DC driver recommended
- Fascia: Round slot
- Finish: Black
- Classification: Class III
- Operating Temperature: -20°C to 40°C
- Rated Life: 50,000 hours
- Cutout: 65mm without cannister or 82mm with cannister
- Dimensions (H x L x W): 93mm x 85mm x 85mm
- Weight: 0.45 kg
Key Features
- Selectable tri-colour output of warm white, neutral white and white
- Black round slot fascia for low-glare feature and accent lighting
- Suitable for deck, pathway, stair, landscape and architectural lighting
- IP67-rated construction for outdoor and inground applications
- IK10 impact resistance and 1500kg drive-over load rating
- 36° beam angle supplied as standard
- Optional narrow, wide, linear, honeycomb and opal diffuser accessories
- Low-voltage 12/24V DC operation
- Long 50,000-hour LED service life
Professional Installation Requirements
- Installation must be performed by a professional or licensed electrician. Use a compatible 12/24V DC constant-voltage LED driver, wire fittings in parallel and follow the manufacturer's installation instructions. Ensure the fitting is installed within its IP67 application limits.
Applications
- Residential and commercial deck lighting
- Outdoor pathway and stair lighting
- Landscape and garden feature lighting
- Architectural accent lighting
- Inground and drive-over lighting installations
Standards & Compliance
- AS/NZS 60598.1: General requirements and tests for luminaires
- AS/NZS 60598.2.2: Particular requirements for recessed luminaires
- AS/NZS 3000: Electrical installations and low-voltage wiring requirements
Environmental Benefits
- LED technology provides lower energy consumption than equivalent halogen lighting
- 50,000-hour rated life can reduce replacement frequency and associated waste
- Low-voltage DC operation supports efficient extra-low-voltage lighting systems
- Stainless steel and metal components can be recovered through established metal recycling streams
Warranty Information
5-year replacement warranty for the EMIT-85 Tri-Colour inground and deck light, subject to Domus Lighting warranty conditions. Warranty eligibility requires installation by a licensed electrician and compliance with the installation instructions.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
