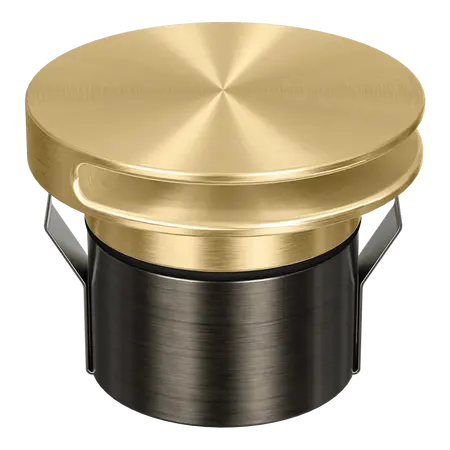

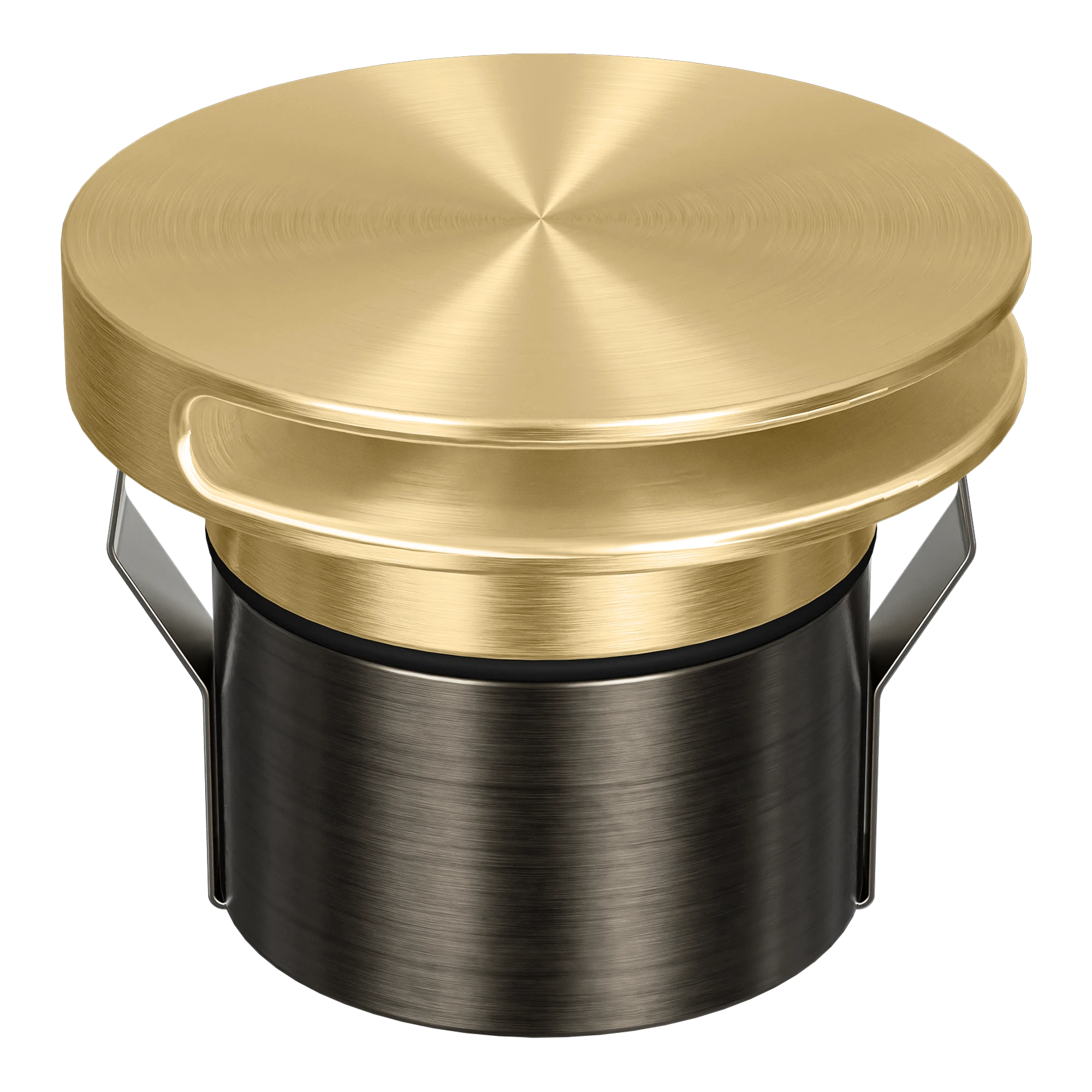

Emit Deck Light 85mm Tri-Colour 12/24V Round Slot Brass Domus
Domus Emit 85mm LED deck light, 4/6W, tri-colour, 36 deg beam, 12/24V DC, round slot fascia, brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus Emit 85mm Deck Light, Tri-Colour Inground Light, Brass Recessed Ground Light, 12V/24V LED Deck Light
Technical Specifications
- Light Source: CREE LED
- Power: 6W
- Input Voltage: 12/24V DC constant voltage
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Lumen Output: 230 lm at each selectable colour temperature
- Colour Rendering Index: ≥90
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Ingress Protection: IP67
- Impact Protection: IK10
- Load Rating: 1500 kg drive-over rated
- LED Lifespan: 50,000 hours
- Dimming: Non-dimmable
- Electrical Classification: Class III
- Operating Temperature: -20°C to 40°C
- Driver Requirement: 12/24V DC constant-voltage LED driver, wired in parallel
- Driver Included: No
- Material: Brass metalware with inground housing
- Dimensions (H x L x W): 105mm x 85mm x 85mm
- Weight: 0.8 kg
Key Features
- Tri-colour selectable lighting with warm white, neutral white and white settings
- Round slot fascia for directional architectural and landscape lighting effects
- IP67-rated construction for outdoor inground and deck applications
- IK10 impact rating and 1500 kg drive-over rating
- 36° standard beam angle with optional 19° and 60° lenses
- High colour rendering with CRI of at least 90
- Built-in water-stop cable joint
- Compatible with 12V or 24V DC constant-voltage LED drivers
- 5-year replacement warranty
Professional Installation Requirements
- Installation must be performed by a professional or licensed electrician. Use a suitable 12/24V DC constant-voltage LED driver, wire luminaires in parallel, and complete installation in accordance with AS/NZS 3000 and the manufacturer's installation instructions.
Applications
- Residential deck and entertaining areas
- Landscape and pathway lighting
- Driveways and pedestrian paths
- Stair and step illumination
- Architectural feature lighting
- Outdoor commercial and hospitality areas
- Inground and drive-over lighting installations
Standards & Compliance
- AS/NZS 60598.1:2017 for general luminaire requirements and tests, as applicable
- AS/NZS 3000 for electrical installation and wiring requirements
Environmental Benefits
- Low 6W LED power consumption supports reduced operating energy use compared with higher-wattage conventional light sources
- 50,000-hour LED lifespan can reduce replacement frequency and associated waste
- Brass construction is durable and recyclable at end of service life
- 12/24V DC Class III operation supports extra-low-voltage outdoor lighting systems
- IP67 construction helps protect the luminaire from moisture and extend service life
Warranty Information
5-year replacement warranty for the EMIT-85 Tri-Colour inground light, subject to Domus Lighting warranty conditions, licensed installation and installation in accordance with manufacturer instructions.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
