Trade Discount 25%

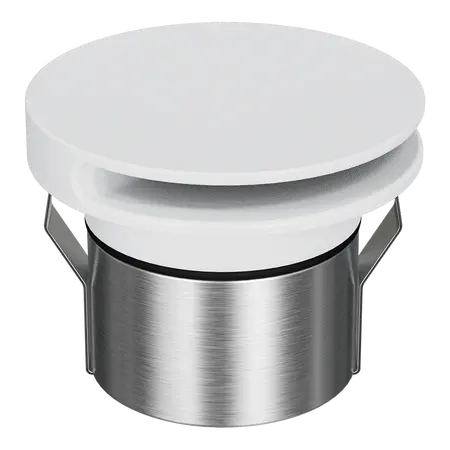

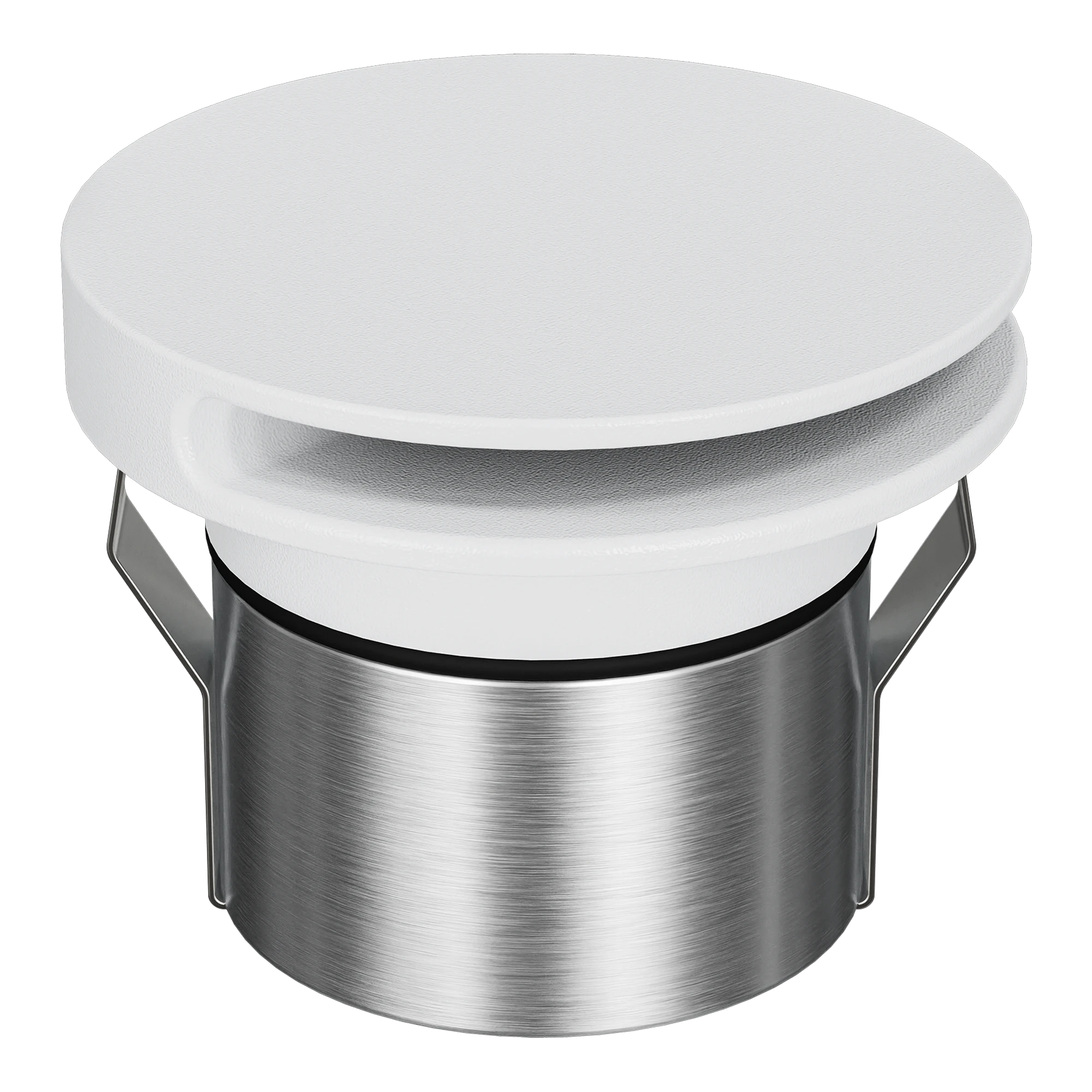

Emit Deck Light 85mm Tri-Colour 12/24V Round Slot White Domus
Domus Emit 85mm LED deck light, 4/6W, tri-colour, 36 deg beam, 12/24V DC, round slot fascia, white. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-85-TRIO-RND-SLOT, Emit 85 LED Inground Light, Tri-Colour Inground Light, LED Deck Light
Technical Specifications
- Item Number: EMIT-85-TRIO-RND-SLOT
- Variant ID: 11560
- Light Source: CREE LED
- Power: 6W
- Input Voltage: 12/24V DC
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Colour Rendering Index: CRI ≥90
- Luminous Output: 230 lm at 3000K, 4000K and 5500K
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Ingress Protection: IP67
- Impact Protection: IK10
- Load Rating: 1500 kg drive-over
- Dimming: No
- Operating Temperature: -20°C to 40°C
- LED Lifespan: 50,000 hours
- Driver Requirement: 12/24V DC constant-voltage LED driver, wired in parallel
- Classification: Class III
- Finish: White
- Dimensions (H x L x W): 105mm x 85mm x 85mm
- Weight: 0.45 kg
Key Features
- Selectable warm white, neutral white and cool white colour temperatures
- Round slot fascia for discreet feature and accent lighting
- Suitable for deck, landscape, pathway, stair and architectural lighting
- IP67-rated construction for outdoor and inground applications
- IK10 impact resistance and 1500 kg drive-over load rating
- 36° beam angle supplied as standard
- Compatible with optional beam lenses, honeycomb and opal diffuser accessories
- Requires a separate 12/24V DC constant-voltage LED driver
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Connect only to a suitable 12/24V DC constant-voltage LED driver and install in accordance with the manufacturer's instructions and AS/NZS 3000. Ensure correct drainage, sealing and cable-joint protection for inground use.
Applications
- Residential and commercial deck lighting
- Landscape and garden feature lighting
- Pathway and stair lighting
- Architectural accent lighting
- Inground and drive-over outdoor lighting
Standards & Compliance
- AS/NZS 3000:2018 – Electrical installations, applicable to the installation of the low-voltage lighting circuit
- AS/NZS 60598.1 – General safety requirements for luminaires
- IEC 60598-2-13 – Particular requirements for ground recessed luminaires; verify the supplier's product declaration for the Australian/NZ edition
Environmental Benefits
- LED technology provides lower energy consumption than comparable halogen lighting
- 50,000-hour rated LED lifespan can reduce replacement frequency and product waste
- Selectable colour temperature helps avoid over-lighting by allowing the output colour to be matched to the application
- Low-voltage Class III operation supports use with efficient 12/24V DC lighting systems
Warranty Information
Five-year replacement warranty stated on the product page. Warranty claims require purchase through an authorised distributor, installation by a licensed electrician and compliance with the manufacturer's installation guidelines.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
