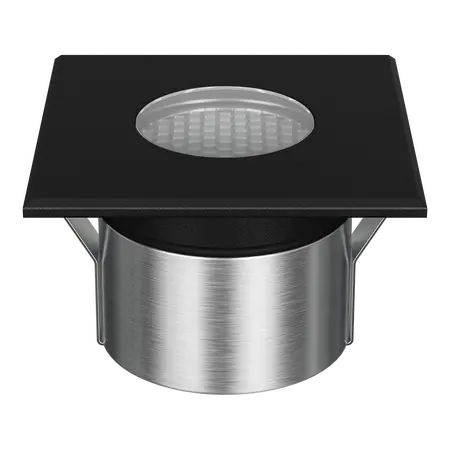

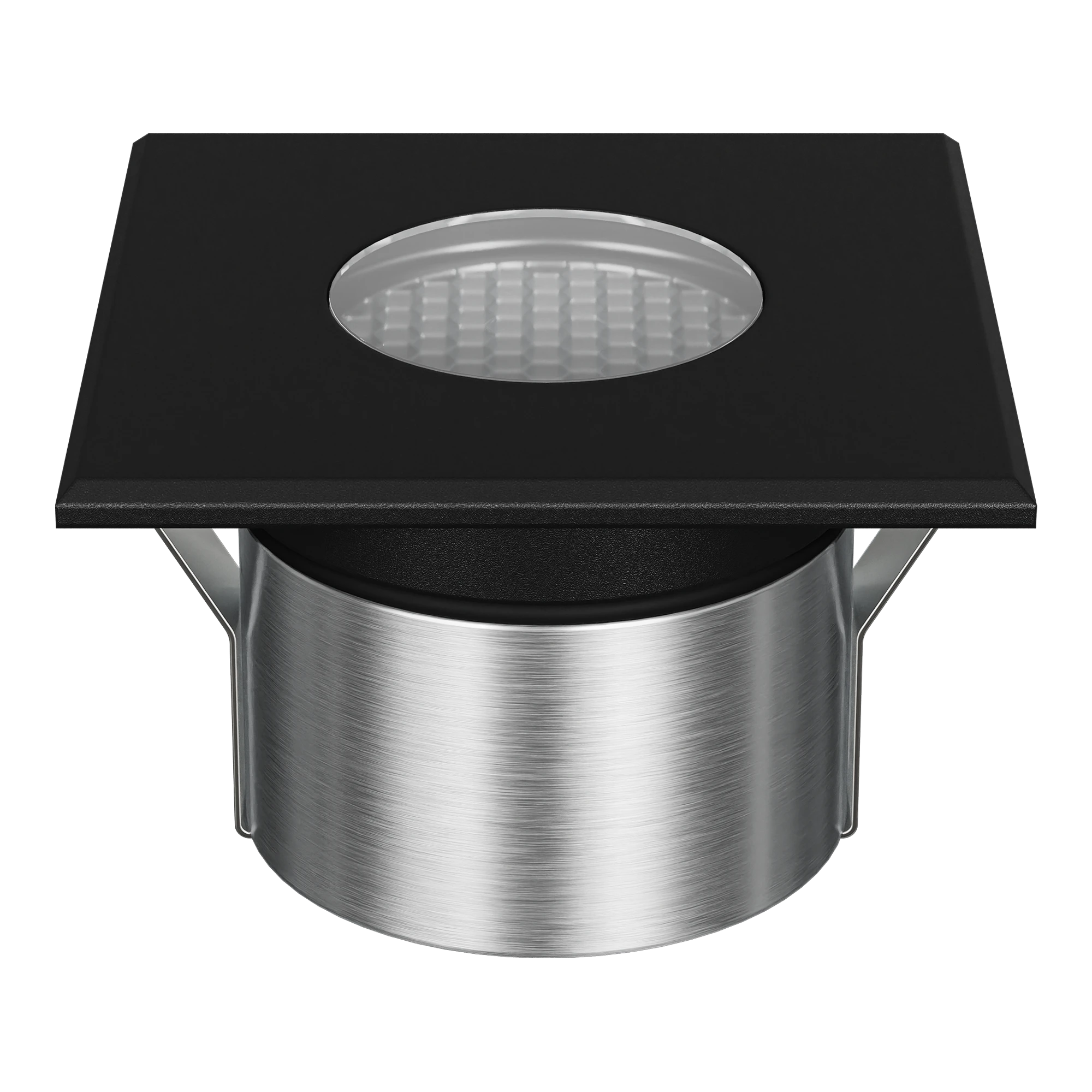

Emit Deck Light 85mm Tri-Colour 12/24V Square Open Black Domus
Domus Emit 85mm LED deck light, 4/6W, tri-colour, 36 deg beam, 12/24V DC, square open fascia, black. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emit-85-TRIO-BLK, Domus Emit 85 LED Deck Light, Tri-Colour Inground Light, Square Open Deck Light
Technical Specifications
- Input Voltage: 12/24V DC
- Power: 6W
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Lumens: 406lm at 3000K, 460lm at 4000K, 453lm at 5500K
- Beam Angle: 36° standard; optional 19° and 60° lenses
- LED Type: CREE
- Colour Rendering Index: CRI ≥90
- Ingress Protection: IP67
- Impact Protection: IK10
- Electrical Classification: Class III
- Dimming: No
- Lifespan: 50,000 hours
- Load Rating: 1,500kg drive-over
- Driver Requirement: 12/24V DC constant-voltage LED driver, wired in parallel
- Finish: Black
- Fascia: Square open
- Dimensions (H x L x W): 93mm x 85mm x 85mm
- Weight: 0.45 kg
Key Features
- Selectable tri-colour output for warm white, neutral white or cool white illumination
- Suitable for inground, deck, pathway, stair and architectural feature lighting
- Compact 85mm square fascia with 65mm cut-out without cannister
- IP67-rated construction for outdoor and inground applications
- IK10 impact resistance and 1,500kg drive-over load rating
- 36° standard beam angle with optional narrow and wide beam lenses
- Compatible with optional honeycomb, linear lens and opal diffuser accessories
- Low-voltage 12/24V DC operation
- 5-year replacement warranty stated by Domus for this product series
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Use a compatible 12/24V DC constant-voltage LED driver, wire fittings in parallel, and follow the manufacturer's installation instructions. Ensure the power supply is isolated before fitting.
Applications
- Residential and commercial deck lighting
- Inground pathway and stair lighting
- Landscape and garden feature lighting
- Architectural accent and facade lighting
- Drive-over outdoor lighting installations
Standards & Compliance
- AS/NZS 60598.1:2025 – applicable general safety requirements for luminaires; product-specific certification is not stated in the available documentation
- AS/NZS 60598.2.13:2013 – applicable particular requirements reference for ground-recessed luminaires; product-specific certification is not stated in the available documentation
Environmental Benefits
- LED technology provides efficient illumination with lower energy use than comparable halogen fittings
- Published 50,000-hour LED lifespan can reduce replacement frequency and product waste
- Low-voltage Class III operation supports efficient extra-low-voltage lighting systems
- Metal lighting components can generally be recovered for recycling at end of service life
Warranty Information
5-year replacement warranty stated on the EMIT-85-TRIO product datasheet and Domus product page, subject to Domus warranty conditions, licensed electrician installation and installation in accordance with the manufacturer's instructions.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
