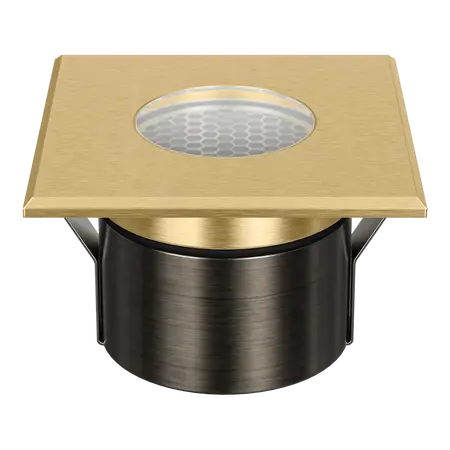

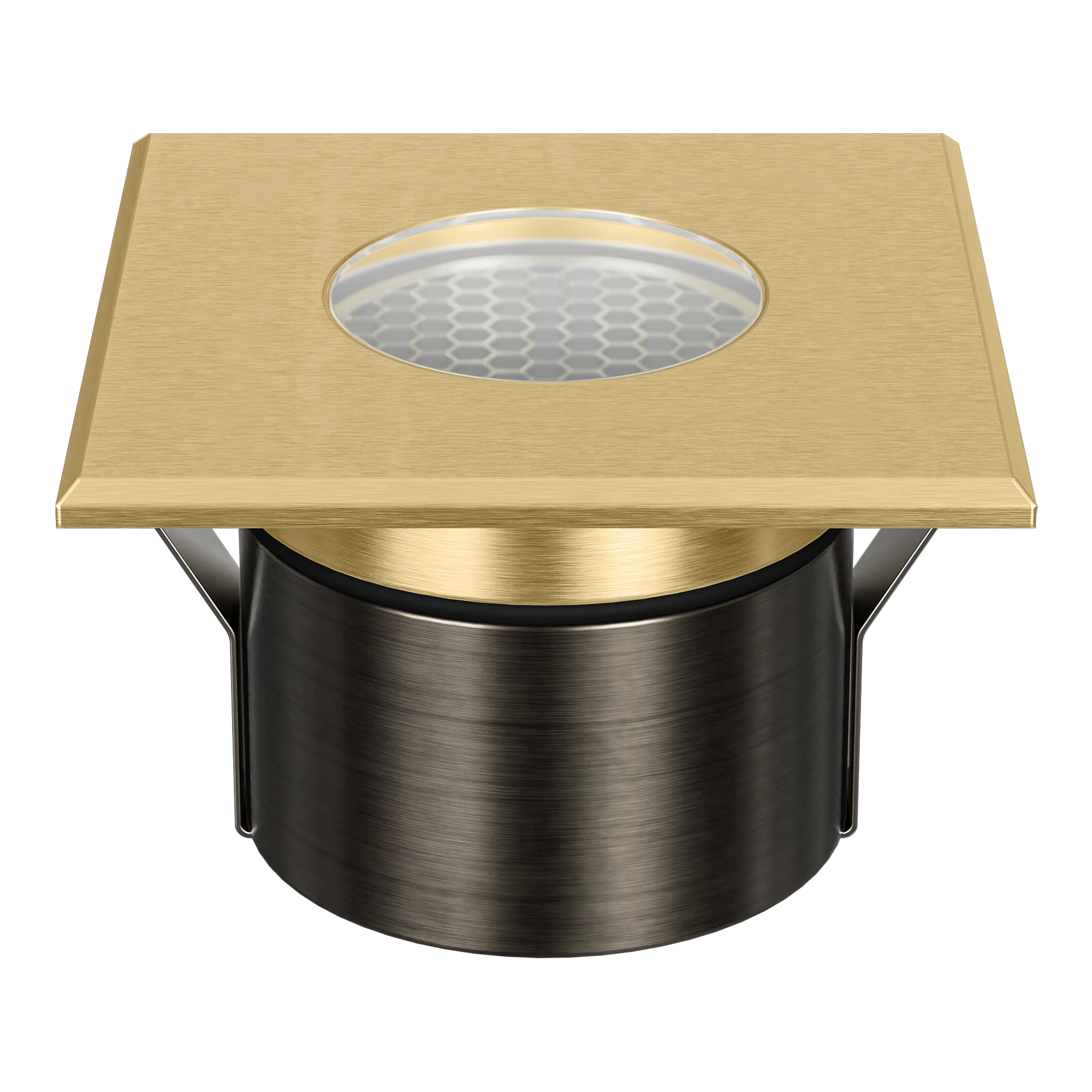

Emit Deck Light 85mm Tri-Colour 12/24V Square Open Brass Domus
Domus Emit 85mm LED deck light, 4/6W, tri-colour, 36 deg beam, 12/24V DC, square open fascia, brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-85-TRIO-BRS, Domus Emit 85 Inground Light, 85mm LED Deck Light, Tri-Colour Inground Uplight
Technical Specifications
- Model: EMIT-85-TRIO-BRS
- Variant ID: 10196
- Light Source: CREE LED
- Power: 6W
- Input Voltage: 12/24V DC constant voltage
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Colour Rendering Index: ≥90
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Luminous Flux: 406lm at 3000K, 460lm at 4000K, 453lm at 5500K
- Ingress Protection: IP67
- Impact Protection: IK10
- Dimming: No
- LED Life: 50,000 hours
- Load Rating: 1500kg drive-over
- Operating Temperature: -20°C to 40°C
- Installation Cutout: 65mm without cannister or 82mm with cannister
- Driver Requirement: 12/24V DC constant-voltage LED driver, wired in parallel
- Dimensions (H x L x W): 93mm x 85mm x 85mm
- Weight: 0.35 kg
Key Features
- Tri-colour selectable output with 3000K, 4000K and 5500K settings
- Square open fascia in brushed brass finish
- Suitable for inground, deck, pathway, stair and architectural accent lighting
- IP67-rated construction for outdoor applications
- IK10 impact rating and 1500kg drive-over load rating
- 36° beam angle supplied as standard
- Optional narrow and wide beam lenses, honeycomb and diffuser accessories available
- Class III low-voltage luminaire
Professional Installation Requirements
- Installation should be completed by a licensed electrician in accordance with the Domus installation instructions and AS/NZS 3000. Use a compatible 12/24V DC constant-voltage LED driver, wire fittings in parallel, and isolate the power supply before installation.
Applications
- Residential and commercial deck lighting
- Inground pathway and landscape lighting
- Architectural feature and accent lighting
- Stair and garden lighting
- Drive-over outdoor lighting installations
Standards & Compliance
- AS/NZS 60598.1:2025 - Luminaires, general requirements and tests
- AS/NZS 60598.2.2 - Particular requirements for recessed luminaires
- AS/NZS 3000 - Electrical installations and low-voltage wiring practices
Environmental Benefits
- LED technology provides lower energy consumption than comparable halogen lighting
- 50,000-hour rated LED life can reduce replacement frequency and material waste
- Brass components can be recycled at end of service life
- Low-voltage 12/24V DC operation supports efficient extra-low-voltage lighting systems
Warranty Information
5-year replacement warranty as stated on the current Domus product datasheet and product page. Warranty claims require installation by a licensed electrician and compliance with Domus installation requirements.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
