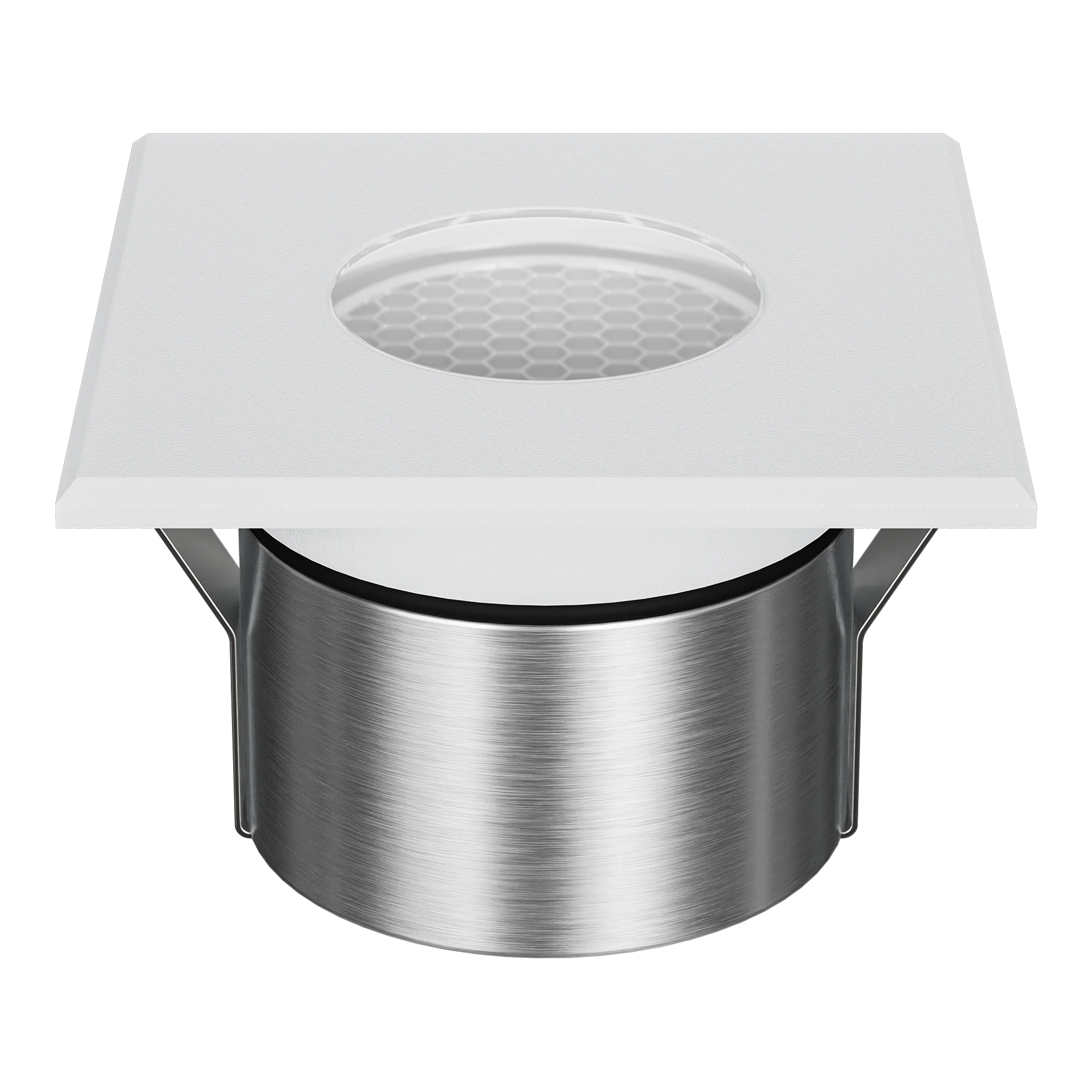

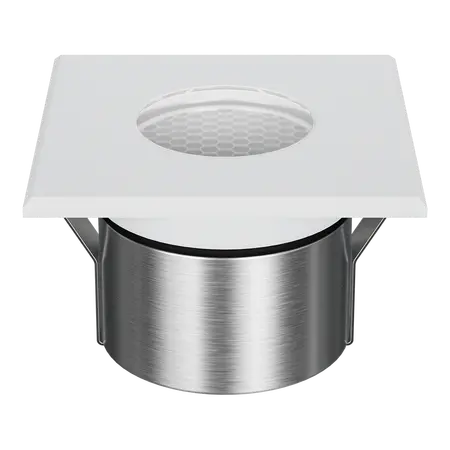

Emit Deck Light 85mm Tri-Colour 12/24V Square Open White Domus
Domus Emit 85mm LED deck light, 4/6W, tri-colour, 36 deg beam, 12/24V DC, square open fascia, white. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emit-85-SO Tri-Colour Inground Light, Square Open LED Inground Light, LED Deck Light
Technical Specifications
- Variant: EMIT-85-TRIO-SO-WHT / item no. 11551
- Light Source: CREE LED
- Power: 6W
- Input Voltage: 12/24V DC constant voltage
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Luminous Flux: 406 lm at 3000K; 460 lm at 4000K; 453 lm at 5500K
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Ingress Protection: IP67
- Impact Protection: IK10
- Colour Rendering Index: CRI ≥90
- Dimming: Non-dimmable
- LED Lifespan: 50,000 hours
- Drive-Over Load Rating: 1,500 kg
- Cutout: 65 mm without canister or 82 mm with canister
- Operating Temperature: -20°C to 40°C
- Electrical Classification: Class III
- Driver Requirement: 12/24V DC LED constant-voltage driver, wired in parallel
- Dimensions (H x L x W): 93mm x 85mm x 85mm
- Weight: 0.45 kg
Key Features
- Square open white fascia
- Tri-colour selectable LED output
- Suitable for deck, inground and architectural feature lighting
- IP67-rated construction for outdoor applications
- IK10 impact resistance
- 1500 kg drive-over rating
- Optional 19° and 60° beam lenses
- Optional honeycomb, linear and opal diffuser accessories
- High colour rendering with CRI of at least 90
- Long 50,000-hour rated LED lifespan
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Connect to a suitable 12/24V DC constant-voltage LED driver, wire fittings in parallel and follow the manufacturer's installation instructions.
Applications
- Residential and commercial deck lighting
- Inground feature lighting
- Landscape and garden lighting
- Pathway and stair lighting
- Architectural accent lighting
- Drive-over outdoor lighting installations
Standards & Compliance
- AS/NZS 60598.1: General requirements and tests for luminaires; specific product certification was not stated in the manufacturer's published information
Environmental Benefits
- LED technology provides low 6W power consumption compared with conventional light sources
- 50,000-hour rated lifespan can reduce replacement frequency and associated waste
- Selectable colour temperature allows the light output to be tailored to the application without replacing the fitting
- Metal components and electronic materials may be recoverable through appropriate electrical recycling streams
Warranty Information
5-year replacement warranty as stated on the EMIT-85 product page and datasheet. Warranty eligibility requires installation by a licensed electrician and compliance with Domus installation instructions.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
