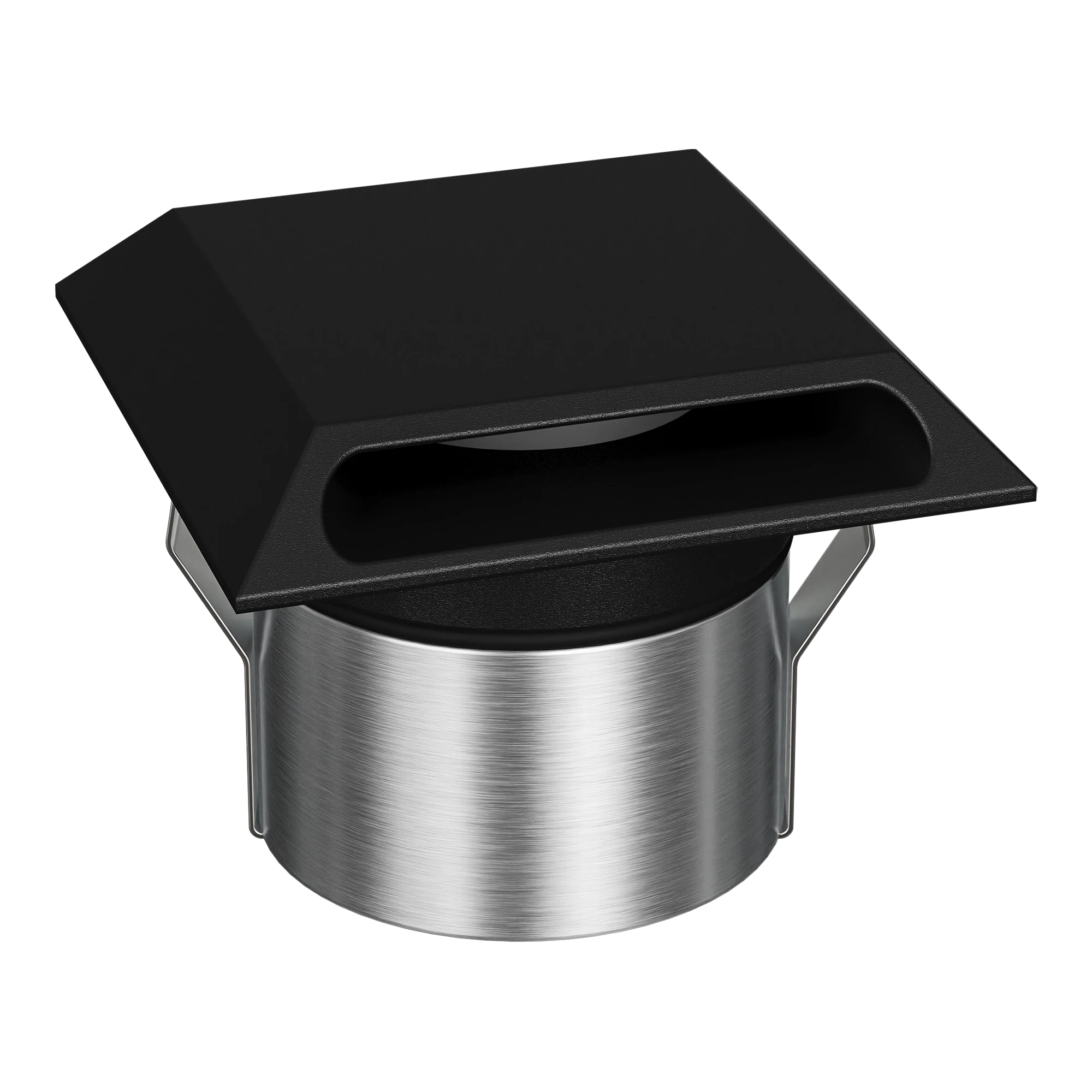

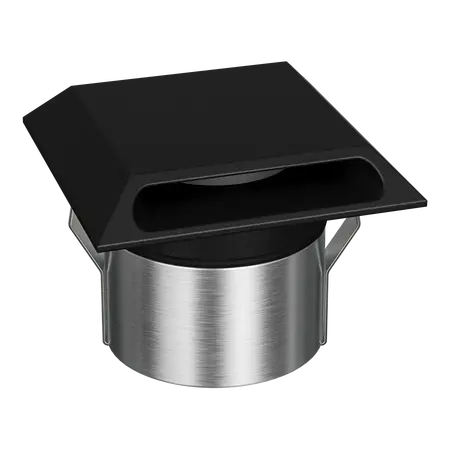

Emit Deck Light 85mm Tri-Colour 12/24V Square Slot Black Domus
Domus Emit 85mm LED deck light, 4/6W, tri-colour, 36 deg beam, 12/24V DC, square slot fascia, black. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus Emit-85 Square Slot Inground Light, Tri-Colour LED Deck Light, Recessed Outdoor LED Light
Technical Specifications
- Light Source: Integrated LED
- Power: 4W/6W
- Input Voltage: 12/24V DC
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Beam Angle: 36° standard; optional 19° and 60° lenses
- CRI: ≥90
- IP Rating: IP67
- Impact Rating: IK10
- Material: Stainless steel
- Finish: Black
- Dimming: No
- LED Life: Up to 50,000 hours
- Driver Requirement: 12/24V DC constant-voltage LED driver, wired in parallel
- Cut-out: 65mm without cannister or 82mm with cannister
- Classification: Class III
- Dimensions (H x L x W): 110mm x 85mm x 85mm
- Weight: 0.45 kg
Key Features
- Tri-colour selection between warm white, neutral white and cool white
- Square slot fascia for recessed deck, pathway and landscape lighting
- Suitable for 12V or 24V DC low-voltage systems
- IP67-rated construction for outdoor and inground applications
- IK10 impact resistance for areas exposed to foot traffic
- 36° beam angle supplied as standard
- Optional narrow and wide beam lenses available
- Requires a compatible LED driver, supplied separately
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Connect to a suitable 12/24V DC constant-voltage LED driver and follow the manufacturer’s wiring and installation instructions. Do not connect directly to mains voltage.
Applications
- Residential and commercial decking
- Outdoor pathways and steps
- Garden and landscape feature lighting
- Inground architectural lighting
- Low-voltage outdoor lighting systems
- Driveway and pedestrian-area accent lighting
Standards & Compliance
- Applicable luminaire safety requirements include AS/NZS 60598.1 and AS/NZS 60598.2.13 for recessed ground luminaires; confirm the product’s current RCM documentation before installation.
Environmental Benefits
- LED technology provides lower energy consumption than traditional halogen lighting
- Long rated LED life of up to 50,000 hours can reduce replacement frequency and material waste
- Stainless steel construction is durable and recyclable at end of service life
- Low-voltage 12/24V DC operation is suitable for efficient outdoor lighting systems
Warranty Information
5-year replacement warranty stated by Domus Lighting for the EMIT-85 range, subject to purchase through an authorised distributor, licensed electrical installation, correct installation and compliance with warranty conditions.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
