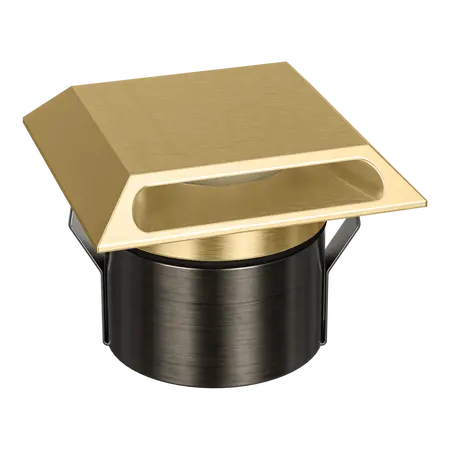

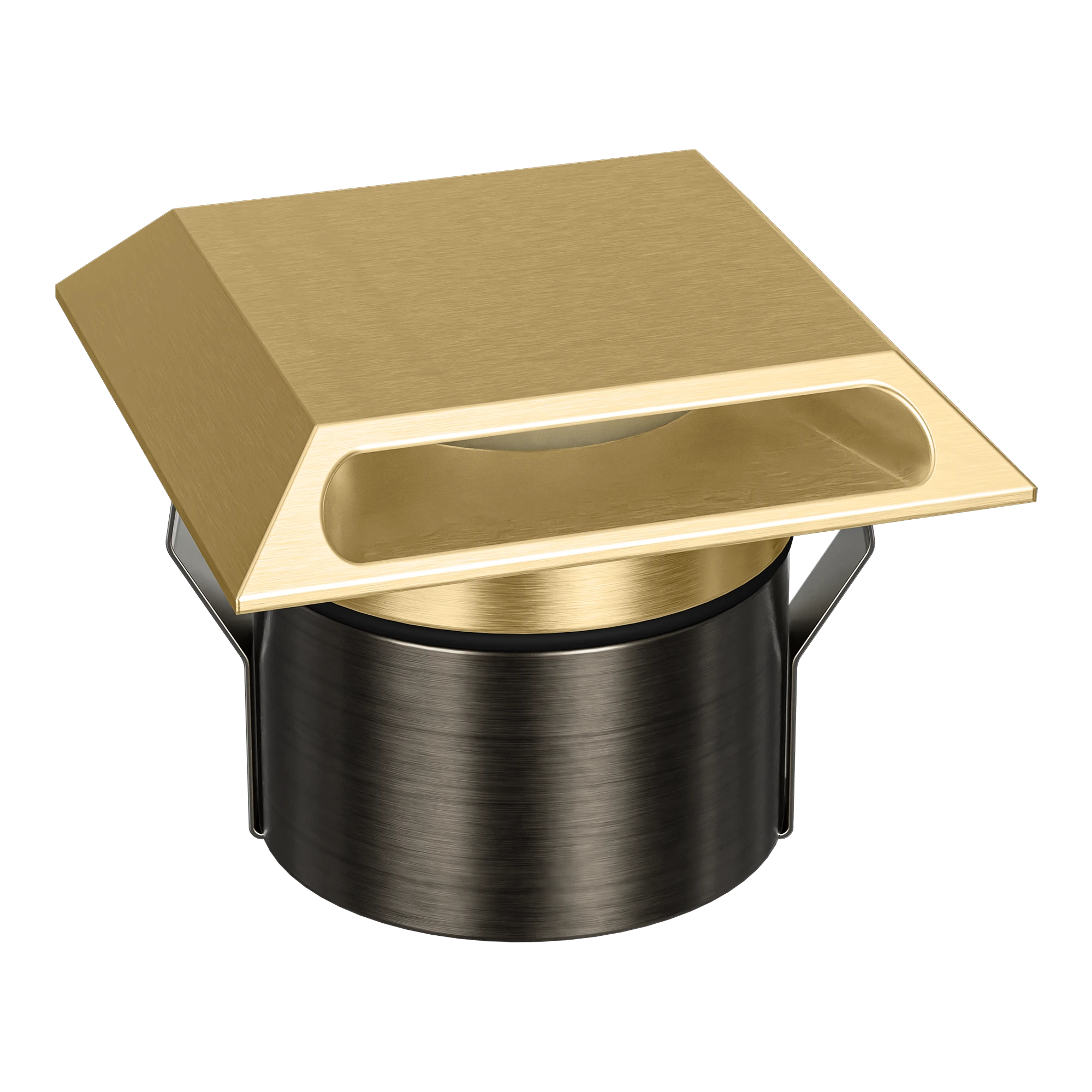

Emit Deck Light 85mm Tri-Colour 12/24V Square Slot Brass Domus
Domus Emit 85mm LED deck light, 4/6W, tri-colour, 36 deg beam, 12/24V DC, square slot fascia, brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus Emit 85 Square Slot Inground Light, Domus Emit 85 Deck Light, Tri-Colour LED Inground Light
Technical Specifications
- Input Voltage: 12/24V DC constant voltage
- Power: 6W; earlier product documentation lists 4/6W
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Light Output: Approximately 406lm at 3000K, 460lm at 4000K and 453lm at 5500K
- CRI: ≥90
- LED Type: CREE
- IP Rating: IP67
- IK Rating: IK10
- Classification: Class III
- Dimming: No
- Load Rating: Up to 1500kg drive-over
- LED Lifespan: 50,000 hours
- Material: Brass fascia and housing
- Driver Requirement: Requires a 12V or 24V DC constant-voltage LED driver, wired in parallel
- Driver Included: No
- Dimensions (H x L x W): 110mm x 85mm x 85mm
- Weight: 0.65 kg
Key Features
- Tri-colour selectable LED output for warm white, neutral white or white illumination
- Square slot brass fascia for recessed deck, pathway and inground lighting
- IP67 protection for suitable outdoor applications
- IK10 impact resistance and drive-over rating up to 1500kg
- Standard 36° beam angle with optional beam-control accessories
- Optional 19° and 60° lenses, honeycomb, linear lens and opal diffuser available
- Requires a separate compatible constant-voltage LED driver
- Designed for landscape, architectural, pathway, stair and deck lighting
Professional Installation Requirements
- Installation should be completed by a licensed electrician. Use a compatible 12V or 24V DC constant-voltage LED driver, connect fittings in parallel, isolate the power supply before installation and follow the manufacturer's installation instructions and applicable wiring regulations.
Applications
- Residential deck and patio lighting
- Landscape and garden feature lighting
- Pathway and stair illumination
- Driveway and architectural inground lighting
- Outdoor commercial and hospitality areas
- Feature lighting for hardscape and built-environment projects
Standards & Compliance
- AS/NZS 60598.1:2017 – applicable general safety requirements for luminaires; product-specific certification is not stated in the available manufacturer datasheet
- AS/NZS 3000:2018 – applicable to the electrical installation, wiring and connection of the LED driver
Environmental Benefits
- LED technology provides lower energy consumption than equivalent halogen lighting
- 50,000-hour rated LED lifespan can reduce replacement frequency and material waste
- Brass construction is recyclable at end of service life
- Low-voltage 12/24V DC operation supports use with efficient extra-low-voltage lighting systems
- Replaceable or separately specified driver arrangement can simplify component replacement compared with fully integrated mains fittings
Warranty Information
Domus Lighting's current warranty statement provides a 3-year replacement warranty for exterior LED deck and inground lights in residential applications and a 12-month replacement warranty for commercial applications. Warranty eligibility requires purchase through an authorised distributor, installation by a licensed electrician and installation in accordance with Domus guidelines.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors; confirm current stock and lead time with the distributor.
