Trade Discount 25%

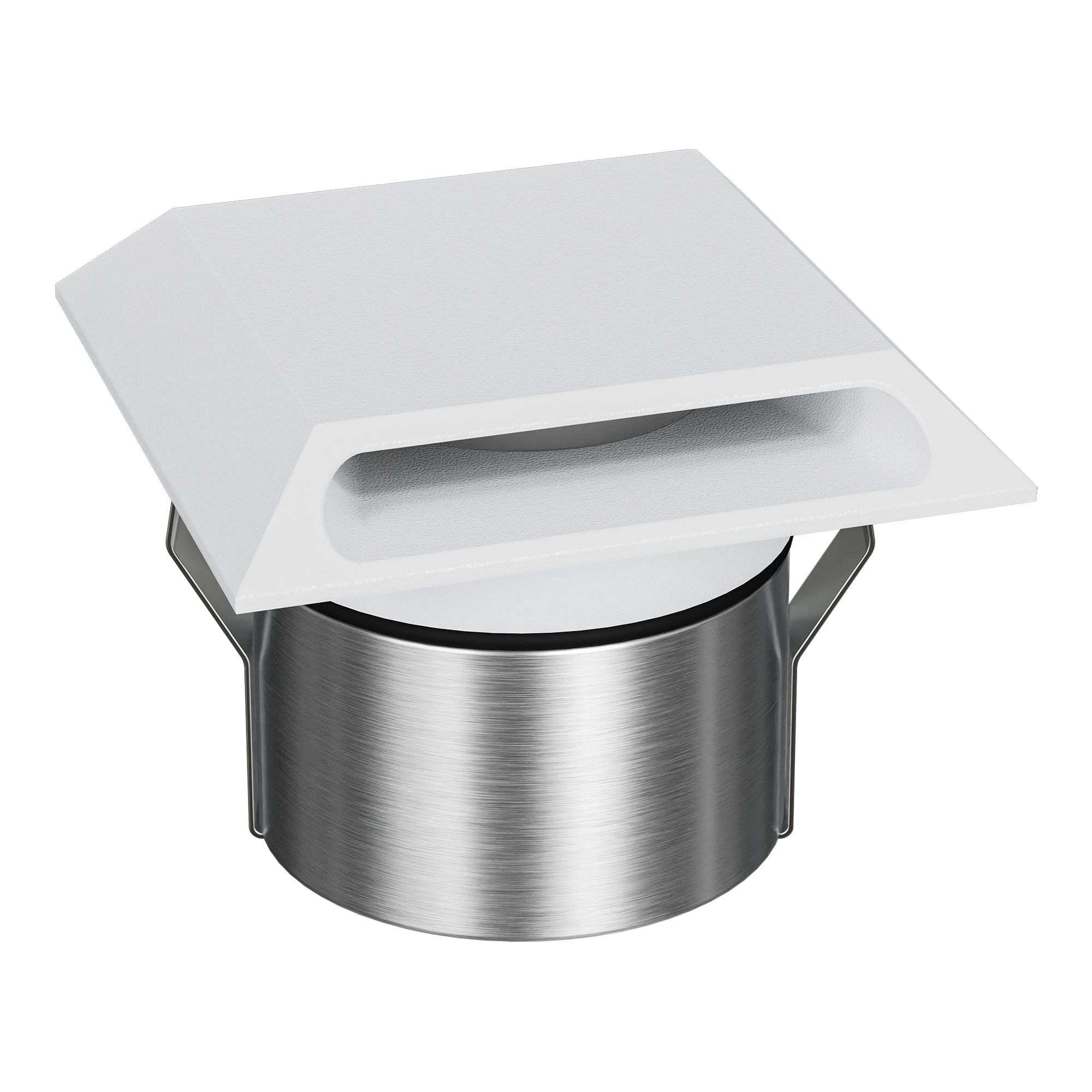

Emit Deck Light 85mm Tri-Colour 12/24V Square Slot White Domus
Domus Emit 85mm LED deck light, 4/6W, tri-colour, 36 deg beam, 12/24V DC, square slot fascia, white. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-85 Tri-Colour Square Slot Inground Light, 85mm LED Deck Light, Square Slot Recessed Deck Light
Technical Specifications
- Input Voltage: 12/24V DC
- Power: 4W/6W
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Beam Angle: 19°, 36° or 60°; 36° standard
- LED Type: CREE
- Colour Rendering Index: CRI ≥90
- Luminous Output: Up to 460 lm, depending on colour temperature and configuration
- Ingress Protection: IP67
- Impact Protection: IK10
- Drive-Over Load Rating: 1500 kg
- Dimming: Non-dimmable
- Operating Temperature: -20°C to 40°C
- LED Lifespan: 50,000 hours
- Classification: Class III
- Driver Requirement: 12/24V DC constant-voltage LED driver, wired in parallel
- Cut-Out: 65 mm without canister or 82 mm with canister
- Finish: White
- Fascia Style: Square slot
- Dimensions (H x L x W): 110mm x 85mm x 85mm
- Weight: 0.5 kg
Key Features
- Selectable tri-colour output for warm white, neutral white and white lighting
- Compact 85mm square slot fascia for deck, pathway and architectural applications
- IP67-rated construction for outdoor and inground installation
- IK10 impact resistance and 1500kg drive-over rating
- High colour rendering with CRI ≥90
- Optional 19° and 60° lenses available in addition to the standard 36° beam
- Compatible with 12V or 24V DC constant-voltage LED drivers
- Driver required and not included
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Connect only to a suitable 12V or 24V DC constant-voltage LED driver and follow the manufacturer's installation instructions, including correct cut-out dimensions and parallel wiring.
Applications
- Residential deck and patio lighting
- Landscape and pathway illumination
- Outdoor stair and step lighting
- Feature lighting for gardens, walls and architectural elements
- Inground lighting in pedestrian and drive-over areas
- Commercial landscape and architectural lighting
Standards & Compliance
- Applicable to luminaires under AS/NZS 60598.1
- Applicable to extra-low-voltage lighting systems under AS/NZS 60598.2.23
Environmental Benefits
- LED technology provides lower energy consumption than equivalent conventional light sources
- 50,000-hour rated LED lifespan can reduce replacement frequency and material waste
- Selectable colour temperature allows lighting output to be matched to the application without replacing the fitting
- Durable IP67 and IK10 construction can extend service life in outdoor environments
Warranty Information
Backed by a 5-year replacement warranty according to the product datasheet. Warranty eligibility requires installation by a licensed electrician, use in accordance with the installation guidelines and proof of purchase.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors.
