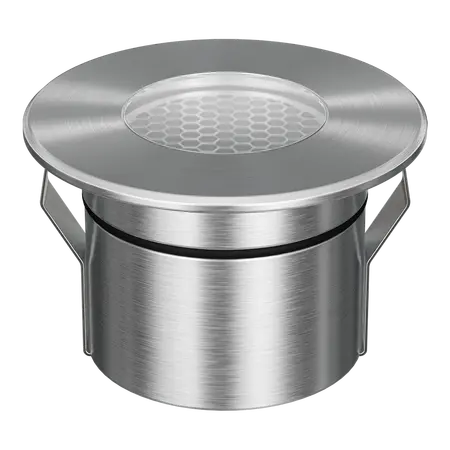

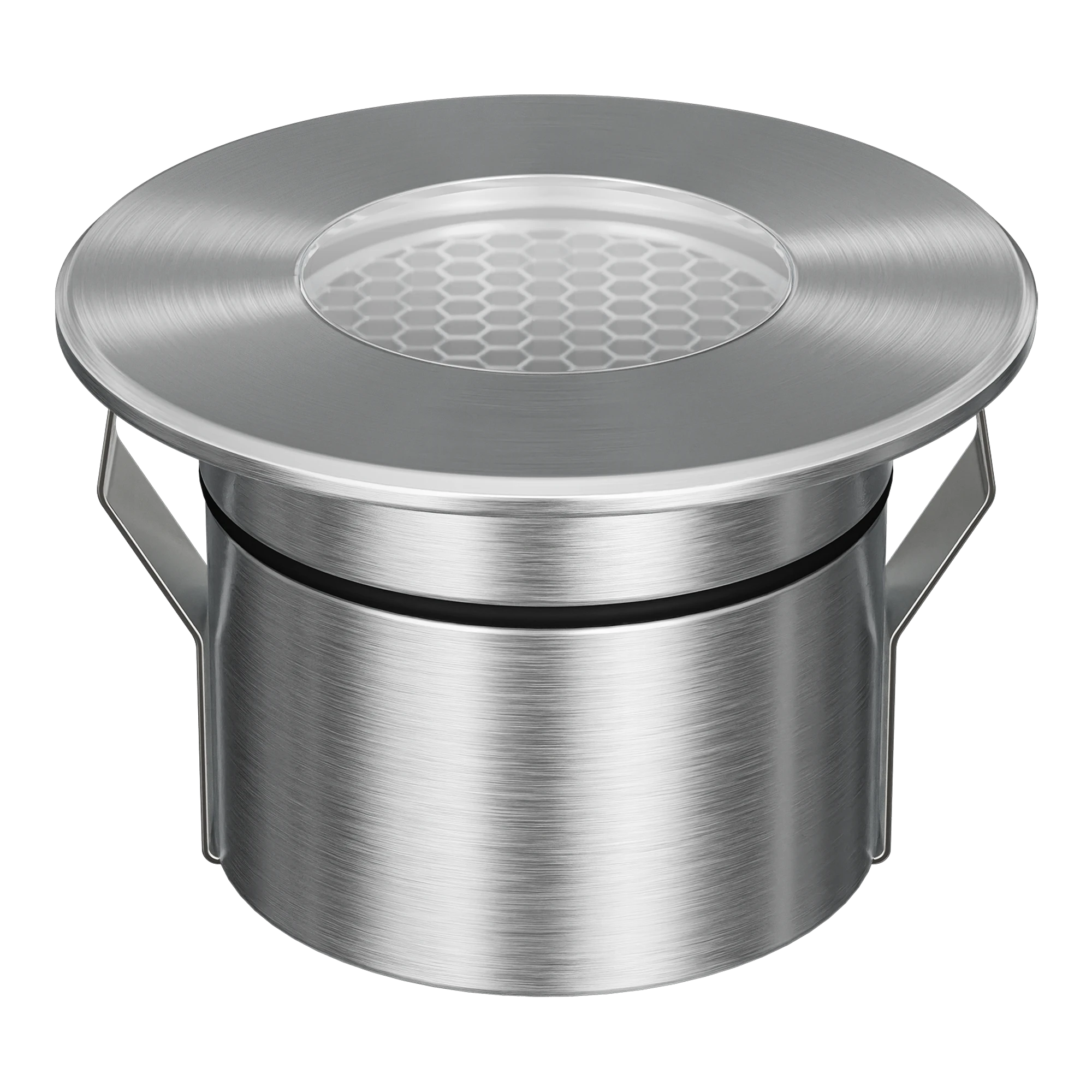

Emit Deck Light 85mm Tri-Colour Round Open 316 Stainless Domus
Domus Emit 85mm LED deck light, 4/6W, tri-colour, 36 deg beam, 12/24V DC, round open fascia, 316 stainless. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-85-TRIO-STS, Emit 85 Inground Light, Round Open Inground Light, Recessed LED Deck Light, Stainless Steel Uplight
Technical Specifications
- Model: EMIT-85-TRIO-STS
- Light Source: Integrated CREE LED
- Power: 6W
- Input Voltage: 12/24V DC constant voltage
- Colour Temperature: 3000K / 4000K / 5500K selectable
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Colour Rendering Index: ≥90
- Ingress Protection: IP67
- Impact Protection: IK10
- Lumen Output: 406lm at 3000K, 460lm at 4000K, 453lm at 5500K
- Dimming: Not dimmable
- Drive-Over Rating: Up to 2,000kg, subject to installation configuration
- Driver Requirement: Requires compatible 12/24V DC constant-voltage LED driver; driver not included
- Cut-Out: Ø65mm without canister or Ø82mm with canister
- Finish: 316 stainless steel
- Warranty Type: 5-year replacement warranty
- Dimensions (H x L x W): 110mm x 85mm x 85mm
- Weight: 0.65 kg
Key Features
- Round open fascia for discreet architectural feature lighting
- Selectable warm, neutral and cool white colour temperatures
- 316 stainless steel fascia suitable for exterior deck and landscape applications
- IP67-rated construction for protection against dust and temporary water immersion
- IK10 impact resistance for robust recessed installation
- 36° standard beam angle with optional interchangeable lenses
- Suitable for recessed installation in decking, paving and landscape surfaces
- High CRI of at least 90 for improved colour rendering
- Optional honeycomb, linear, opal diffuser and other accessories available
Professional Installation Requirements
- Installation should be performed by a licensed electrician or suitably qualified lighting professional. Use a compatible 12/24V DC constant-voltage LED driver, wire fittings in parallel, follow the manufacturer's installation instructions and ensure the recessed housing provides suitable drainage and load support.
Applications
- Residential deck and pathway lighting
- Landscape and garden feature lighting
- Architectural accent lighting
- Stair and step illumination
- Drive-over or trafficable recessed lighting where the specified load rating and installation requirements are met
- Outdoor columns, walls and hardscape feature lighting
Standards & Compliance
- AS/NZS 60598.1:2017 – Luminaires, general requirements and tests; applicable general safety standard for luminaires
- IEC 60598-2-13 – Ground recessed luminaires; applicable category reference for inground and recessed outdoor luminaires. Product-specific compliance documentation should be confirmed with the supplier
Environmental Benefits
- Integrated LED technology provides efficient feature lighting with lower power consumption than equivalent halogen fittings
- Selectable colour temperature helps avoid over-lighting by allowing the light output to be matched to the application
- 316 stainless steel construction is durable and recyclable at end of service life
- 50,000-hour rated LED lifespan can reduce replacement frequency and associated waste
- Long service life and IP67 protection support reduced maintenance and product replacement in outdoor applications
Warranty Information
Domus Lighting provides a 5-year replacement warranty for this EMIT-85 product range. Warranty eligibility requires purchase through an authorised distributor, installation by a licensed electrician and compliance with the manufacturer's installation requirements. Non-structural corrosion such as surface rust or tea staining on 316 stainless steel is excluded under the current warranty statement.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors; compatible LED driver must be sourced separately.
