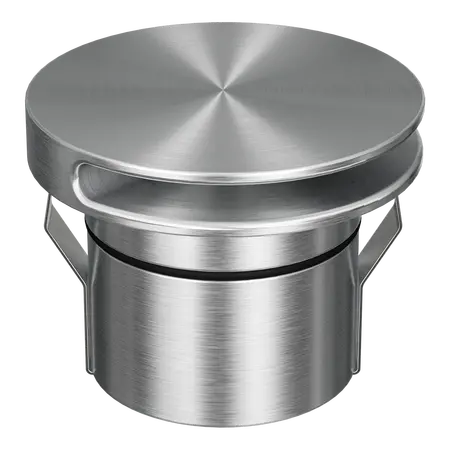

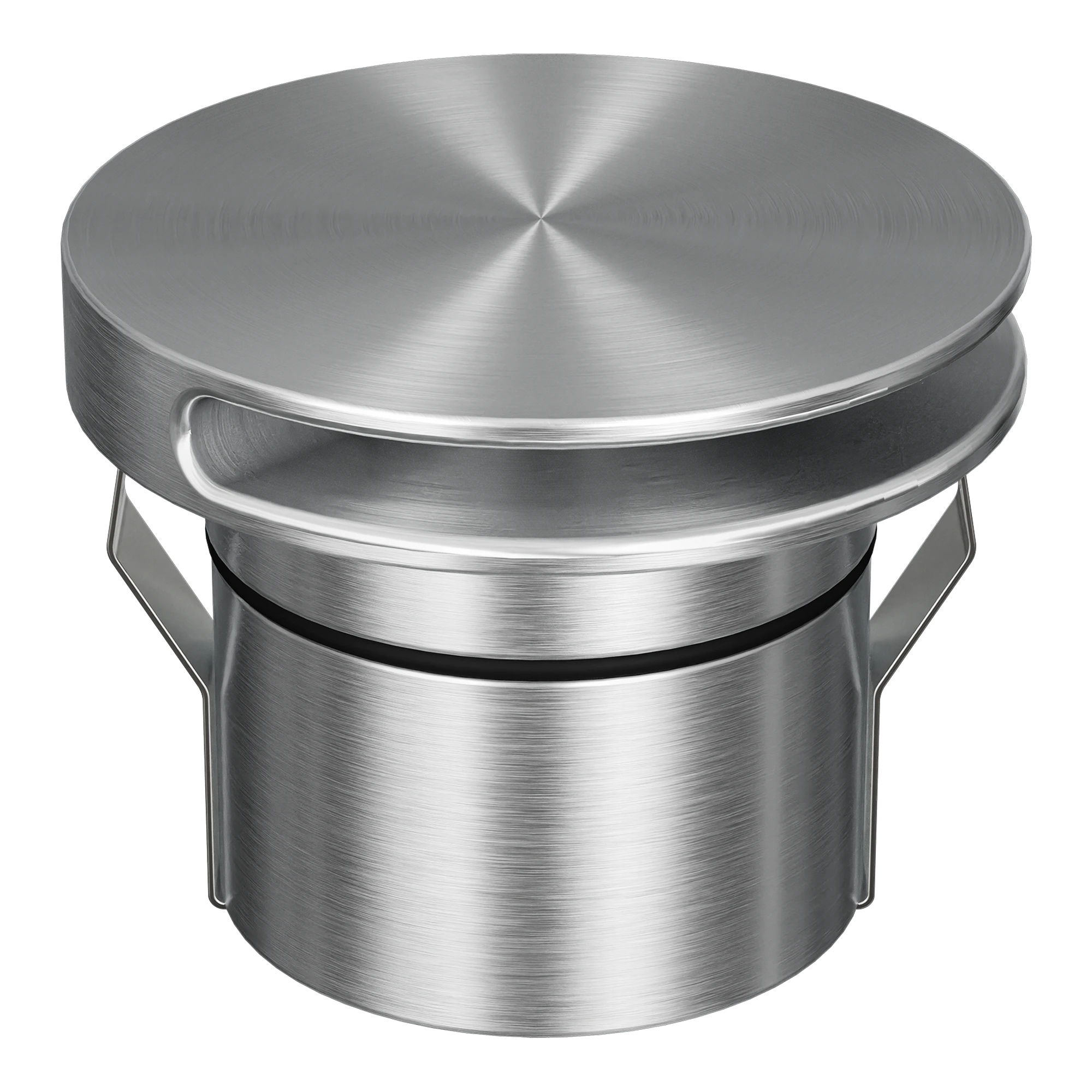

Emit Deck Light 85mm Tri-Colour Round Slot 316 Stainless Domus
Domus Emit 85mm LED deck light, 4/6W, tri-colour, 36 deg beam, 12/24V DC, round slot fascia, 316 stainless. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emit-85 Tri-Colour Inground Light, 85mm LED Deck Light, Recessed Inground Uplight, Round Slot Garden Light
Technical Specifications
- Wattage: 4W/6W LED
- Input Voltage: 12/24V DC constant voltage
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Beam Angle: 36° standard; optional 19° and 60° lenses
- IP Rating: IP67
- IK Rating: IK10
- LED Type: CREE
- Colour Rendering: CRI ≥90
- Dimming: No
- Lifespan: 50,000 hours
- Cut-out: Ø65mm without canister; Ø82mm with canister
- Material: 316 stainless steel
- Driver: Requires compatible 12/24V DC LED driver, wired in parallel
- Fascia: Round slot
- Drive-over Rating: Up to 1500kg
- Dimensions (H x L x W): 110mm x 85mm x 85mm
- Weight: 0.5 kg
Key Features
- Tri-colour selection at installation between warm white, neutral white and white
- 316 stainless steel fascia for outdoor and coastal-style applications
- Compact 85mm recessed inground and deck light format
- 36° beam angle supplied as standard
- IP67 protection for outdoor installation
- IK10 impact resistance
- Compatible with 12V and 24V DC constant-voltage LED drivers
- Optional beam lenses, diffuser and honeycomb accessories available
- Suitable for landscape, pathway, stair, deck and architectural feature lighting
Professional Installation Requirements
- Installation and connection to the LED driver should be carried out by a licensed electrician in accordance with the manufacturer's installation instructions and AS/NZS 3000. Use only a compatible 12/24V DC constant-voltage driver.
Applications
- Residential deck and patio lighting
- Landscape and garden feature lighting
- Pathway and stair illumination
- Architectural accent lighting
- Inground uplighting
- Outdoor commercial and hospitality areas
Standards & Compliance
- AS/NZS 60598.1:2025 - applicable general safety requirements and tests for luminaires
- AS/NZS 3000 - electrical installation and wiring requirements
Environmental Benefits
- LED technology provides lower energy consumption than equivalent halogen lighting
- Long rated LED lifespan of up to 50,000 hours can reduce replacement frequency and waste
- 316 stainless steel construction is durable and recyclable at end of service life
- 12/24V DC operation supports efficient extra-low-voltage lighting systems
Warranty Information
Domus Lighting's current warranty policy provides a 3-year replacement warranty for residential exterior LED deck and inground lights and a 12-month replacement warranty for commercial applications, subject to licensed installation and compliance with installation instructions.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors.
