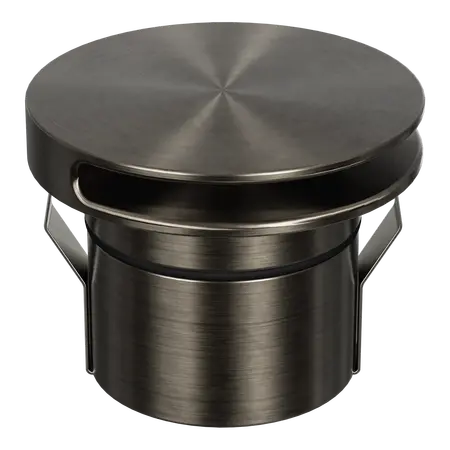

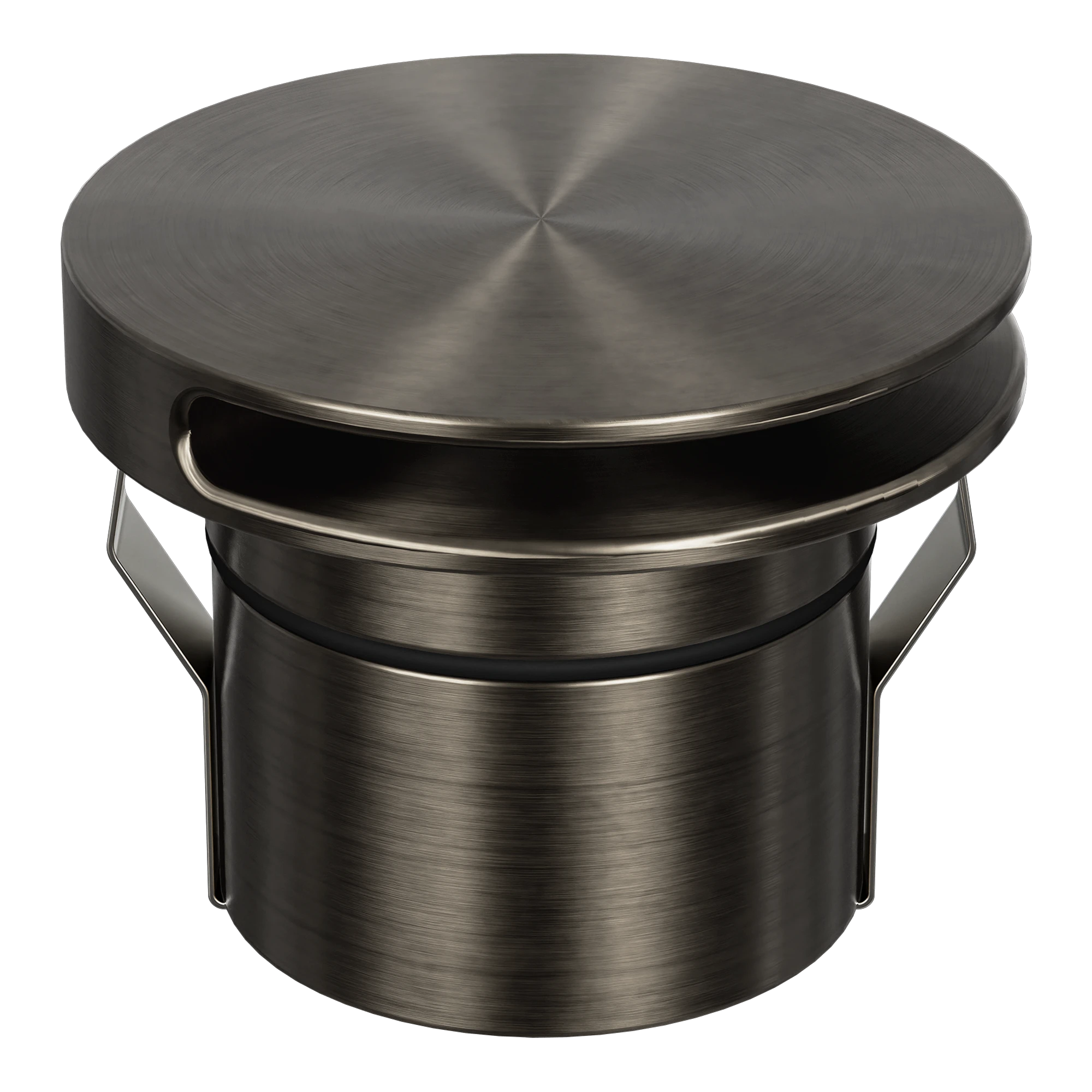

Emit Deck Light 85mm Tri-Colour Round Slot Antique Brass Domus
Domus Emit 85mm LED deck light, 4/6W, tri-colour, 36 deg beam, 12/24V DC, round slot fascia, antique brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus EMIT-85-TRIO-AB, LED Inground Light, LED Deck Light, Recessed Outdoor Light
Technical Specifications
- Light Source: Integrated LED
- Wattage: 4/6W LED output; 6W nominal tri-colour configuration
- Input Voltage: 12/24V DC constant voltage
- Colour Temperature: 3000K, 4000K or 5500K selectable at wiring stage
- Beam Angle: 36° standard; optional 19° and 60° lenses available
- Lumen Output: Approximately 52lm at 3000K, 61lm at 4000K and 60lm at 5500K
- Ingress Protection: IP67
- Impact Rating: IK10
- CRI: ≥90
- Drive-Over Rating: Up to 1500kg
- Dimming: No
- Material: Solid brass construction with antique brass fascia
- Driver Requirement: Requires separate 12V or 24V DC constant-voltage LED driver
- Connection: Wire in parallel
- Lifespan: Approximately 50,000 hours
- Dimensions (H x L x W): 110mm x 85mm x 85mm
- Weight: 0.8 kg
Key Features
- Round slot fascia in antique brass
- Selectable warm white, neutral white or white colour temperature
- Suitable for deck, landscape, pathway, stair and architectural feature lighting
- IP67-rated construction for outdoor and inground applications
- IK10 impact resistance and drive-over rating up to 1500kg
- Built-in water-stop cable joint
- Optional beam, honeycomb, linear and opal diffuser accessories
- Compatible with Domus constant-voltage LED drivers
Professional Installation Requirements
- Installation and driver connection should be completed by a licensed electrician. Use a compatible 12V or 24V DC constant-voltage LED driver, wire fittings in parallel, and follow the manufacturer's installation instructions and applicable wiring requirements.
Applications
- Residential and commercial deck lighting
- Inground landscape lighting
- Pathway and stair illumination
- Architectural feature lighting
- Outdoor garden and entertaining areas
Standards & Compliance
- AS/NZS 60598.1: Applicable general safety requirements and tests for luminaires; product-specific compliance declaration was not located.
- AS/NZS 3000: Electrical installations and wiring practices applicable to the associated low-voltage driver and installation.
Environmental Benefits
- Integrated LED technology provides lower energy consumption than conventional halogen alternatives.
- Approximately 50,000-hour LED service life can reduce replacement frequency and material waste.
- Solid brass components are durable and recyclable at end of service life.
- Selectable colour temperature can help avoid over-lighting by matching output to the application.
Warranty Information
Domus Lighting's current warranty provides a 5-year replacement warranty for exterior LED deck and inground lights used in residential applications, and a 12-month replacement warranty for commercial applications. Warranty eligibility requires purchase through an authorised distributor, installation by a licensed electrician and compliance with the installation guidelines.
Available Now
Available through Domus Lighting and authorised Australian lighting and electrical distributors.
