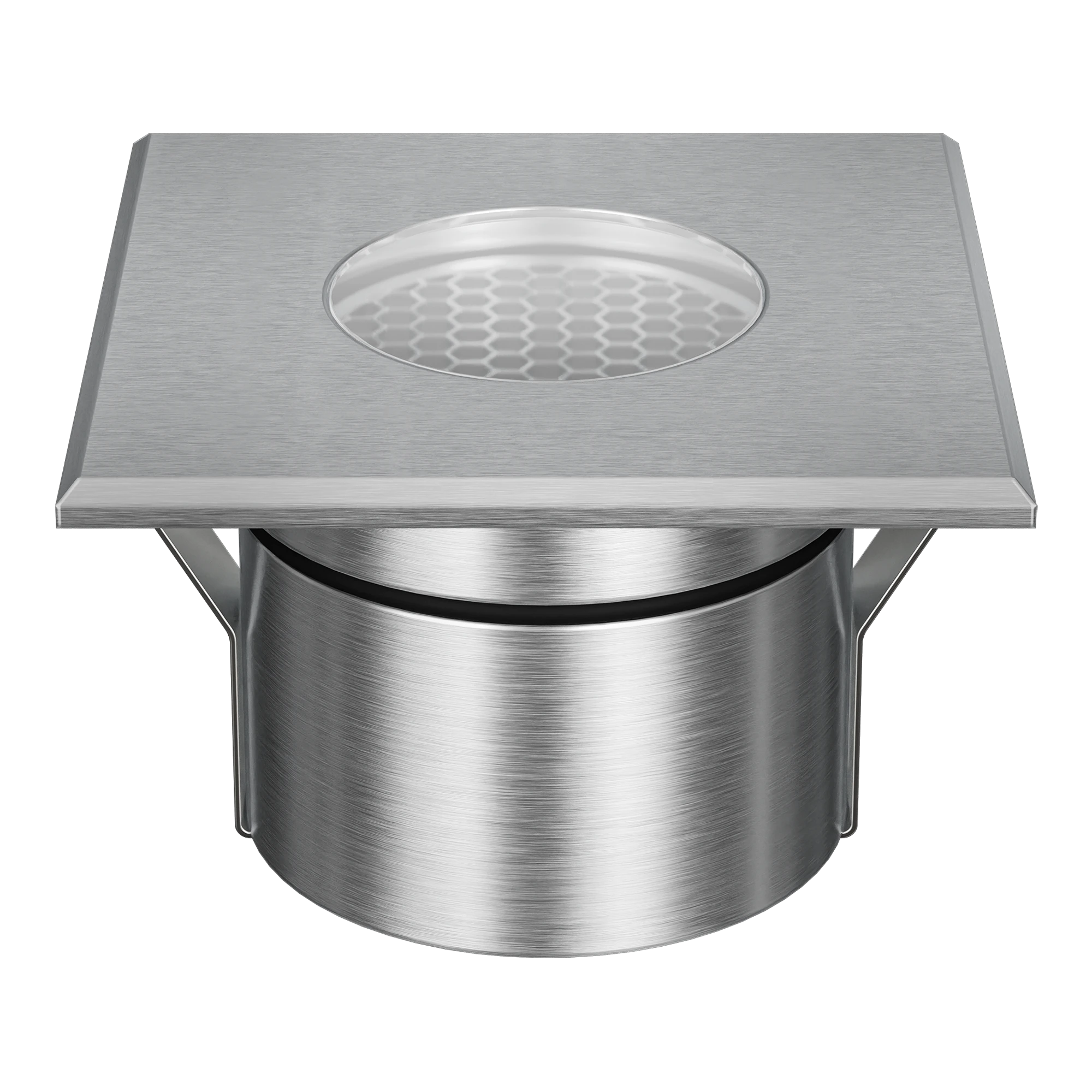

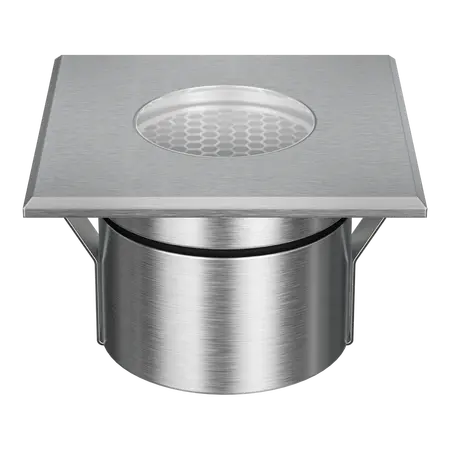

Emit Deck Light 85mm Tri-Colour Square Open 316 Stainless Domus
Domus Emit 85mm LED deck light, 4/6W, tri-colour, 36 deg beam, 12/24V DC, square open fascia, 316 stainless. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus Emit-85-TRIO-SO, EMIT-85-TRIO-STS, Emit 85 LED Inground Light, Square Open LED Deck Light, 12/24V LED Inground Light
Technical Specifications
- Input Voltage: 12/24V DC
- Power: 4/6W, with 6W current specification
- Light Source: CREE LED
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Beam Angle: 19°, 36° standard or 60° with optional lens
- Luminous Output: 406lm at 3000K, 460lm at 4000K, 453lm at 5500K
- Colour Rendering Index: ≥90
- Ingress Protection: IP67
- Impact Protection: IK10
- Load Rating: 1500kg drive-over
- Dimmable: No
- Operating Temperature: -20°C to 40°C
- LED Lifespan: 50,000 hours
- Electrical Classification: Class III
- Driver Requirement: 12V or 24V constant-voltage LED driver, wired in parallel
- Material: 316 stainless steel fascia and metalware
- Cutout: 65mm without canister or 82mm with canister
- Dimensions (H x L x W): 93mm x 85mm x 85mm
- Weight: 0.5 kg
Key Features
- Square open fascia for deck, pathway and inground lighting
- Selectable tri-colour output for warm, neutral and cool white lighting
- 316 stainless steel construction for outdoor applications
- IP67-rated sealed construction
- IK10 impact resistance and 1500kg drive-over rating
- 36° standard beam angle with optional 19° and 60° lenses
- Optional honeycomb, linear lens and opal diffuser accessories
- Compatible with 12V and 24V DC constant-voltage drivers
- Low-voltage Class III design
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Use a compatible 12V or 24V DC constant-voltage LED driver, wire fittings in parallel, and install in accordance with the manufacturer's instructions and AS/NZS 3000.
Applications
- Residential deck and pathway lighting
- Outdoor landscape and garden lighting
- Inground architectural feature lighting
- Drive-over lighting areas
- Stair and walkway illumination
- Commercial exterior and hospitality lighting
Standards & Compliance
- AS/NZS 60598.1 – applicable general safety requirements for luminaires
- AS/NZS 3000 – electrical installation and wiring requirements
Environmental Benefits
- Efficient LED light source reduces energy consumption compared with conventional lamps
- 50,000-hour rated LED lifespan can reduce replacement frequency and material waste
- 316 stainless steel components are durable and recyclable at end of service life
- 12/24V DC extra-low-voltage operation supports safer, efficient outdoor lighting systems
Warranty Information
5-year replacement warranty as stated in the Domus EMIT-85-TRIO product data sheet, subject to Domus warranty terms, correct installation and licensed-electrician requirements.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors.
