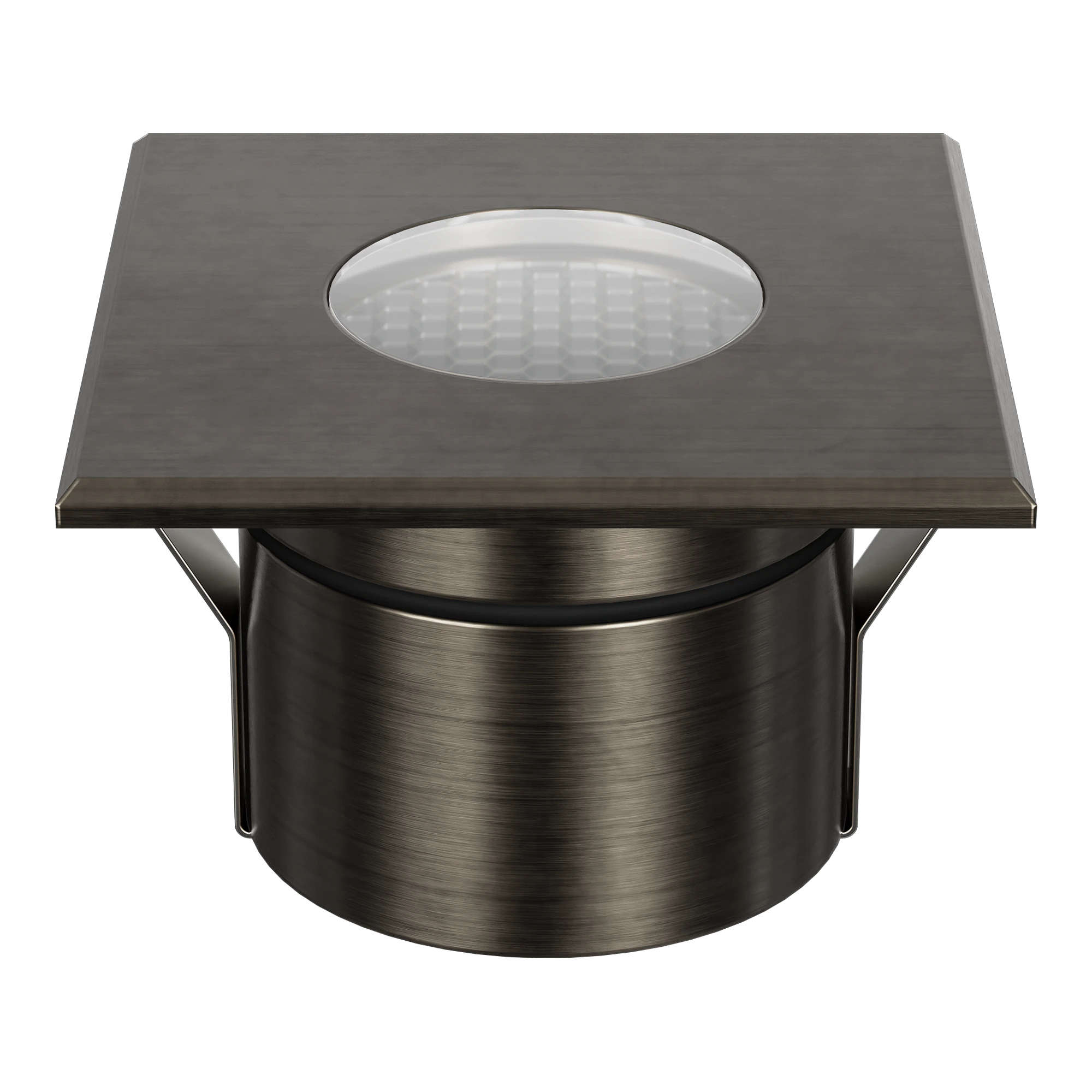

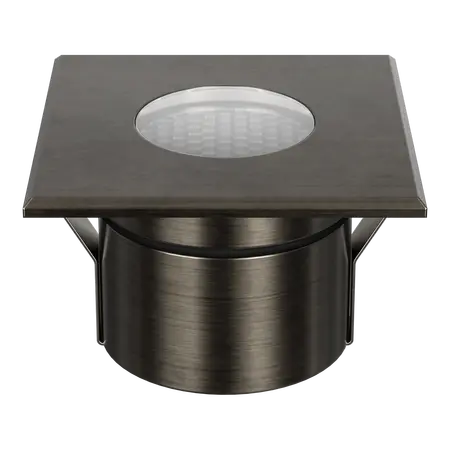

Emit Deck Light 85mm Tri-Colour Square Open Antique Brass Domus
Domus Emit 85mm LED deck light, 4/6W, tri-colour, 36 deg beam, 12/24V DC, square open fascia, antique brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-85-TRIO-SO, Domus Emit 85 Inground Light, Square Open Inground Light, Recessed Deck Light
Technical Specifications
- Variant: EMIT-85-TRIO-SO
- Variant ID: 10206
- Light Type: Integrated CREE LED
- Power: 6W
- Input Voltage: 12/24V DC constant voltage
- Colour Temperature: 3000K / 4000K / 5500K selectable
- Luminous Output: 406 lm at 3000K, 460 lm at 4000K, 453 lm at 5500K
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Colour Rendering Index: CRI ≥90
- Ingress Protection: IP67
- Impact Protection: IK10
- Drive-Over Rating: 1500 kg
- Dimming: Not dimmable
- LED Life: 50,000 hours
- Cutout: 65 mm without cannister; 82 mm with cannister
- Driver Requirement: 12V or 24V DC constant-voltage LED driver, wired in parallel
- Finish: Antique brass
- Classification: Class III
- Dimensions (H x L x W): 110mm x 85mm x 85mm
- Weight: 0.65 kg
Key Features
- Selectable tri-colour light output for warm white, neutral white or cool white illumination
- Square open fascia for recessed deck, inground and architectural lighting
- IP67-rated construction for outdoor and inground applications
- IK10 impact resistance and 1500 kg drive-over rating
- High colour rendering with CRI ≥90
- 36° beam angle supplied as standard
- Optional narrow and wide beam lenses, honeycomb and diffuser accessories available
- Requires a separate 12/24V DC constant-voltage LED driver
- Five-year replacement warranty specified by Domus Lighting
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Connect the fitting to a compatible 12V or 24V DC constant-voltage LED driver, wire fittings in parallel, and install in accordance with the manufacturer's instructions and AS/NZS 3000.
Applications
- Residential and commercial deck lighting
- Recessed garden and landscape feature lighting
- Pathway and stair lighting
- Architectural accent and uplighting
- Drive-over inground lighting where the 1500 kg load rating is suitable
Standards & Compliance
- AS/NZS 3000: Wiring Rules — applicable to the electrical installation and connection of the LED driver and luminaire
- AS/NZS 60598.1:2025 — applicable general safety standard for luminaires; specific product certification was not independently verified
Environmental Benefits
- 6W LED output provides an energy-efficient alternative to higher-wattage conventional light sources
- Selectable colour temperature can reduce the need to replace fittings when lighting requirements change
- 50,000-hour rated LED life can reduce replacement frequency and material waste
- Integrated LED technology eliminates routine globe replacement
- Brass and metal components can be recycled at end of service life through appropriate recycling channels
Warranty Information
Five-year replacement warranty as specified by Domus Lighting for the EMIT-85-TRIO series. Warranty eligibility requires purchase through an authorised distributor, installation by a licensed electrician, proof of purchase and installation in accordance with Domus guidelines.
Available Now
Available through Domus Lighting and authorised Australian distributors.
