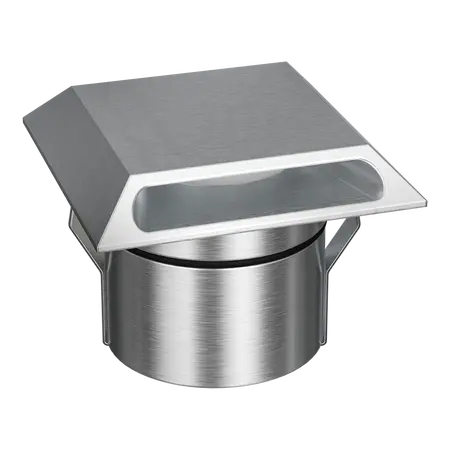

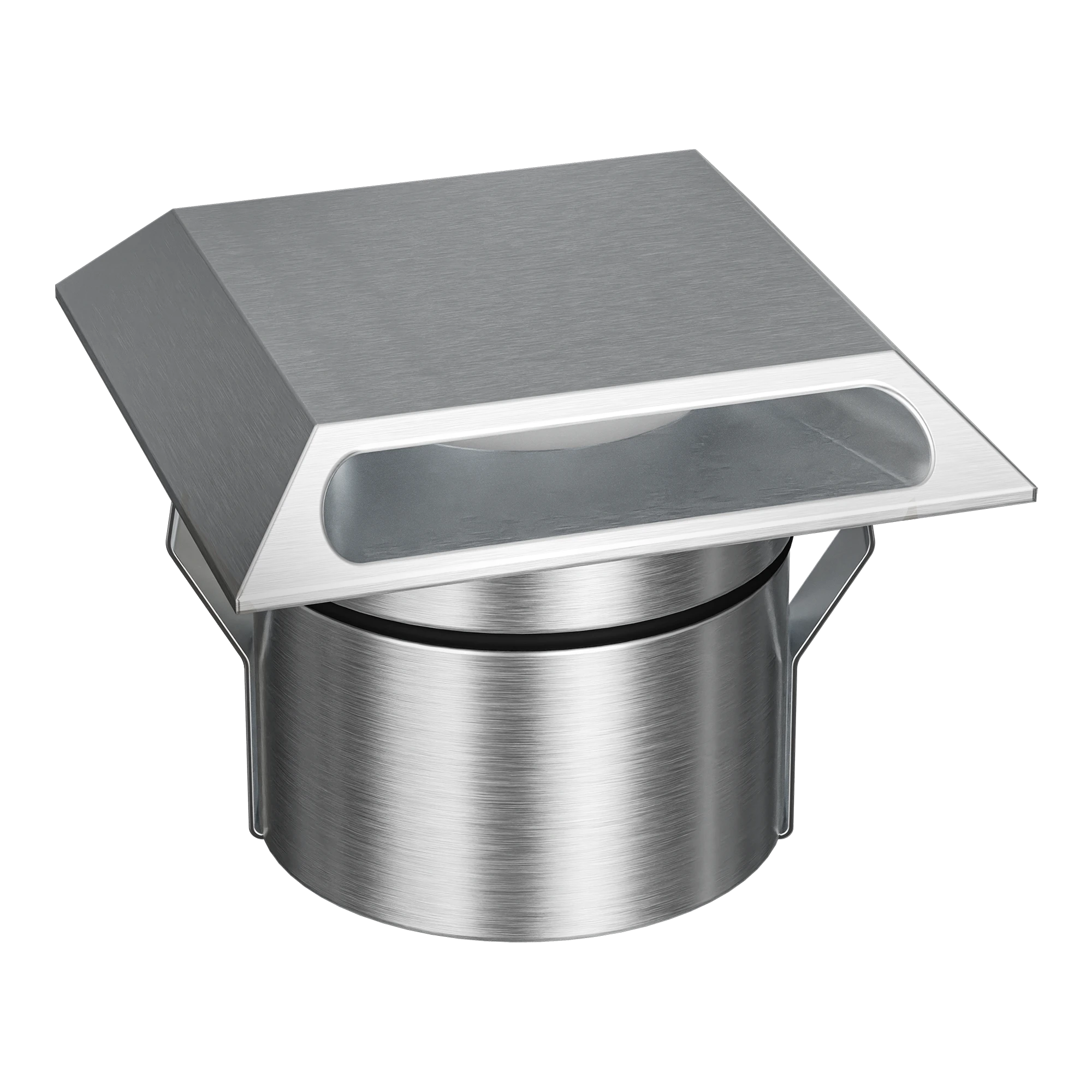

Emit Deck Light 85mm Tri-Colour Square Slot 316 Stainless Domus
Domus Emit 85mm LED deck light, 4/6W, tri-colour, 36 deg beam, 12/24V DC, square slot fascia, 316 stainless. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-85-TRIO-SQR-SLOT, Emit 85 Tri-Colour Inground Light, Square Slot Inground Light
Technical Specifications
- Wattage: 6W
- Input Voltage: 12/24V DC constant voltage
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Lumens: 210 lm at each colour temperature
- Beam Angle: 36° standard; optional 19° and 60° lenses
- LED Type: CREE
- Colour Rendering Index: CRI ≥90
- Ingress Protection: IP67
- Impact Protection: IK10
- Load Rating: 1500 kg drive-over
- Dimming: No
- Operating Temperature: -20°C to 40°C
- LED Lifespan: 50,000 hours
- Cutout: 65 mm without canister or 82 mm with canister
- Driver Requirement: 12/24V DC constant-voltage LED driver, wired in parallel
- Construction: 316 stainless steel fascia
- Dimensions (H x L x W): 85mm x 105mm x 85mm
- Weight: 0.5 kg
Key Features
- Selectable warm white, neutral white and white colour temperatures
- Square slot fascia for directional linear light distribution
- 316 stainless steel finish for outdoor architectural applications
- IP67-rated construction for inground and deck installations
- IK10 impact rating and 1500 kg drive-over load rating
- 36° standard beam angle with optional beam-control accessories
- Compatible with optional honeycomb, linear lens and opal diffuser accessories
- Low-voltage Class III luminaire
Professional Installation Requirements
- Installation must be performed by a professional licensed electrician. Connect only to a suitable 12/24V DC constant-voltage LED driver, wired in parallel, and follow the manufacturer's installation instructions.
Applications
- Residential deck lighting
- Outdoor pathways and stairs
- Landscape and garden lighting
- Architectural feature lighting
- Drive-over inground lighting
- Commercial exterior and hospitality projects
Standards & Compliance
- Relevant luminaire standard: AS/NZS 60598.1, General requirements and tests
- Relevant fixed-luminaire standard: AS/NZS 60598.2.1, Particular requirements for fixed general-purpose luminaires
- Electrical installation framework: AS/NZS 3000, Wiring Rules
Environmental Benefits
- Energy-efficient 6W LED technology reduces electricity consumption compared with conventional light sources
- 50,000-hour rated LED lifespan can reduce replacement frequency and material waste
- Low-voltage 12/24V DC operation supports safer, efficient outdoor lighting systems
- 316 stainless steel components are durable and recyclable at end of service life
Warranty Information
5-year replacement warranty, subject to Domus Lighting warranty conditions. Warranty eligibility requires installation by a licensed electrician and adherence to the installation guidelines. Non-structural corrosion or tea staining of 316 stainless steel, including installations within 5 km of saltwater, may be excluded.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
