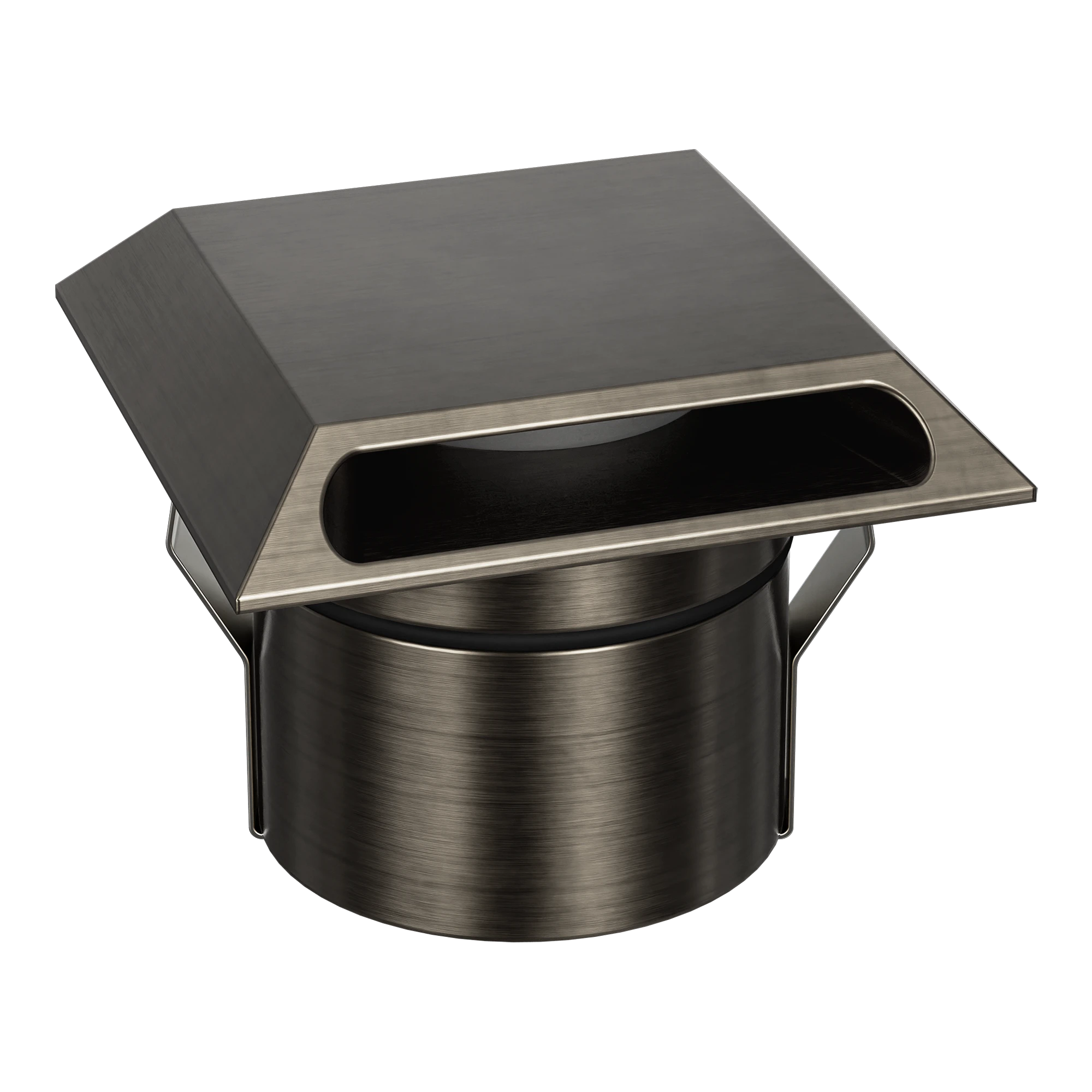

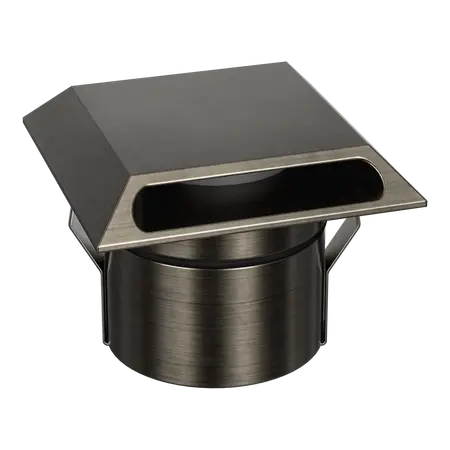

Emit Deck Light 85mm Tri-Colour Square Slot Antique Brass Domus
Domus Emit 85mm LED deck light, 4/6W, tri-colour, 36 deg beam, 12/24V DC, square slot fascia, antique brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus EMIT-85-TRIO-SQR-SLOT, Domus Emit 85 Inground Light, Antique Brass Recessed Deck Light, Square Slot Uplight
Technical Specifications
- Light Source: Integrated CREE LED
- Power: 6W
- Input Voltage: 12/24V DC constant voltage
- Colour Temperature: 3000K / 4000K / 5500K selectable
- Luminous Output: 210 lm at each selectable colour temperature
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Colour Rendering Index: CRI ≥90
- Ingress Protection: IP67
- Impact Protection: IK10
- Load Rating: Up to 1500 kg drive-over
- Dimming: No
- LED Lifespan: 50,000 hours
- Cutout: Ø65 mm without cannister or Ø82 mm with cannister
- Driver Requirement: 12V or 24V DC constant-voltage LED driver, wired in parallel
- Finish: Antique brass
- Classification: Class III extra-low-voltage luminaire
- Dimensions (H x L x W): 110mm x 85mm x 85mm
- Weight: 0.8 kg
Key Features
- Tri-colour selectable output for warm white, neutral white and cool white lighting
- Square slot fascia for recessed deck, pathway and landscape applications
- IP67-rated construction for outdoor and inground installation
- IK10 impact rating and drive-over load rating up to 1500 kg
- 36° beam angle supplied as standard
- Optional narrow and wide beam lenses, honeycomb and diffuser accessories available
- Suitable for 12V or 24V DC constant-voltage operation
- Integrated LED design with an expected 50,000-hour lifespan
- Backed by a 5-year residential replacement warranty
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Use a compatible 12V or 24V DC constant-voltage LED driver, wire fittings in parallel, follow the manufacturer's installation instructions and complete the installation in accordance with AS/NZS 3000.
Applications
- Residential and commercial deck lighting
- Recessed pathway and garden lighting
- Landscape feature lighting
- Architectural accent lighting
- Drive-over inground lighting in suitable hardscape areas
- Stair, column and retaining-wall illumination
Standards & Compliance
- AS/NZS 3000: Electrical installations - Wiring Rules, applicable to the low-voltage electrical installation and driver connection
- AS/NZS 60598.1: Luminaires - General requirements and tests, applicable to luminaire safety
- AS/NZS 60598.2.13: Applicable particular requirements for ground-recessed luminaires
Environmental Benefits
- LED technology provides efficient illumination using 6W of power
- Long rated LED lifespan of 50,000 hours can reduce replacement frequency and waste
- Antique brass and metal components can be recovered through appropriate metal recycling streams
- Low-voltage DC operation is suitable for efficient outdoor lighting systems when paired with an appropriately sized driver
Warranty Information
5-year replacement warranty for residential exterior deck and inground lights; 12-month replacement warranty for commercial applications. Warranty eligibility requires installation by a licensed electrician and compliance with Domus installation requirements.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors, subject to distributor stock.
