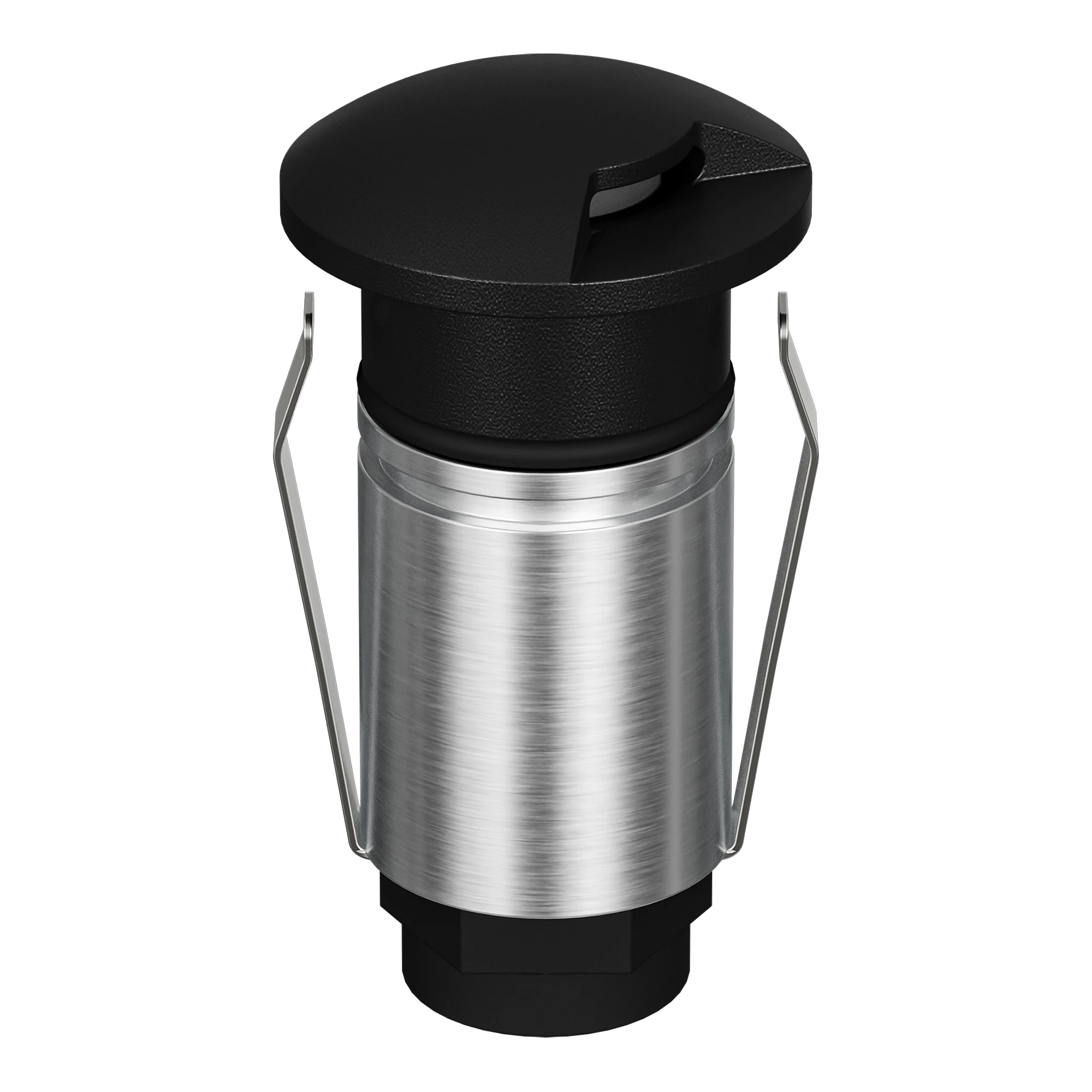

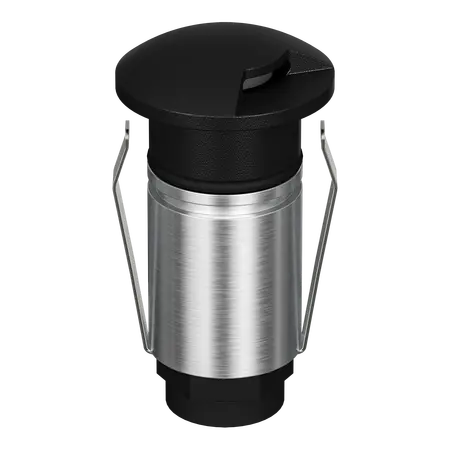

Emit Deck Light LED 25mm RGBW 12/24V 1-Way Black Fascia Domus
Domus Emit 25mm LED deck light, RGBW, 36 deg beam, 12/24V DC, 1-way fascia, black. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emit-25 RGBW Inground Light, RGBW Recessed Deck Light, Mini Inground LED Light, 1-Way Deck Light
Technical Specifications
- Variant: EMIT-25-RGBW-BLK, 1-way fascia
- Input Voltage: 24V DC constant voltage
- Power: 1W
- Light Source: CREE LED
- Light Colour: RGBW, red, green, blue and white
- Beam Angle: 36° standard; optional 19° and 60° lenses
- IP Rating: IP67
- IK Rating: IK10
- Dimming: No
- Lifespan: 50,000 hours
- Load Rating: 1,500 kg drive-over
- Cut-out: Ø19 mm without canister; Ø24 mm with canister
- Required Accessories: 24V DC constant-voltage LED driver and RGBW colour controller
- Wiring: Drivers and fittings wired in parallel
- Dimensions (H x L x W): 45mm x 25mm x 25mm
- Weight: 0.1 kg
Key Features
- Compact 25 mm recessed deck and inground light
- RGBW colour-changing output for architectural and landscape lighting
- Black 1-way fascia for directional light distribution
- 36° standard beam angle
- IP67 protection for suitable outdoor applications
- IK10 impact resistance and 1,500 kg drive-over load rating
- Compatible with a 24V DC constant-voltage LED driver
- Optional beam lenses, honeycomb and opal diffuser accessories
- 50,000-hour rated LED lifespan
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Use a compatible 24V DC constant-voltage LED driver and RGBW controller, wire fittings in parallel, and follow the manufacturer's installation instructions and AS/NZS 3000 requirements where applicable.
Applications
- Residential deck and pathway lighting
- Garden and landscape feature lighting
- Stair and step lighting
- Architectural façade and wall-wash lighting
- Drive-over and inground feature lighting where the specified load rating is suitable
- Outdoor RGBW accent and wayfinding lighting
Standards & Compliance
- AS/NZS 60598.1: General requirements and tests for luminaires
- AS/NZS 60598.2.2: Particular requirements for recessed luminaires
- AS/NZS 3000: Electrical installations and wiring requirements for the installation
Environmental Benefits
- LED technology provides efficient low-power illumination at 1W
- 50,000-hour rated lifespan can reduce replacement frequency and installation waste
- Metal components such as stainless steel are durable and recyclable at end of service life
- Low-voltage 24V DC operation supports safer, efficient outdoor lighting system design
Warranty Information
The product page and manufacturer datasheet state a 5-year replacement warranty. Domus Lighting's current general warranty statement lists exterior deck and inground lights under a 3-year residential and 12-month commercial warranty category, so confirm the applicable term with Domus or the authorised distributor at purchase. Warranty claims require licensed electrician installation and compliance with installation instructions.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors, subject to distributor stock and project requirements.
