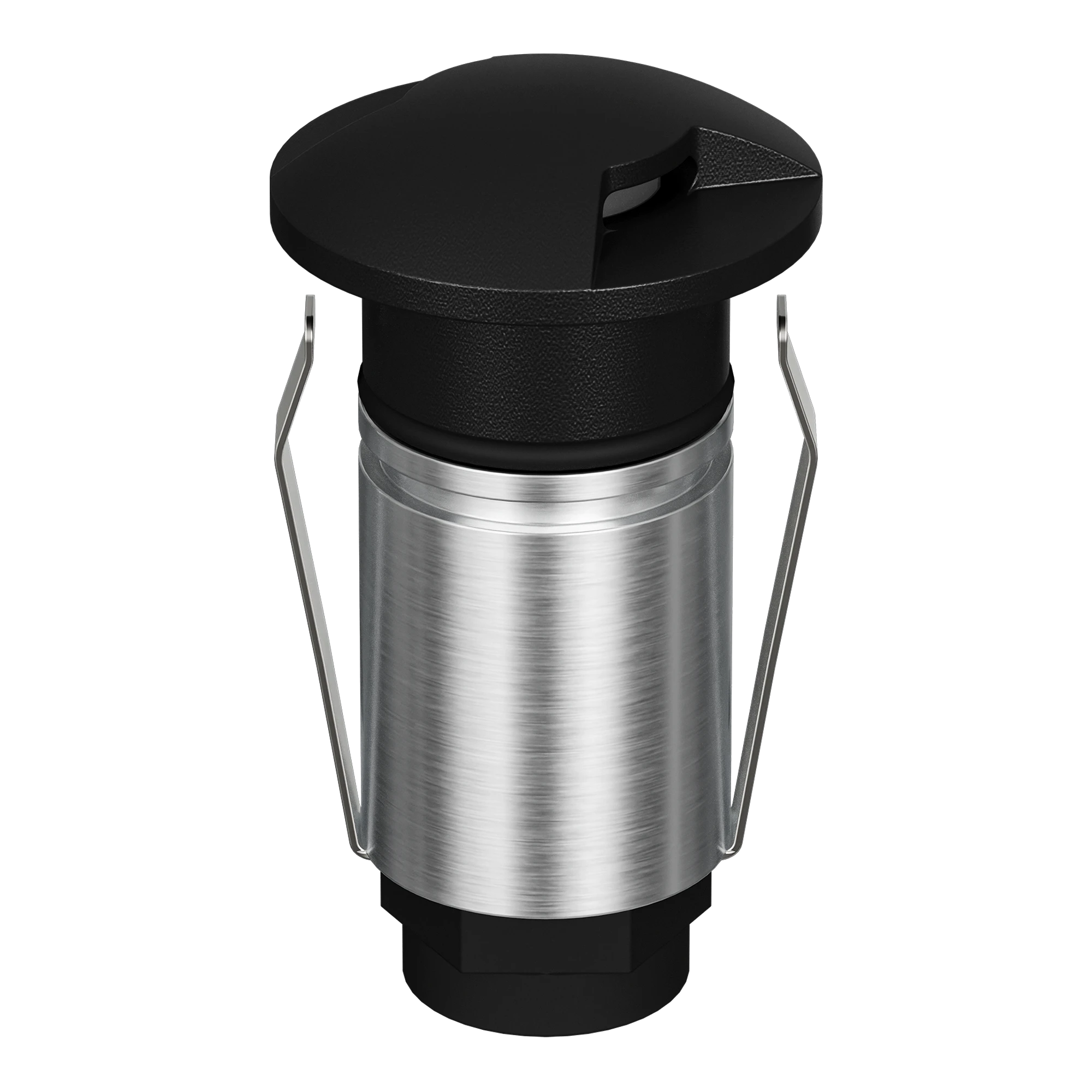

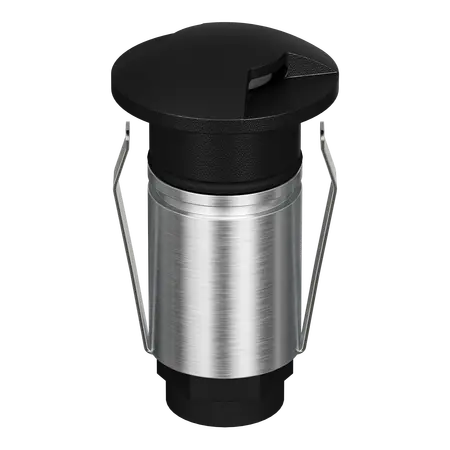

Emit Deck Light LED 25mm RGBW 12/24V 2-Way Black Fascia Domus
Domus Emit 25mm LED deck light, RGBW, 36 deg beam, 12/24V DC, 2-way fascia, black. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus Emit-25 RGBW Inground Light, 25mm RGBW Decklight, 2-Way Inground LED Light, EMIT-25-RGBW-BLK
Technical Specifications
- Variant: RGBW
- Fascia Style: 2-way
- Finish: Black
- Input Voltage: 24V DC
- Power: 1W
- Beam Angle: 36° standard; optional 19° and 60° lenses
- LED Type: CREE
- Colour Output: RGBW colour changeable
- Dimming: No
- Ingress Protection: IP67
- Impact Protection: IK10
- Lifespan: 50,000 hours
- Drive-Over Rating: 1,500 kg
- Cutout: 19 mm without canister; 24 mm with canister
- Driver Requirement: 24V DC constant-voltage LED driver, wired in parallel
- Controller Requirement: RGBW colour controller
- Dimensions (H x L x W): 45mm x 25mm x 25mm
- Weight: 0.15 kg
Key Features
- Compact 25mm mini inground and deck light
- Black 2-way fascia directs light in two directions
- RGBW colour-changing LED output
- 36° beam angle supplied as standard
- IP67 protection for outdoor and inground applications
- IK10 impact protection and drive-over suitability
- Optional 19° and 60° beam lenses, honeycomb and opal diffuser accessories
- Requires separate 24V DC LED driver and RGBW controller
- Backed by a 5-year replacement warranty
Professional Installation Requirements
- Installation should be performed by a licensed electrician. Connect to a 24V DC constant-voltage LED driver and compatible RGBW controller, with fittings wired in parallel and installed according to the manufacturer's instructions.
Applications
- Deck and pathway lighting
- Landscape and garden feature lighting
- Stair and step illumination
- Architectural feature lighting
- Outdoor inground lighting
- Drive-over areas requiring low-profile feature lights
Standards & Compliance
- AS/NZS 60598.1:2017, Luminaires - General requirements and tests, is applicable to the luminaire safety assessment
- AS/NZS 60598.2.1:2014, Luminaires - Particular requirements for fixed general-purpose luminaires, may apply to the fixed installation
Environmental Benefits
- LED technology provides efficient 1W feature illumination with lower energy consumption than equivalent halogen lighting
- 50,000-hour rated lifespan can reduce replacement frequency and associated waste
- Durable IP67 and IK10 construction supports extended service life in outdoor installations
- Metal components can be recovered through appropriate recycling streams at end of service life
Warranty Information
5-year replacement warranty as specified by Domus Lighting for the EMIT-25 RGBW series. Warranty eligibility requires installation by a licensed electrician and compliance with the manufacturer's installation guidelines.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors, subject to distributor stock levels.
