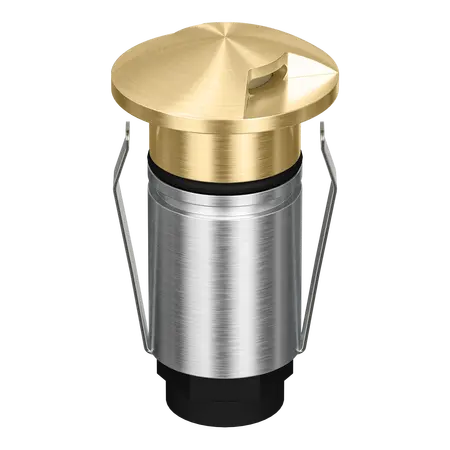

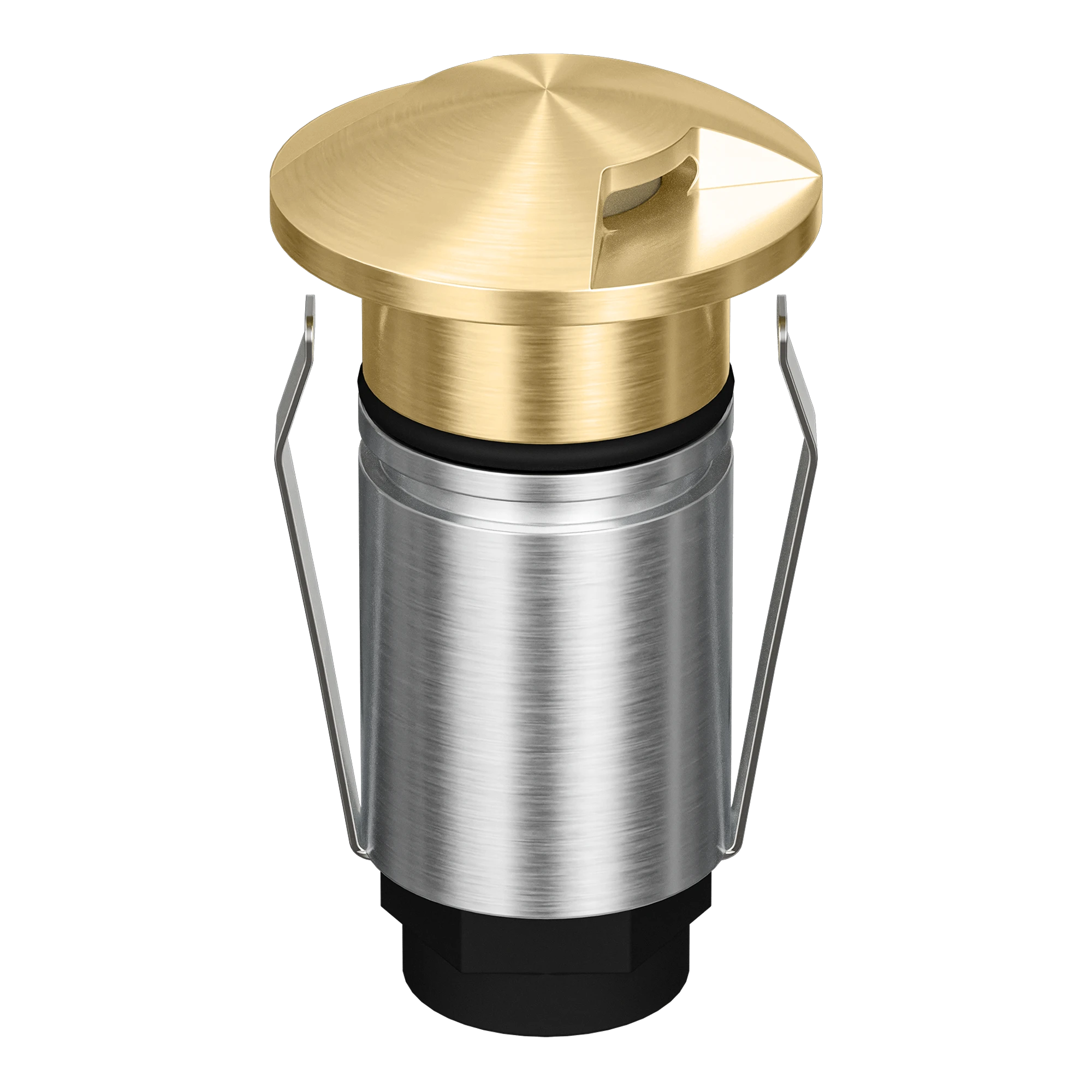

Emit Deck Light LED 25mm RGBW 12/24V 2-Way Brass Fascia Domus
Domus Emit 25mm LED deck light, RGBW, 36 deg beam, 12/24V DC, 2-way fascia, brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus Emit-25 RGBW 2-Way Inground Light, Domus 25mm RGBW Deck Light, Domus Emit Brass Recessed Ground Light
Technical Specifications
- Variant: EMIT-25-RGBW-2WAY
- Fascia: 2-way brass
- LED Output: 1W
- Input Voltage: 24V DC constant voltage
- Light Colour: RGBW colour-changing
- Beam Angle: 36° standard; optional 19° and 60° lenses
- LED Type: CREE
- IP Rating: IP67
- IK Rating: IK10
- Lifespan: 50,000 hours
- Cut-out: 19mm without canister; 24mm with canister
- Load Rating: 1,500kg drive-over
- Dimming: No
- Required Accessories: 24V constant-voltage LED driver and RGBW colour controller
- Dimensions (H x L x W): 45mm x 25mm x 25mm
- Weight: 0.15 kg
Key Features
- Compact 25mm recessed deck and inground light
- Two-way fascia directs light in opposing directions
- RGBW colour-changing output for architectural and landscape lighting
- Brass fascia suitable for decorative exterior installations
- 36° beam angle supplied as standard
- IP67-rated construction for protection against dust and temporary water immersion
- IK10 impact rating
- Drive-over rated to 1,500kg
- Compatible with optional narrow and wide beam lenses, honeycomb and opal diffuser accessories
- Requires parallel wiring to a 24V constant-voltage LED driver
Professional Installation Requirements
- Installation should be performed by a licensed electrician. Use a compatible 24V DC constant-voltage LED driver and RGBW controller, wire fittings in parallel, and install in accordance with AS/NZS 3000 and the manufacturer's installation instructions.
Applications
- Residential deck and pathway lighting
- Landscape and garden feature lighting
- Stair and step illumination
- Architectural facade and wall-washing effects
- Commercial outdoor and hospitality areas
- Drive-over inground lighting where the 1,500kg load rating is suitable
Standards & Compliance
- Applicable luminaire requirements: AS/NZS 60598.1
- Applicable ground-recessed luminaire requirements: AS/NZS 60598.2.13
- Electrical installation should comply with AS/NZS 3000
Environmental Benefits
- Low 1W power consumption reduces operating energy compared with higher-wattage exterior luminaires
- LED lifespan of up to 50,000 hours can reduce replacement frequency and installation waste
- Brass components can be recovered and recycled at end of service life
- 24V DC operation supports efficient low-voltage lighting systems
Warranty Information
Domus product information states a 5-year replacement warranty for the EMIT-25 RGBW range. The current Domus warranty statement lists exterior deck and inground lights as 3-year replacement for residential applications and 12-month replacement for commercial applications; confirm the applicable term at purchase. Warranty claims require installation by a licensed electrician and compliance with installation instructions.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors, subject to distributor stock levels.
