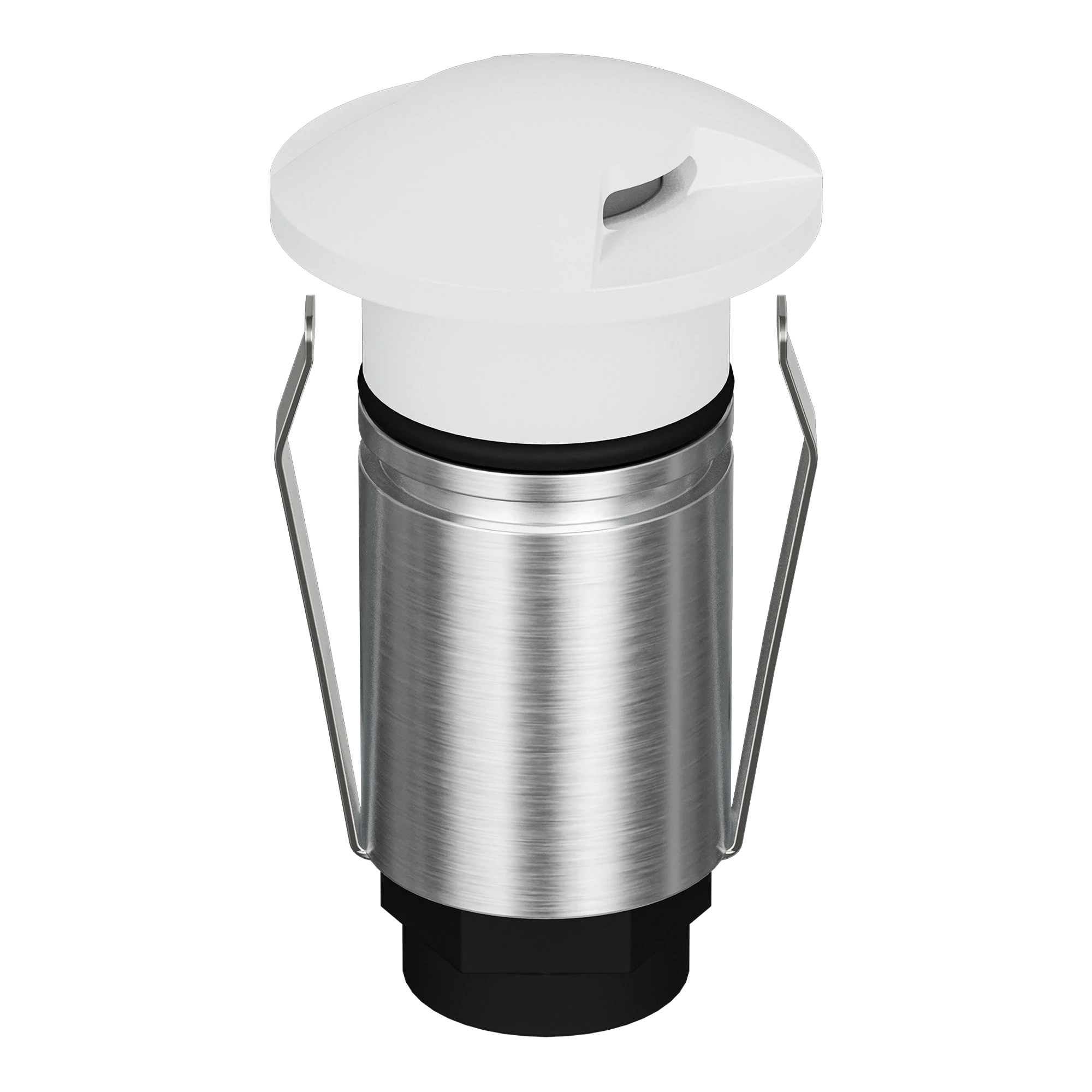

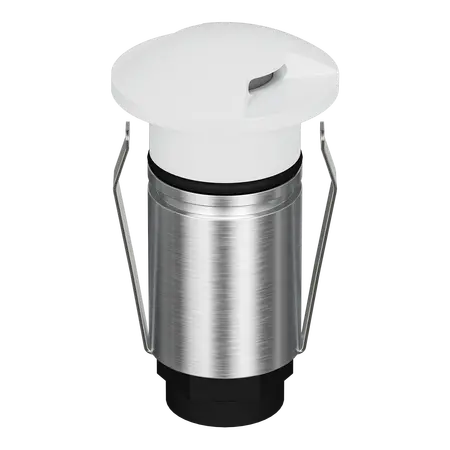

Emit Deck Light LED 25mm RGBW 12/24V 2-Way White Fascia Domus
Domus Emit 25mm LED deck light, RGBW, 36 deg beam, 12/24V DC, 2-way fascia, white. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emit 25 RGBW Inground Light, 25mm RGBW LED Deck Light, Domus Emit 2-Way Inground Light
Technical Specifications
- Variant: EMIT-25-RGBW-WHT
- Item Number: 11516
- Light Source: 1W CREE LED
- Input Voltage: 24V DC constant voltage
- Colour Output: RGBW
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Dimming: Not dimmable
- IP Rating: IP67
- IK Rating: IK10
- Lifespan: 50,000 hours
- Cutout: 19mm without cannister; 24mm with cannister
- Drive-Over Rating: 1,500kg
- Control Requirement: RGBW colour controller
- Wiring: Connect fittings in parallel
- Driver Requirement: 24V DC constant-voltage LED driver
- Dimensions (H x L x W): 43mm x 25mm x 25mm
- Weight: 0.12 kg
Key Features
- Compact 25mm diameter inground and deck light
- White 2-way fascia for directional feature illumination
- RGBW colour-changing light output
- Low 1W power consumption
- 36° standard beam angle for focused illumination
- IP67 protection for outdoor and inground applications
- IK10 impact rating and drive-over suitability
- CREE LED technology with 50,000-hour rated lifespan
- Optional lenses, honeycomb and opal diffuser accessories available
Professional Installation Requirements
- Installation should be performed by a licensed electrician. Use a compatible 24V DC constant-voltage LED driver and RGBW controller, wire fittings in parallel, and install the electrical equipment in accordance with AS/NZS 3000:2018 and the manufacturer's instructions.
Applications
- Residential and commercial deck lighting
- Landscape and garden feature lighting
- Pathway and stair lighting
- Architectural feature illumination
- Inground and drive-over outdoor lighting
- RGBW accent lighting installations
Standards & Compliance
- Installation should comply with AS/NZS 3000:2018 Electrical installations, including requirements applicable to extra-low-voltage lighting systems.
- The luminaire is applicable to the AS/NZS 60598 series for luminaires; product-specific certification was not identified in the available manufacturer documentation.
Environmental Benefits
- Low 1W LED power consumption can reduce operating energy compared with higher-wattage feature lighting.
- 50,000-hour rated LED lifespan can reduce replacement frequency and associated waste.
- IP67 and IK10 construction supports longer service life in outdoor environments, reducing premature product disposal.
Warranty Information
5-year replacement warranty stated by Domus Lighting for the EMIT-25 RGBW range. Warranty claims require installation by a licensed electrician and compliance with the manufacturer's installation instructions and warranty terms.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
