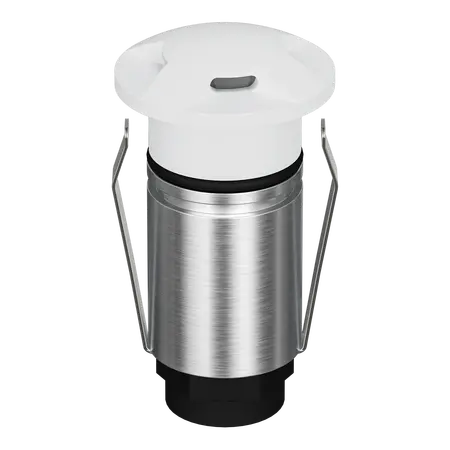

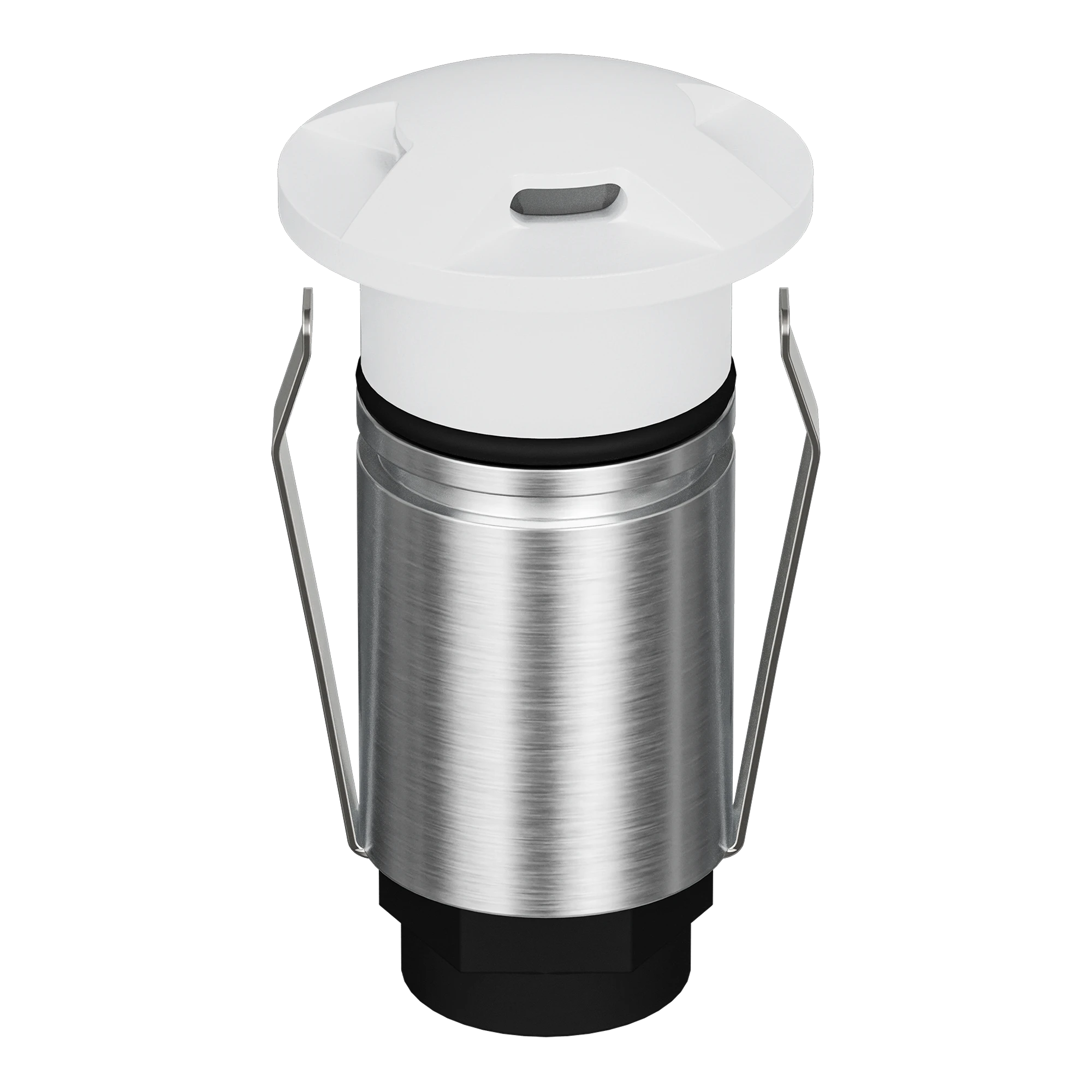

Emit Deck Light LED 25mm RGBW 12/24V 3-Way White Fascia Domus
Domus Emit 25mm LED deck light, RGBW, 36 deg beam, 12/24V DC, 3-way fascia, white. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-25-RGBW-WHT, Domus Emit 25 RGBW Inground Light, 25mm RGBW Deck Light, Mini Inground LED Light
Technical Specifications
- Variant: EMIT-25-RGBW-WHT
- Item Number: 11517
- Light Source: 1W CREE LED
- Input Voltage: 24V DC constant voltage
- Colour Output: RGBW
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Ingress Protection: IP67
- Impact Protection: IK10
- Dimming: No
- LED Lifespan: 50,000 hours
- Load Rating: 1,500kg drive-over
- Cutout: 19mm without canister; 24mm with canister
- Driver Requirement: 24V DC constant-voltage LED driver, wired in parallel
- Controller Requirement: RGBW colour controller
- Fascia Finish: White
- Body Material: Stainless steel housing with white fascia
- Dimensions (H x L x W): 43mm x 25mm x 25mm
- Weight: 0.15 kg
Key Features
- Compact 25mm three-way inground and deck light
- RGBW colour-changing output for feature and architectural lighting
- 1W CREE LED source with a standard 36° beam
- IP67-rated construction for outdoor and inground applications
- IK10 impact rating and 1,500kg drive-over load rating
- 50,000-hour rated LED lifespan
- Optional 19° and 60° beam lenses, honeycomb and opal diffuser accessories
- Requires a separate 24V constant-voltage LED driver and RGBW controller
- Suitable for landscape, pathway, stair and deck lighting
Professional Installation Requirements
- Installation and connection to the LED driver and RGBW controller should be performed by a licensed electrician in accordance with manufacturer instructions and AS/NZS 3000. Use only a compatible 24V DC constant-voltage driver.
Applications
- Residential and commercial deck lighting
- Inground landscape and garden lighting
- Pathway and stair illumination
- Architectural feature lighting
- Drive-over outdoor lighting installations
- RGBW accent and colour-changing lighting systems
Standards & Compliance
- AS/NZS 60598.1:2017 - applicable general safety requirements for luminaires
- AS/NZS 3000:2018 - applicable wiring and installation requirements
Environmental Benefits
- Low 1W power consumption supports efficient feature lighting installations
- 50,000-hour LED lifespan can reduce replacement frequency and waste
- Stainless steel and metal components are recyclable at end of service life
- Low-voltage 24V DC operation is suitable for efficient, controlled outdoor lighting systems
Warranty Information
5-year replacement warranty stated by Domus Lighting, subject to the product being purchased through an authorised distributor, installed by a licensed electrician and used in accordance with the installation requirements. Warranty is in addition to rights under Australian Consumer Law.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
